Fully-Automatic Pensky Martens Closed Cup Flash Point Measuring Instrument ASTM D93

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Power Source：AC220V
  • Product Name：Fully-Automatic Pensky Martens Closed Cup Flash Po
  • Standard：ASTM D93
  • Test Sample：Gasoline, Jet Fuel, Diesel, Lubricating Oil etc.
  • Temperature Range：Ambient~250 Celsius
  • Ignition Mode：Automatic

Base Info

  • Model NO.：GD-261D
  • Temperature Display：Color LCD
  • Printing：Yes
  • Comminication Port：Yes
  • Sample Cup：Standard Oil Cup
  • Dimension：520*360*310mm
  • Transport Package：Wooden Case Gd-261d
  • Trademark：gold
  • Origin：China
  • Production Capacity：100 Piece,Pieces Per Month

Description

Product nameFully-automatic Pensky Martens Closed Cup Flash Point Measuring Instrument  ASTM D93Power supplyAC(220±10%)V,50HzFlash point determinationRange: Ambient to 300ºC
Repeatability: ≤3ºC
Reproducibility:≤6ºC
Accuracy:0.1ºCHeating rateProcedure A: (5~6)ºC/min, Procedure B: (1~1.6)ºC/min
Automatic control and manually adjustableStirring rateProcedure A: (90~120)RPM, Procedure B: (250±10)RPM
Automatic control and manually adjustableIgniting modeElectric ignition. Gas flame diameter:3.2mm~4.8mmWorking conditionAmbient temperature:(10~40)ºC
Relative humidity:≤80%Maximum power consumption500WDimension520*360*310m

More Closed Cup Flash Point ApparatusGaoline, jet fuel, kerosene, diesel, gas turbine liquid, solvent oil, lubricating oil, insulating oil, fuel oil , petroleum wax, electricoil, biodiesel, etc.Colored paints, oil paints, adhesives, Solvents and petroleum productsTemperature rangeAmbient~300ºCAmbient~250ºCAmbient~300ºC-30ºC~50ºCIgnition modeManual Manual AutomaticManualTemperature displayThermometerColor LCDColor LCDLCDprintingNOYESYESYESCommunication portNONOYESNOSample cupStandard oil cupStandard oil cupStandard oil cup2mlDimension370*320*300mm410*360*310mm520*360*310mm370*280*280mm

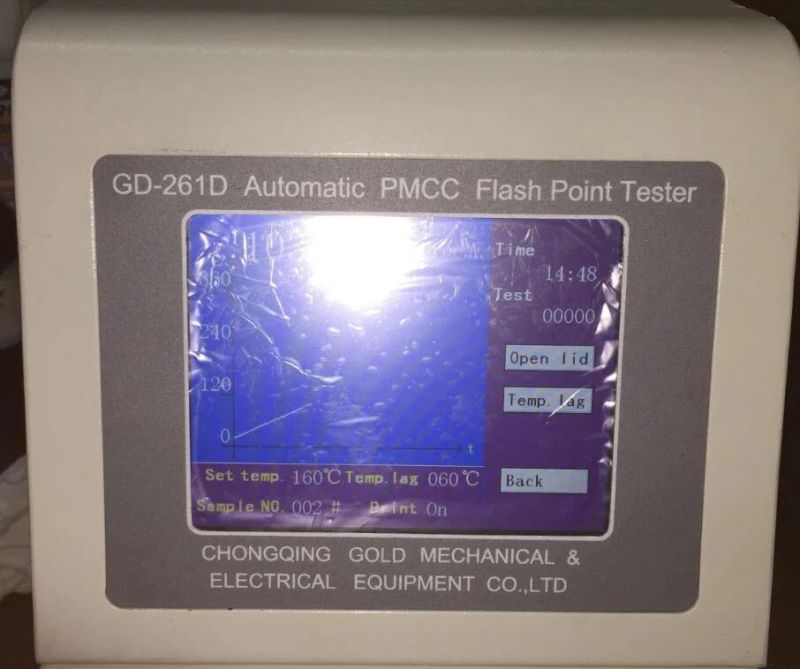

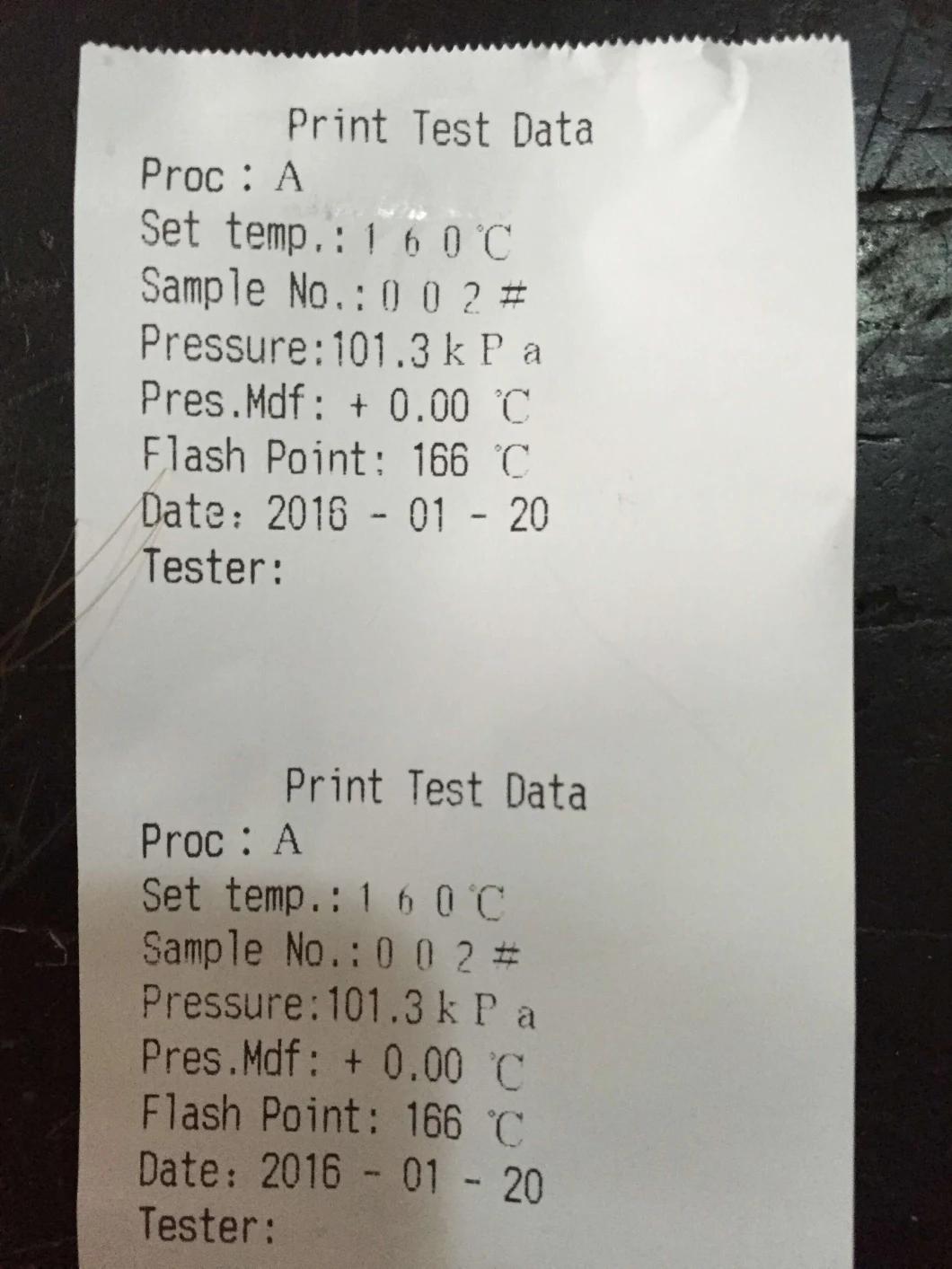

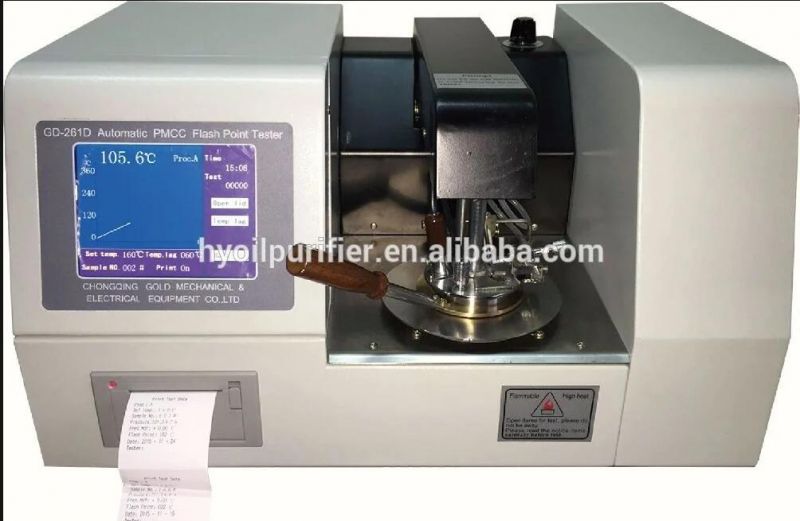

Detail Images:

Fully-Automatic Pensky Martens Closed Cup Flash Point Measuring Instrument ASTM D93
Fully-Automatic Pensky Martens Closed Cup Flash Point Measuring Instrument ASTM D93

Fully-Automatic Pensky Martens Closed Cup Flash Point Measuring Instrument ASTM D93

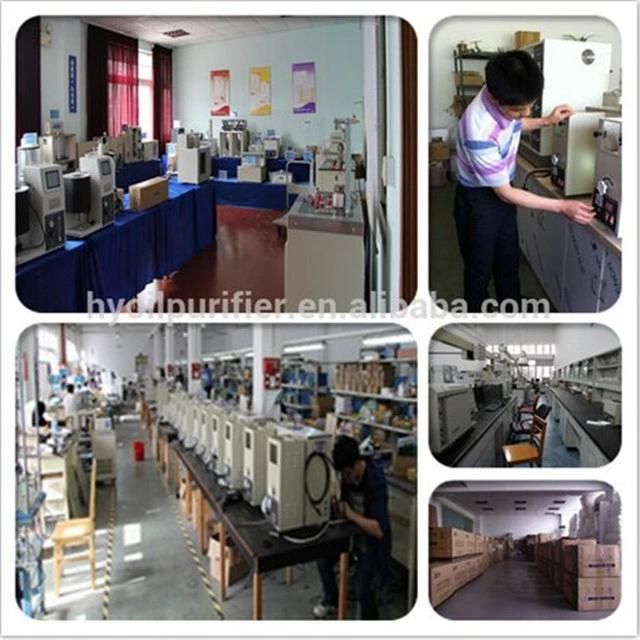

Company  Information:

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .

Fully-Automatic Pensky Martens Closed Cup Flash Point Measuring Instrument ASTM D93

Fully-Automatic Pensky Martens Closed Cup Flash Point Measuring Instrument ASTM D93
