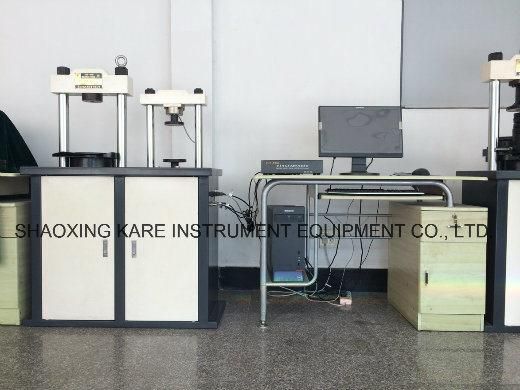

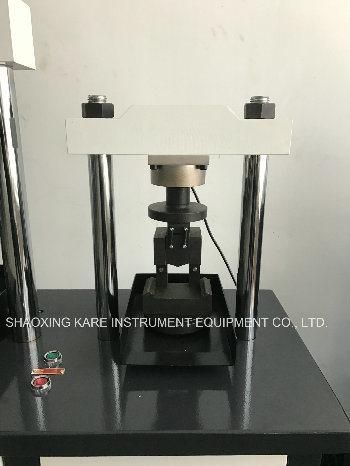

Electro-Hydraulic Servo Cement Flexure and Compression Testing Machine (YAW-300D)
SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.- Type:Compression Testing Machine
- Maxcapacity:300kn
- Accuracy Grade:1
- Display:Computer
- Control:Computer Control
- Weight:450kg
Base Info
- Model NO.:YAW-300D
- Power Source:AC380V
- Oil Cylinder Position:Under
- Test Kind:Cement Compression and Cement Flexure
- Transport Package:Wooden Case
- Origin:Zhejiang
- HS Code:9024800000
- Production Capacity:40 Sets,Month
Description
Basic Info.
Model NO. YAW-300D Power Source AC380V Oil Cylinder Position Under Test Kind Cement Compression and Cement Flexure Transport Package Wooden Case Origin Zhejiang HS Code 9024800000 Production Capacity 40 Sets/MonthProduct Description
1. Use"YAW-300D electro-hydraulic servo cement flexure testing machine and compression testing machine, cement bending compressive machine CTM, pressure testing machine" is used for testing the flexure strength and compression strength of cement mortar, it is in line with GB/t17671-1999 standard. It adopts duplex test room design.
2. Charateristics
"yaw-300d electro-hydraulic servo cement flexure testing machine and compression testing machine, cement bending compressive machine ctm, pressure testing machine" adopts computer control and the control modes of isodromic test force, test force keeping, etc. It has the management functions such as automatic acquiring and saving the test data and curve, database. It is equipped with a network port, can be updated and connected to the network cenetre. It has the advantages such as high accuracy, good stability, compact structure, easy operating, etc. It confirms with teh requirements of GB/t 3722-92, GB/t2611-92.
Max. test force | compression 300KN, flexure 10KN |
Measuring range | 4%-100%F.S. |
Relative error to force value | ±1% |
Conrol lading rate range | compression 0.1-10KN/s, flexure 0.5-200N/s |
Lading rate error (no higher than) | ±5% |
Lead screw stroke | compression 80mm, flexure 80mm |
Distance between upper and lower platen | 300mm |
Motor power | 0.75kW |
Main frame dimension | 940×580×1460mm |
Weight | 450Kg |
