• Model NO.：HMSLQ
• Power：220V
• Customized：Customized
• Transport Package：Wooden Box with Foam Inside
• Specification：1600(L) * 1260(W) * 1700mm (H)
• Trademark：GDHM
• Origin：Hubei, China(Mainland)
• HS Code：9030899090
• Production Capacity：200sets,Year

Basic Info.

Model NO. HMSLQ Power 220V Customized Customized Transport Package Wooden Box with Foam Inside Specification 1600(L) * 1260(W) * 1700mm (H) Trademark GDHM Origin Hubei, China(Mainland) HS Code 9030899090 Production Capacity 200sets/Year

Product Description

1000a primary current injection test set for circuit breaker

Overview
Primary current injection test set is a necessary equipment for all walks of life need large current place in electrical commissioning, used in power plants, substations, electrical manufacturing factory and scientific research laboratory, and other units, which belongs to the short-time or intermittent work system, HMSLQ series high current generator produced by our company has the characteristics of stable performance, convenient maintenance etc.

Product structure

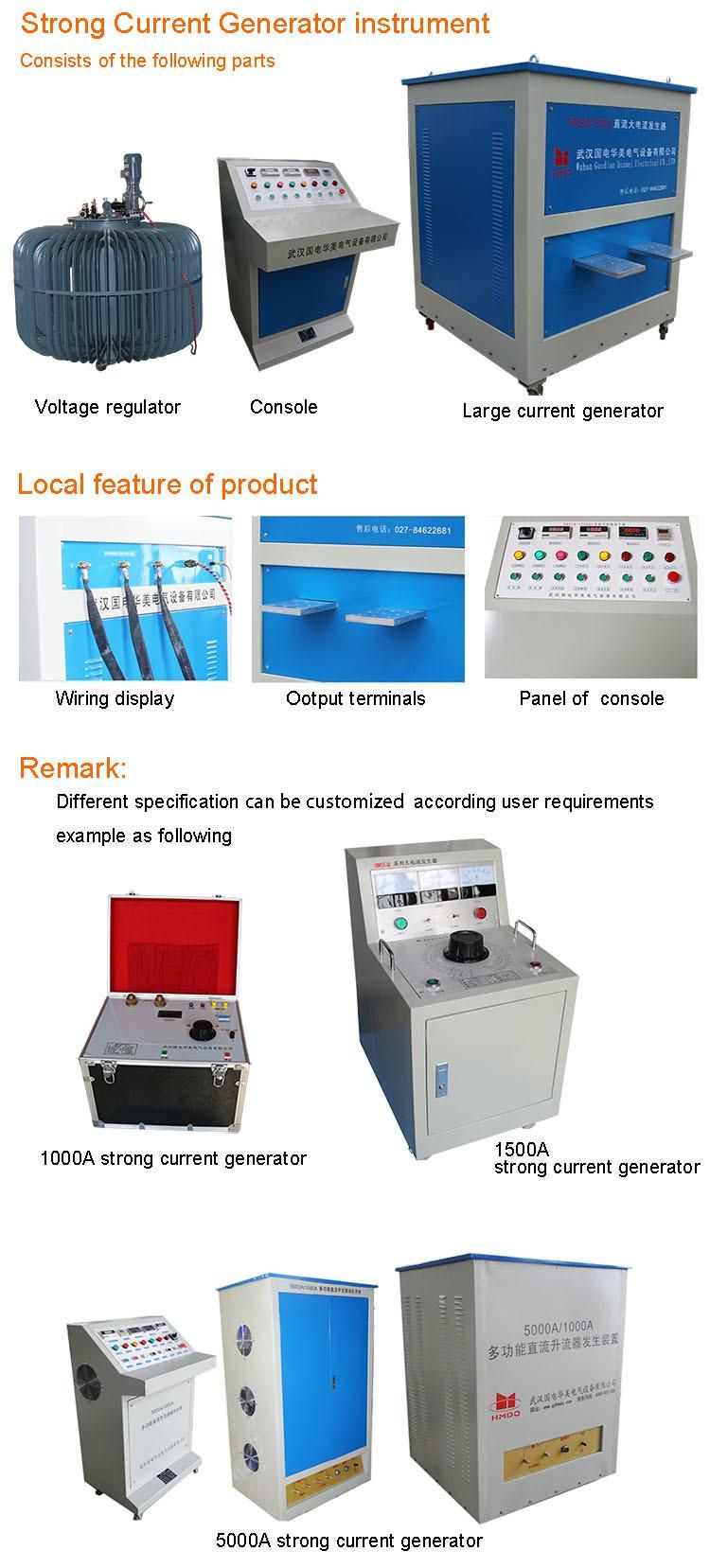

The structure of the primary current test set is divided into three parts:Console and low voltage high current generator, electric induction voltage regulator.From the low voltage high current generator output wiring lead test products, through the low voltage high current generator on the current transformer and console on the ammeter, voltmeter, indicator, button to measure, monitor and operate


Detailed Image










HMSLQ-15000A  primary current injection test set

Technical parameter
1.Controller:-Input voltage 3-phase 4 wire  380V
- Output voltage:380V/ single phase
- Dimension 800 (L) * 700 (W) * 1200mm (H)
- Weight:75kg
2.Electric self coupling voltage regulator:- Input voltage 380V/ single phase
- Output voltage 0~650V/ single phase
- Dimension 1300(L) * 680(W) * 1850mm (H)
- Weight:1000kg
3.High current generator:- Input voltage 0~600V
- Output voltage DC 15V
- Output current 15000A
- Dimension 1600(L) * 1260(W) * 1700mm (H)
- Weight 1500kg
