Stability Universal Dust Test Chamber for Testing Electronic Products

Guangdong Yuanyao Test Equipment Co., Ltd.
  • Max Diameter of Workpiece：700mm
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Maxcapacity：N,a
  • Accuracy Grade：0.5
  • Load Way：Electronic Load

Base Info

  • Model NO.：YSDT-1000-C
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Controller
  • Weight：100-500Kg
  • Power Source：AC220V
  • Oil Cylinder Position：N,a
  • Internal Size(mm)：1000*1000*1000
  • Testing Type：IEC60529
  • Testing Temp.：20 Degree Celsius +,- 15 Degree Celsius
  • Concentration of Dust：Above5000 Mg , M3
  • Humidity Range：45%Rh-85%Rh
  • Swirl Time：No
  • Material：Stainless Steel
  • Warranty：12 Month
  • Flow Rate of Dust：5m,S
  • Total Time：2h
  • Transport Package：Well Packed in Strong Plywood Cases.
  • Specification：CE, SGS, TUV certified.
  • Trademark：Yuanyao
  • Origin：Guangdong, China
  • HS Code：9032100000
  • Production Capacity：100 Sets , Month

Description

Dust-proof Test ChamberModelYSDT-512-CYSDT-1000-CYSDT-1500-CInner chamber size W×H×D(cm)80×80×80100×100×100100×100×150External chamber size W×H×D(cm)130×170×120150×190×140150×190×190Time setting range0~999h adjustableTemperature setting rangrRT+10~50ºCTest dustTalcum powderDust dosage2~4kg/m³Vacuum degree0~10.0KPa,,adjustableDust reduction methodFree dust fallingControllerProgrammable touch screen controllerVacuum systemEquipped with pressure gauge, air filtration, pressure regulation, connecting pipe,
 vacuum pumpCirculation fanLow noise , multi-blade centrifugal fanProtective deviceLeaksge protection, short circuit proectionDust heating systemStainless steel heating tubeMaterialInner chamberCold rolled sheet with power coatingExternal chamberSUS#304 Stainless steel plateOther componentsWiper, caster adjusterPower supplyAC 1ψ 220V,3ψ 380V 60/50Hz,Customization serviceNo-standard or special requirements are all welcome

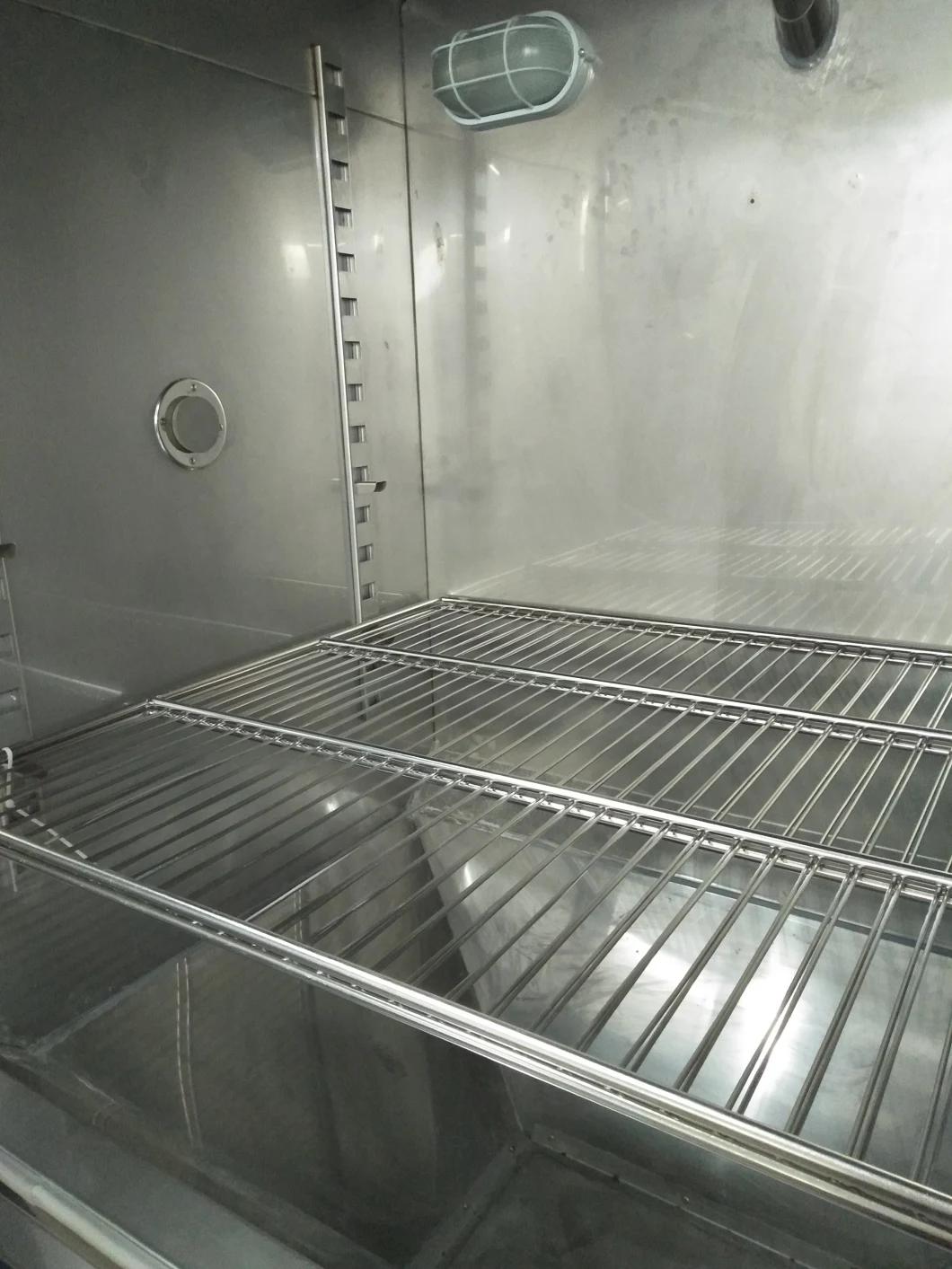

Detailed images

Stability Universal Dust Test Chamber for Testing Electronic Products



Stability Universal Dust Test Chamber for Testing Electronic Products

Stability Universal Dust Test Chamber for Testing Electronic Products


In addition to dust-proof test chamber, we are also manufacturing:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal
Shock Tester, Liquid Thermal Shock Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration
Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester,
Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Stability Universal Dust Test Chamber for Testing Electronic Products

Company profile

Stability Universal Dust Test Chamber for Testing Electronic Products
Stability Universal Dust Test Chamber for Testing Electronic Products
Stability Universal Dust Test Chamber for Testing Electronic Products
Stability Universal Dust Test Chamber for Testing Electronic Products
Stability Universal Dust Test Chamber for Testing Electronic Products

Stability Universal Dust Test Chamber for Testing Electronic Products
If you want to know more about the salt spray test chamber,please feel free to contact us.
Welcome to inquiry !
