• Model NO.：Stye-3000e
• Control：Computer Control
• Weight：>2000Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Product Name：3000kn Compressive Strength Testing Machine
• Max.Testing Power：3000kn
• Measuring Range：0-3000kn
• Distance Between Plates：380mm
• Max,Piston Stroke：300mm
• Diameter of The Piston：Diameter 310mm
• Reated Pressure of The Hydraulic Pump：40MPa
• Power：AC220V,AC380V
• Main Frame：600X600X2240
• Control Console：1050X650X860mm
• Transport Package：Export Standard Wooden Case
• Specification：1.5cbm
• Trademark：YUFENG
• Origin：China
• HS Code：9031809090
• Production Capacity：500pieces,Month

Basic Info.

Model NO. Stye-3000e Control Computer Control Weight >2000Kg Power Source AC220V Oil Cylinder Position Under Product Name 3000kn Compressive Strength Testing Machine Max.Testing Power 3000kn Measuring Range 0-3000kn Distance Between Plates 380mm Max,Piston Stroke 300mm Diameter of The Piston Diameter 310mm Reated Pressure of The Hydraulic Pump 40MPa Power AC220V,AC380V Main Frame 600X600X2240 Control Console 1050X650X860mm Transport Package Export Standard Wooden Case Specification 1.5cbm Trademark YUFENG Origin China HS Code 9031809090 Production Capacity 500pieces/Month

Product Description

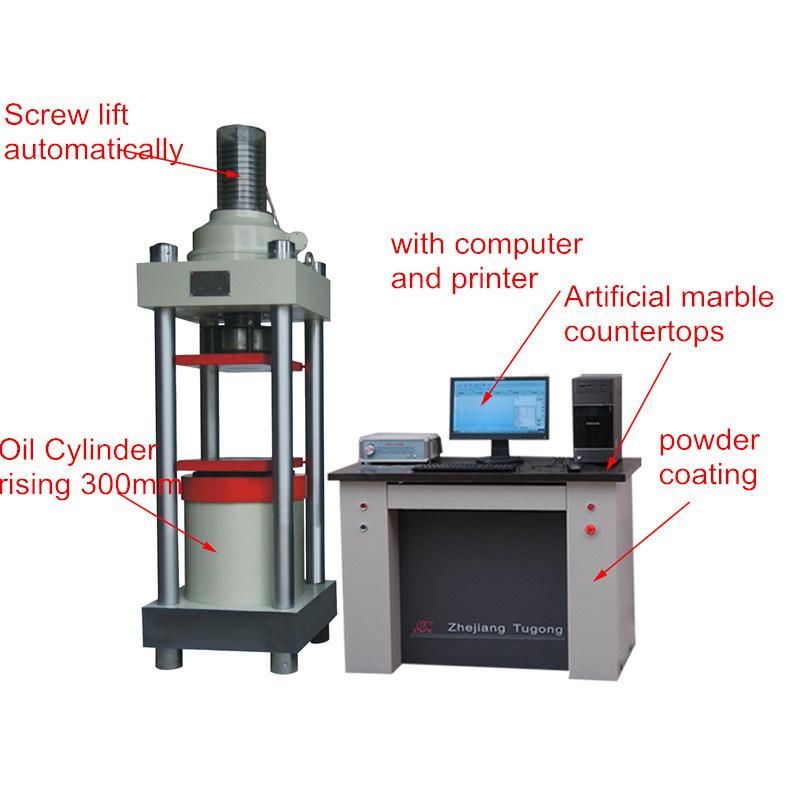

Product Description:STYE-3000E 3000KN Compressive Strength Testing Machine
Use:
Computer controlled hydraulic servo compression testing machine is mainly used to test compression strength of cement, concrete, rocks, brick. they also can perform shear test, anti-break test and elastic modules test of concrete with special compression fixtures and measurement assembly.
Space adjusting, & test processes could be controlled by the software and the test result could be transferred to the software in the computer for further analysis. It is the most advanced series in hydraulic compression
testing machines. It is widely used in different steel works, engineering areas, quality control department, Universities and institutes as well
as other areas and works.
Fully computer controlled testing process. Stable and reliable high intensity structure load frame. Real time display software will provide accurate track of testing process. Powerful multifunctional control software will provide more testing methods and standards.Overload protection will secure operators.Safe and reliable software interface and control. It is very easy to prevent mistake operation duringthe test stage
which will cause damage to the testing machine. Easy and fast to edit customized test reports in EXCEL format.
Parameters:
Max. Testing power: 3000KN
Measuring range: 0-3000KN
Relative indication error: ±1%
Max. distance between the up and down
bearing plates: 380mm
Max. piston stroke: 300mm
Diameter of the piston: Φ310mm
Rated pressure of the hydraulic pump: 40Mpa
Power: AC380 or AC220V±5% 50Hz
Main frame: 600×600×2240mm
Control console: 1050×650×860mm
Max. piston lift speed: 50mm/min.
Piston free back speed: 20mm/min.
Net weight: about 2250KGS
Noise: ≤80Db

Why choose us:
a.Full range products, offer you one-stop purchase, save your time, save your delivery cost.


b. Good quality control


c.Competitive price, save your money.

d. We are factory


FAQ:
1.Are you factory?
    Yes,we are factory ,35years focusing on test instruments field.
2.Delivery Time?
    10-15working days after receiving full payment.
3.What 's your payment terms?
     We accejpt T/T,L/C or Western Union.
4.What's your terms of trade?
     We accept EXW, FOB, CNF, CIF, AND SO ON.
5.Warranty?
     12months.
6.Do you have any exhibitions?
    Yes. We have many exhibitions in domestic and abroad. If you come to china, pls contact           with us, we will inform you the newest  booth No.
7.Our products need to be tested by a special testing machine, do you accept customized?
    Sure. We accept all chanllges.Send us an inquiry and we will contact you soon!
If you want to know more,pls view our official website:cnzjtg.en.made-in-china.com
