• Model NO.：HZSD-29
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Power Supply：240V,100W
• Name：Oil Colorimeter
• Keyword：Colorimeter
• MOQ：1

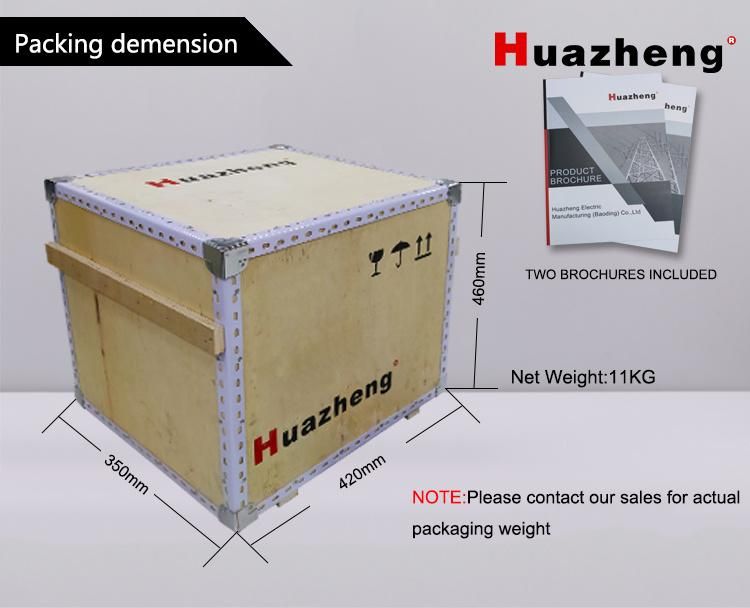

• Transport Package：Box
• Specification：ISO,CE
• Trademark：HuaZheng
• Origin：Baoding, Hebei
• HS Code：9027809900
• Production Capacity：500,Month

Basic Info.

Model NO. HZSD-29 Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Power Supply 240V,100W Name Oil Colorimeter Keyword Colorimeter MOQ 1 Transport Package Box Specification ISO/CE Trademark HuaZheng Origin Baoding, Hebei HS Code 9027809900 Production Capacity 500/Month

Product Description

Lab Portable ASTM D1500 Digital Lubricating Oil Color Meter Price
I.INTRODUCTION

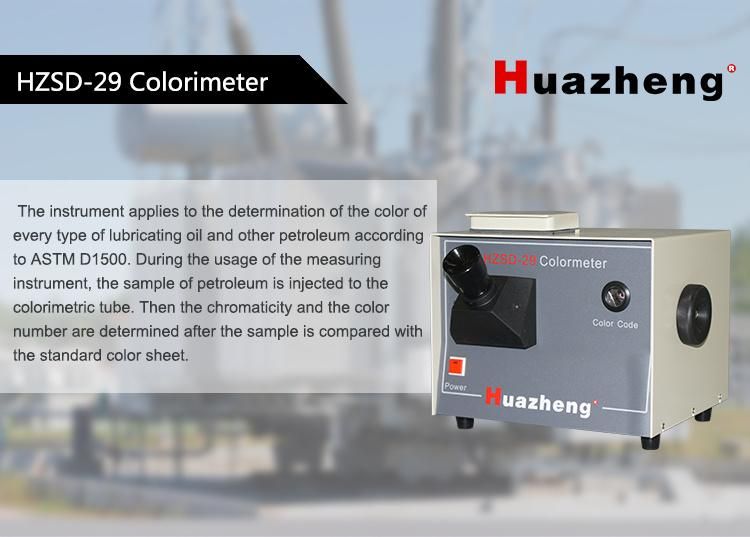

The instrument applies to the determination of the color of every type of lubricating oil and other petroleum according to ASTM D1500. During the usage of the measuring instrument, the sample of petroleum is injected to the colorimetric tube. Then the chromaticity and the color number are determined after the sample is compared with the standard color sheet.

II.MAIN TECHNICAL INDICATORS
Power Supply: 240V,100W as well as the milk-shell bulb with dull-polished lining with the temperature as 2750±50K.
Colorimetric Tube: Colorful flat-bottom glass tube with its inner diameter as Φ32.5~Φ33.4mm and its height as 120~130mm.
Standard Color Disk: 26 light holes with the diameter asΦ14, including 25 of them containing glass sheet of which the color number ranges successively and respectively from 1 to 25. The 26th hole is blank.

III.COMPOSITION OF THE INSTRUMENT
The instrument consists of standard light disk, optical lenses for observation, light source and colorimetric tube.
The color is filtered after the source light goes through the milky glass sheet and sunlight-filtering glass sheet. The features of the spectrum of the gotten standard light are similar to that of the north light. Two parallel beams of light are composed after the standard light goes through the plane reflecting mirror and prisma. These two beams of light share the same size and shape, and simultaneously and equally illuminate the colored glass sheet of the standard color disk and the sample in the colorimetric tube.
The standard color disk contains 26 light holes with the diameter asΦ14. Rotate the rotating-hand-wheel of the standard color disk on the right side of the instrument so that the sample fluid can choose the right corresponding color in the experiment of color comparison.
 Colorimetric tube is put inside through the position of the small lid at the top of the instrument.

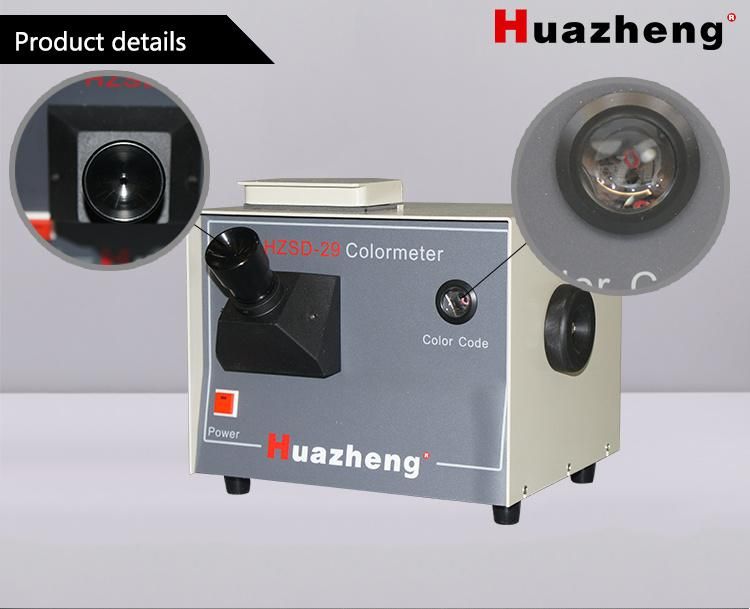

  Observation ocular lens consists of convex mirror and concave mirror. Optical ocular lens has the capabilities of adjusting the beam of light and focusing.

No.	Item	Qty
1	Main engine	1
2	Colorimetric Tube	2

IV.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.


 V.Customer Visit



VI.Exhibition

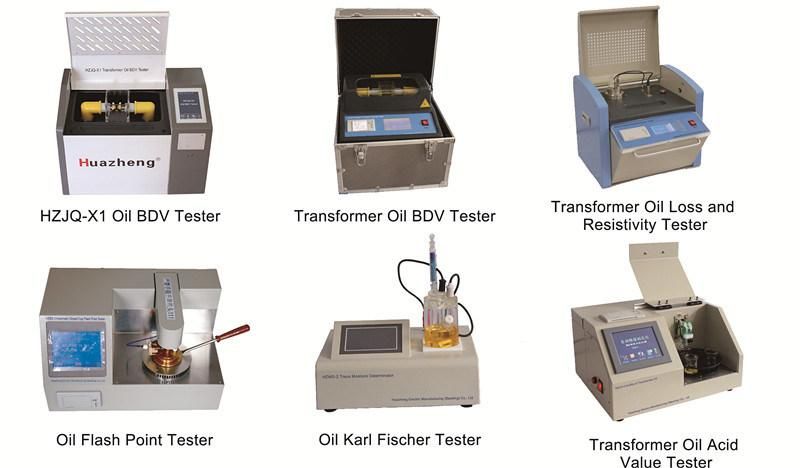

VII.Similar Recommendation
