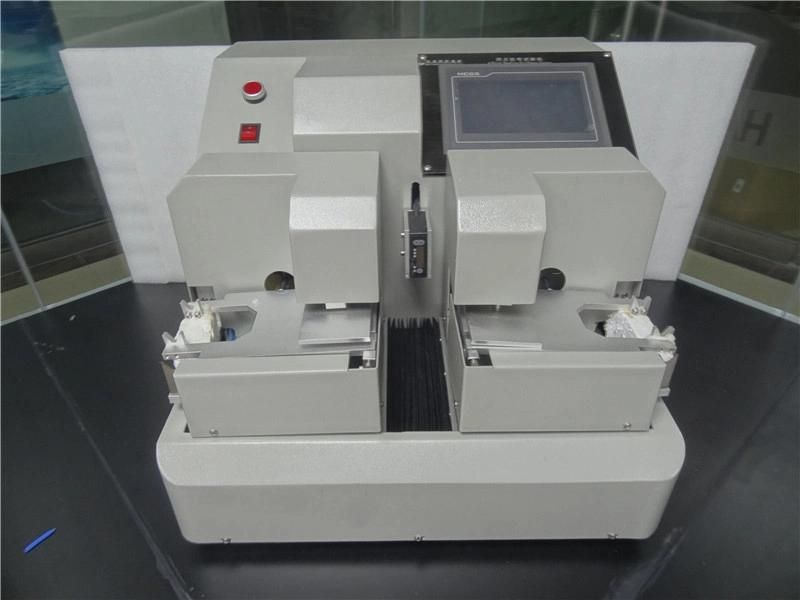

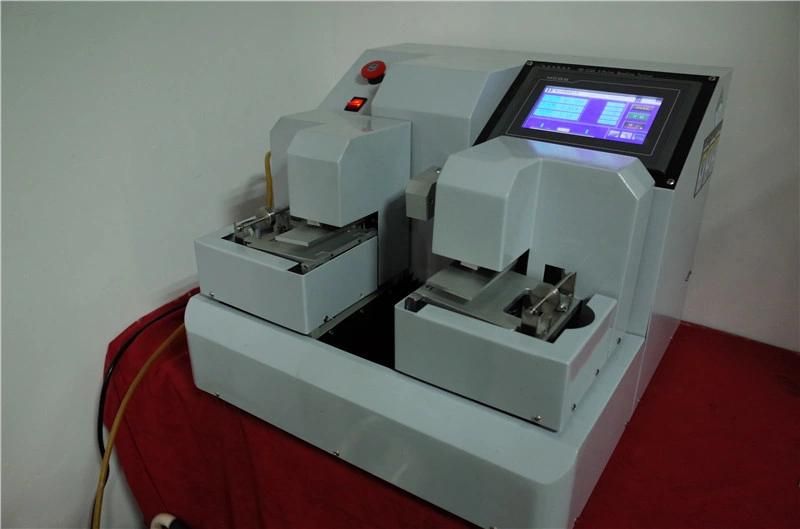

Paper Board Four Point Bending Stiffness Test Equipment

Dongguan Haida Equipment Co., Ltd.
  • Type：Bending Testing Machine
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Display：Digital
  • Control：Computer Control
  • Weight：100-500Kg

Base Info

  • Model NO.：HD-A544
  • Power Source：AC220V
  • Standards：Tappi, ISO, ASTM
  • Maximum Capacity：200kg
  • Warranty：1 Year
  • Delivery Time：Within 15 Days
  • Application Standards：DIN 53 121, ISO 5628, Scan P65, Tappi T820
  • Control Method：PLC Control
  • Result Output：USB Flash Drive - Print out The Image File
  • Maximum Sample Width：100 mm
  • Voltage：110,220V AC, 250W
  • Compressed Air：6 Kg,Cm2
  • Transport Package：Packed in Wooden Cases
  • Specification：ce
  • Trademark：HD
  • Origin：China
  • HS Code：9024800000
  • Production Capacity：100 Set Per Month

Description

Applicable StandardsDIN 53 121, ISO 5628, SCAN P65, TAPPI T820, TAPPI T836StatisticsMean Value, Standard Deviation, Coefficient of variation, max and min values of the series, MD/CD ratio, Geometrical mean of MD and CDTest pieceThe sample size depends on board type, normally 50-100 mm (2-4 in) wide and bending length at least 120 mm (4.7 in) longer than chosen bending length. Maximum thickness is 16 mm (0.6 in)FixturePneumatic clamping effectively eliminates any problems with twisted and curled test piecesControl MethodPLC controlResult OutputUSB Flash Drive - Print Out the Image File
Tabular or graphical presentation of resultConnectionUSB interface (Optional)Instrument1.Bending length :50, 100, 150, 200 or 300 mm (2, 4, 6, 8 or 12 in)
2.Dear Weights:20 -1020 g(0.044-2.25lb )Measurement0.5-500 Nm (4.5-2770 lbf × in)Measurement ToolsLaser Displacement Detector
P.S non contact device to measure the deflection of the paper board, this can eliminate any un-expected loading onto the paper board

Product features:
1) This tester is to measure the resistance of the test piece offer to bending, in the region of elastic deformation.
2) The tester is suitable for corrugated paper board (Flute A, B, C, D & E)
3) A precise sensor measure the linear deflection caused by bending display on the screen and send to the micro-processor for calculation through the communication port.
4) Automatic zero set point of the transducer compensate various thickness of the paper board.
5) Length of paper board is adjustable from 50 to 300 mm. Make use of a stepping motor, left/right turn ball screw, the change of paper board length is much easier, the required length can be set and automatically done by the machine.


Product advantages:
1. Since we are using pneumatic clamping plate to fix the test board, small warp, twist or curl of the board is no longer a problem in the test. This is also the reason to choose 4-point bending method to test the paper stiffness instead of other methods such as 2 point and 3 point bending.
2. Length of the test board is one of the critical factor to affect the test result, HD-A546 give you an automatic solution. Operator use one button to widen or shorten the opening gap between the clamping plate, when your designated width approach, data can automatically write into the computer for calculation, accuracy up to 0.1mm
3. Use non contact device to measure the deflection of the paper board, this can eliminate any un-expected loading onto the paper board such as spring load or weight of the measuring probe. The new feature of HD-A546 increases the credibility of the test result.
4. No matter the thickness of the samples, HD-A546 equipped with an intelligent detector to get the zero reference point. Test becomes more convenience.
5. The test report prints out use conventional office printer. Thermal paper no longer use. Text and graphic printed on the thermal paper can not last long, it will fade out when time pass. Therefore use common typing paper let the file keep much longer.
6. Shear force (one of a uncertainty) in this test method has been overcome by applying special mechanism on the clamping plate.

Test standard: ISO 5628

Paper Board Four Point Bending Stiffness Test Equipment

Paper Board Four Point Bending Stiffness Test Equipment
