• Model NO.：63-L0028
• HS Code：90248000
• Production Capacity：10000PCS,Year

Basic Info.

Model NO. 63-L0028 HS Code 90248000 Production Capacity 10000PCS/Year

Product Description

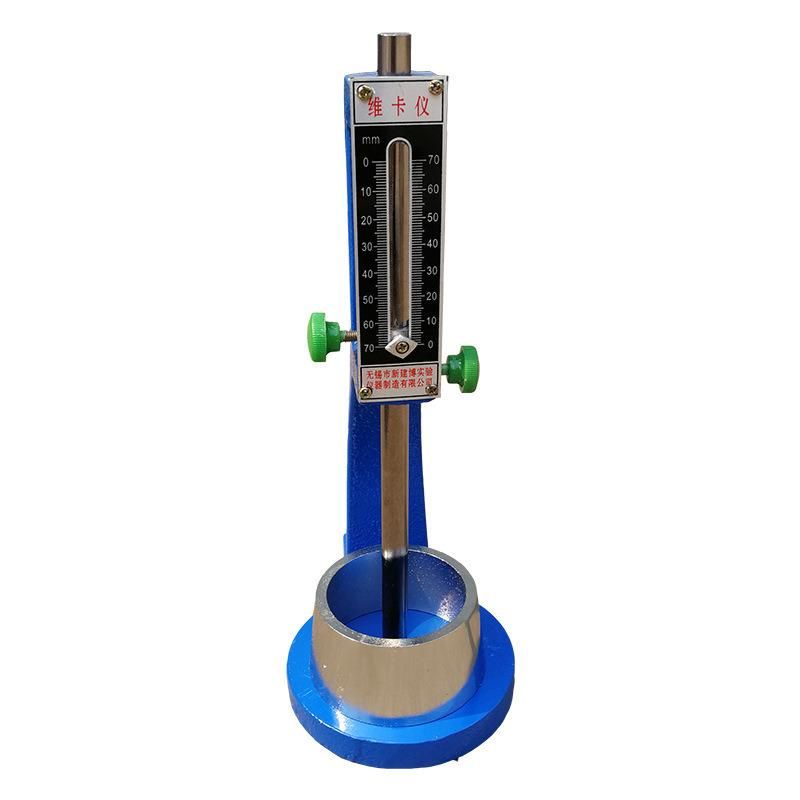

63-L0028 vicat test set:

Used for determination of setting time and consistency if cement by Vicat Method.
The test set comprises: Vicat Frame, Vicat Mould, Initial And Final needles, glass plate and consistency plunger.
Weight of sliding part: 300g
Maximal distance of sliding part: 700mm

STANDARD: EN 196-3

    Used for determination of setting time and consistency of cement by Vicat Method. The apparatus consists of a metal frame with a sliding rod. An adjustable indicator moves over a graduated scale. The needle or plunger is attached to the bottom end of the rod to make up the test weight of 300g.
    The frame is supplied without accessories, which have to be ordered separately depending on the requirement.

Weight approx.: 4 kg

Packing list
>Vicat frame
>Vicat mould
>Consistency plunger 10 mm dia.
>Supporting glass plate
>Initial needle 1.13 mm dia.   Final needle 1.13 mm dia.
