• Model NO.：PHW-5000
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Length：2800 mm
• Width：810 mm
• Height：1320 mm
• Gross Weight：1250 Kg
• Transport Package：Fumigated Wood Box
• Specification：ISO9001: 2008
• Trademark：Jp
• Origin：Shanghai China
• HS Code：903110009
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PHW-5000 Loading Method Dynamic Load Display Digital Control Computer Control Weight 1000-2000Kg Power Source AC380V Oil Cylinder Position Under Length 2800 mm Width 810 mm Height 1320 mm Gross Weight 1250 Kg Transport Package Fumigated Wood Box Specification ISO9001: 2008 Trademark Jp Origin Shanghai China HS Code 903110009 Production Capacity 1000 Sets/Month

Product Description

JP Multi-Stage Centrifugal Fan Universal Balancing Machine







Product Description

Quick Details
Place of Origin: Shanghai, China (Mainland)
Brand Name: JP
Model Number: PHW-5000
Power: Electronic
Usage: Balancing Machine
Output power: 15 variable-frequency
Site: shjpbalancer.en.made-in-china.com
Packaging & Delivery
Packaging Details: Fumigated Wood Box
Delivery Detail: We will send it within 20 days after confirmng the order

Delivery inspection



Specifications

Universal End-Drive Balancing Machine
1. Horizontal Type
2. Drived by universal joint
3. LCD display
4. ISO, SGS certified
Universal End-Drive Balancing Machine(PHW-5000)

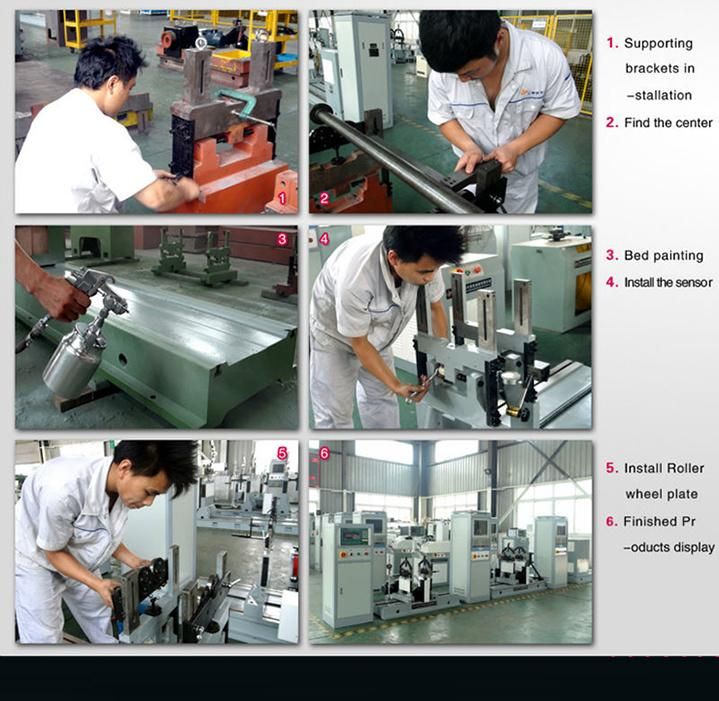

Production Process-Mechanical parts



Production Description

? Special designed brackets can effectively transmit mechanical force
? The durable and reliable sensor possesses high sensitivity
? The permanent calibration brings high accuracy
? Driven by universal coupling, transmit the power steadily
? Applicable to rotors which can't be driven by belt or need large power
? Advanced electrical measuring system and friendly man-machine interface

Factory Outlook



Range of Application

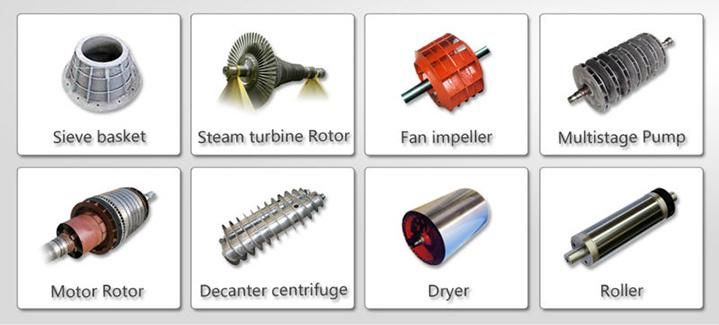

This balancing machine is mainly used in checking the balance of rotatable bodies such as good-sized and medium-sized motors, spindles of machine tools, blower, centrifuges, generator rotor, clinopodiums, pump impeller. Drying cylinder. Ceramic machinery, rollers, rubber sticks, etc...Driven by gear box universal coupling, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. With wide speed range, large driving power, high precision and easy operation etc

Certificates



Special Features

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Production Parameters

Technical data at a glance	PHW-5000
Max Mass of Workpiece (kg)	5000
Max Diameter of Workpiece (mm)	2400
Distance between Two Support Bearings (mm)	Min 320
Journal Diameter Scope of Workpiece (mm)	40-180 (can increase 180-380)
Spindle speed (r/min)	Stepless speed regulation
Motor Power (kw)	15 Frequency conversion
Universal coupling torque	1250
Min Achievable Residual Unbalance Amount(emar)	≤1g. mm/kg
