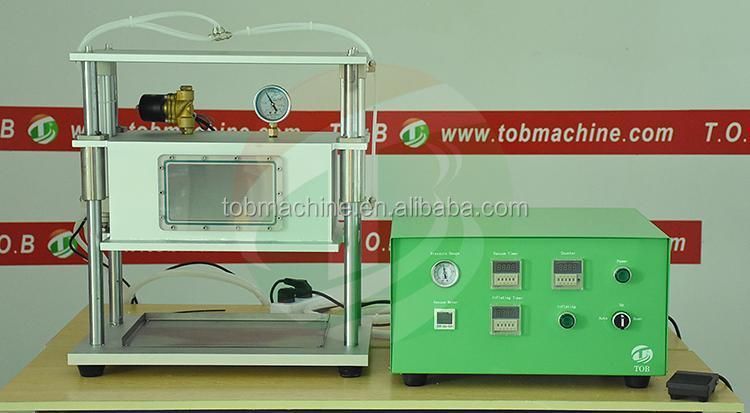

Pouch Cell Electrolyte Diffusion Chamber

XIAMEN TOB NEW ENERGY TECHNOLOGY CO., LTD.
  • After-sales Service：1year
  • Power Supply：1year
  • Certification：CE
  • Warranty：1year
  • Transport Package：Cartons
  • Trademark：TOB

Base Info

  • Model NO.：TOB-JZ300-S
  • Origin：China
  • Production Capacity：1000000,Month

Description

ModelElectrolyte Diffusion Chamber TOB-JZ300-SPower Supply110-240 V, Single Phase 50/60HzMax. Power100WWarrantyOne year limited with life time supportCompress Air0.5-0.8MpaInner Chamber Size(L*W*H)290*110*170mm, Can customize the size according to glove box sizeChamber Body12mm thick Aluminum case with observation windowVacuum LevelVacuum condition remains stable, vacuum degree and vacuum circulation times can be set independentlyVacuum mode (once or twice) can be selectedEasy program setting for specific vacuum conditionVacuum degree can up to -95kpa, with good sealing, can guarantee 1 minute air leakage is not more than 0.01 MPaVacuum Condition Hold Time0 - 9999 sec, adjustableProduct Dimensions(L*W*H)Vacuum Box: 430*230* 370mmControl Unit: 470*450*250mmApplication NotesPlease choose the vacuum pre-sealing machine and vacuum pump together for immediately useNet Weight40kg
