Test Instrument

High Velocity Impact Testing Machine for Face Shield/Face Shield Impact Testing Machine/Face Shield Testing Machine

Dongguan Hong Tu Instrument Co., Ltd.
  • Type:Face Shield Impact Testing Machine
  • Maxcapacity:<1000KN
  • Accuracy Grade:0.5
  • Load Way:Electronic Load
  • Loading Method:Static Load
  • Display:Touch Screen

Base Info

  • Model NO.:HT-6023-YJ
  • Control:Touch Screen
  • Weight:100-500Kg
  • Power Source:AC220V
  • Oil Cylinder Position:Without
  • Product Name:High Velocity Impact Testing Machine for Face Shie
  • Certificate:ISO and SGS
  • Standard:ANSI,Isea Z87.1 , En166,En170
  • Material:Stainless Steel and Aluminum Alloy
  • Application:Face Shield
  • Function:Its Use Face Shield Impact Testing
  • Power Supply:220V 50Hz
  • Control Ways:Computer Control
  • Delivery:30 Work Days
  • Packages:Strong Wooden Case
  • Transport Package:Strong and Export Wooden Case
  • Specification:According to ANSI,ISEA Z87.1, EN166, EN170
  • Trademark:HOTOTECH
  • Origin:Dongguan China
  • HS Code:9031809090
  • Production Capacity:10 Sets Per Month

Description

Product NameHigh velocity impact testing machine Testing standard ANSI Z89.1 ,EN166,EN168 etc standard Steel ball lead pellet diameter6.35mm (0.25in)Steel ball lead pellet mass1.06g (0.25in)Impact speed190+5m/s (can adjustable)Control ways Touch screen controlSecure function Protection alarm function VelocimeterHigh accuracy laser velocimeterSafety ButtonEmergency stop system Electricity220V 50HZ

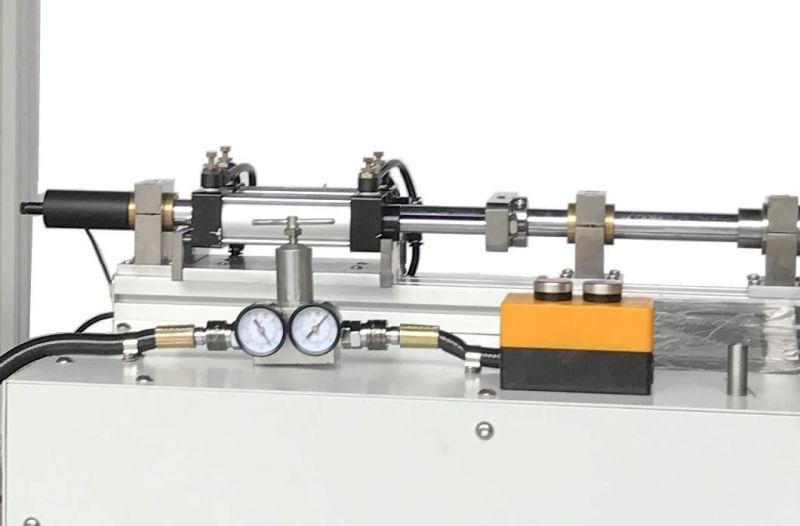

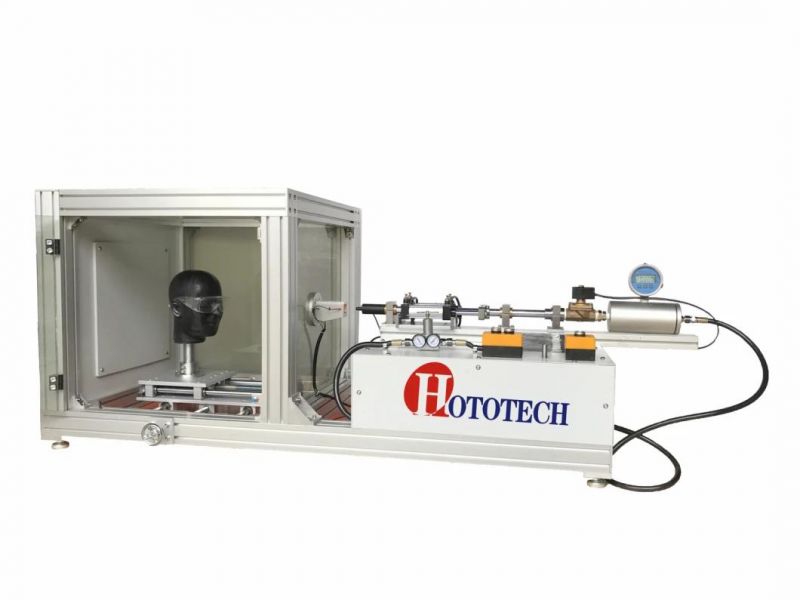

Testing machine's pictures show

High Velocity Impact Testing Machine for Face Shield/Face Shield Impact Testing Machine/Face Shield Testing Machine



High Velocity Impact Testing Machine for Face Shield/Face Shield Impact Testing Machine/Face Shield Testing Machine

High Velocity Impact Testing Machine for Face Shield/Face Shield Impact Testing Machine/Face Shield Testing Machine


Package Lists
High Velocity Impact Testing Machine for Face Shield/Face Shield Impact Testing Machine/Face Shield Testing Machine
