• Model NO.：HTPV-07S
• Weight：100-500Kg
• Power Source：AC220V
• Material：PVC Insulation
• Control Ways：PLC Program Control
• Test Tank Size：2100*1000*250mm(W*D*H)
• Test Tanks Thick：15mm
• Output Current The Maximum Valve：0-500V (Adjustable)
• Leakage Current The Maximum Limit Valve：5mA
• Output Speed Rate：500V,S
• Warranty：One Year
• Transport Package：Wooden Case
• Specification：IEC 61215-2005, UL 1703-2004
• Trademark：HOTOTECH
• Origin：Dongguan
• HS Code：9013809000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. HTPV-07S Weight 100-500Kg Power Source AC220V Material PVC Insulation Control Ways PLC Program Control Test Tank Size 2100*1000*250mm(W*D*H) Test Tanks Thick 15mm Output Current The Maximum Valve 0-500V (Adjustable) Leakage Current The Maximum Limit Valve 5mA Output Speed Rate 500V/S Warranty One Year Transport Package Wooden Case Specification IEC 61215-2005, UL 1703-2004 Trademark HOTOTECH Origin Dongguan HS Code 9013809000 Production Capacity 50 Sets Per Month

Product Description

Solar PV Module Wet Leakage Current Tester

Solar PV Module Wet Leakage Current Tester Standard
It's satisfy IEC61215 standard

Solar PV Module Wet Leakage Current Tester purpose
It's to evaluate the insulation of the module under wet operating conditions and verify that moisture from rain, fog, dew or melted snow does not enter the active parts of the module circuitry , where it might cause corrosion , a ground fault or a safety hazard

Solar PV Module Wet Leakage Current Tester Feature
1.Test Tank
1)Sixe:2100*1000*250mm (W*D*H) , thick :15mm
2)Material: Insulation resistance PP material , nice strength , high insulation, corrosion reistance
2.Constant temperature system, by HOTOTECH reaearch and development, can heating and cooling temperature:22±3ºC
3.Liquid resistivity :leass than 3500Ω.cm
4.Liquid surface tension: Less than 3N.m
Spray system : spray adopt UL lab special spray 3 pieces, every spray with water pressure gauge and water flow control value, it's can doing multi direction spray water pressure and water flow can be adjusted for the junction box
5.Programmable insulation withstand voltage tester :
5.1 Out put current the max 0-5000V (adjustable) ,
5.2 Leakage current the max limit value:5mA
5.3 Output speed rate:500V/S
5.4 Insulation resistance test range:1MΩ~9999MΩ
5.5 Leakage current test range :0.001~5.000mA (DC)

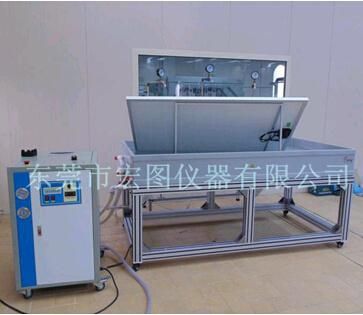

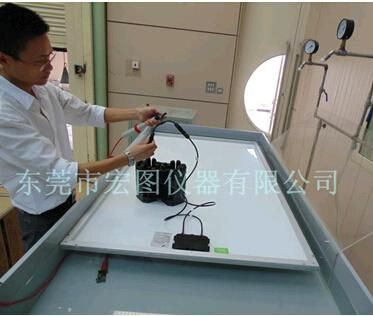

Solar PV Module Wet Leakage current tester picturer
