High Precision Transformer Insulating Oil Dielectric Loss Oil Tangent Delta Analyzing Apparatus

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Weight：0-100Kg
  • Power Source：AC220V
  • Condition of Use：-5ºC-40ºC Rh<80%
  • Power Source：AC 220V±10% Without Frequency Limit
  • AC High Voltage Output：400V-2200V ±2% Every 100V 50va
  • DC High Voltage Output：0V-2200V ±2%

Base Info

  • Model NO.：GDGY
  • Temperature Control Induction Stove：Maximal Power 500W
  • Temperature Control Range：<100ºC
  • Temperature Measuring Error：±0.5ºC
  • Control Temperature Error：0.1ºC
  • Control Temperature Time：Room Temperature 90ºC <20min
  • Relative Dielectric Loss Constant：Er Calculated Automatically
  • Transport Package：Standard Wooden Case
  • Trademark：GOLD
  • Origin：China
  • Production Capacity：1000 Sets , Month

Description

Item NameGDGY Automatic Transformer Oil Tan Delta TesterCondition of Use-5ºC-40ºC RH<80%Power SourceAC 220V±10% Without Frequency LimitAC High Voltage Output400V-2200V ±2% Every 100V 50VADC High Voltage Output00V-2200V ±2%Temperature Control Induction StoveMaximal Power 500WTemperature Control Range<100ºCTemperature Measuring Error±0.5ºCControl Temperature Error0.1ºCControl Temperature TimeRoom Temperature 90ºC <20minMeasuring Rangetgδ Without Limit
Cx 15PF-300PF
Rx 10M-10TResolutiontgδ 0.001%
Cx 0.01pF
Rx 0.01Precisiondelta tgδ:±(Reading*0.5%+0.020%)
delta Cx :±(Reading*0.5%+0.5PF)
delta Rx :±Reading * 10%Relative Dielectric Loss ConstantΕr Calculated AutomaticallyVolume Resistivityρ Calculated AutomaticallyDimension450(L)×310(W)×360(H)Net Weight21KG

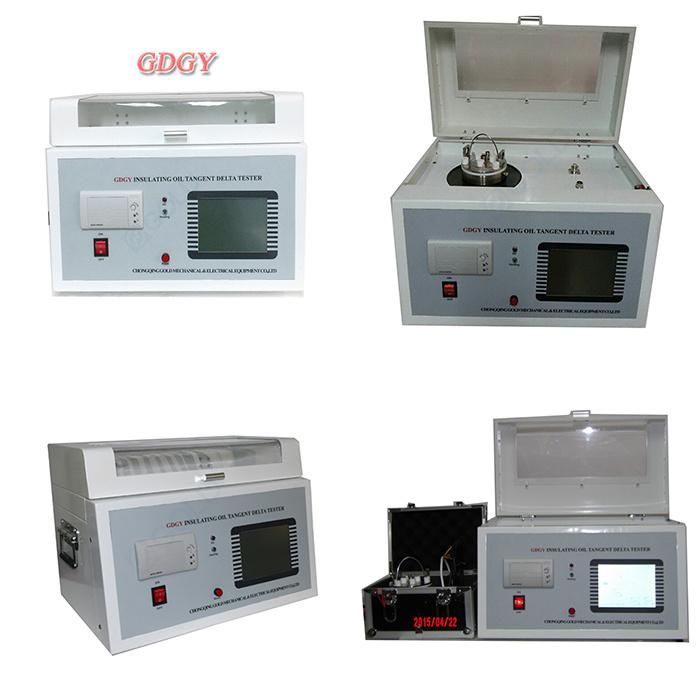

  • Product Show:
High Precision Transformer Insulating Oil Dielectric Loss Oil Tangent Delta Analyzing Apparatus
