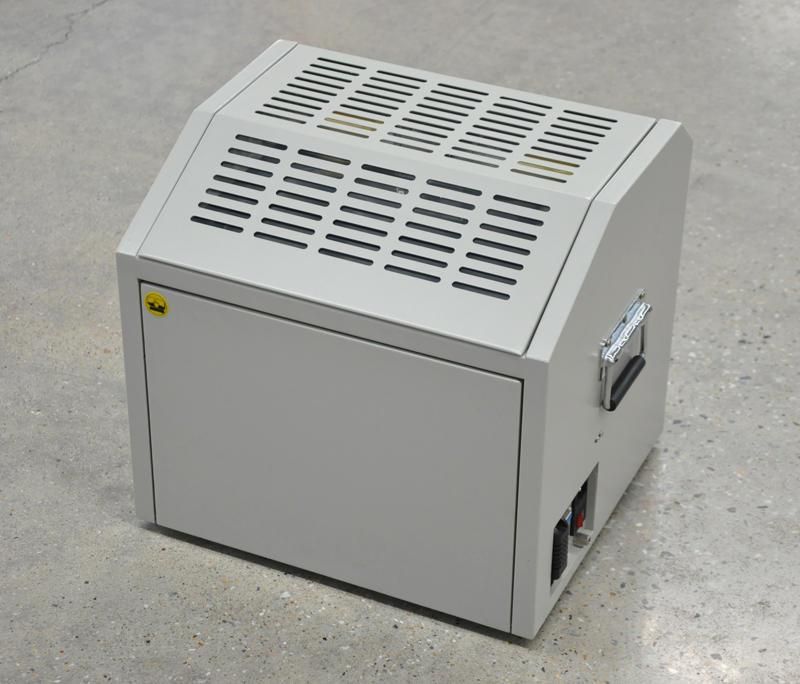

Automatic Insulation Oil Dielectric Strength BDV Tester GDOT-80C

HV Hipot Electric Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 year
  • Type：Strength Testing Machine
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Static Load

Base Info

  • Model NO.：GDOT-80C
  • Display：Digital
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Top
  • Capacity：1.5kVA
  • Output voltage：80kv
  • Delivery time：7 working days
  • Transport Package：Wooden Box
  • Specification：430 mm*350 mm*370 mm
  • Trademark：HV Hipot
  • Origin：China(Mainland)
  • HS Code：9030899090
  • Production Capacity：5000set,Year

Description

Output voltage0-80kVPower distortion rate<1%Voltage increasing speed2.0kV/s, 3.0kV/s (choice one) Error 0.2kV/sElectrode gapstandard 2.5mmDisplayLCD screenVoltage increasing interval5mins, adjustableVoltage increasing times1-6times, optionalCapacity1.5kVAPower inputAC220V±10%, 50Hz±1HzPower200WWorking temperature0-40ºCHumidity <85%RHDimension430*350*370mm
