• Model NO.：A1LZ1&2
• Origin：Shanghai China
• HS Code：903110009
• Production Capacity：100 Sets,Month

1

Max. weight of workpiece(kg)

100kg

2

Max. diameter range of workpiece(mm)

900mm

3

Balancing speed

≤660r/min

4

Min Achievable Residual Unbalance

≤2g.mm/kg

5

Unbalance reduction ratio

≥90%

6

Operating air pressure

0.4~0.6MPa

7

Operating voltage

AC:380V external connection

8

Drilling motor power

 5.5KW

9

Machine total power

20kW

10

Average air consumption

 6L/min

11

Protection

Phase sequence protection, overload protection, pressure monitoring

12

Number of formulas that can be stored

500no.

13

Number of history that can be stored

1million

Our certrifications:

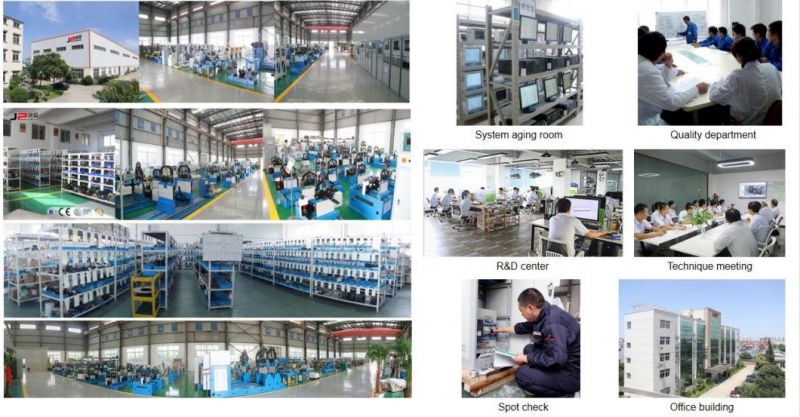

Our company:

A high-tech enterprise;                          Founded in 2004;

Occupied area: 10,000m2;                   Headquarters & factory located in Shanghai, China;

Employees: 200 ;                                  Business scope: 100+ countries;

Cooperators : Over 7500

Key market: Automatic / Manual balancing machine for automative, motor, pump, homeapplications, refrigeration industry and service market.
