• Model NO.：PHLD-5
• Maxcapacity：<1000KN
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Length：1100mm
• Width：650mm
• Height：1350mm
• Gross Weight：180kg
• Usage：Balancing Machine
• Number of Package：1PCS
• Item：Air Conditioning Fan Balancing Machines
• Transport Package：Packed in Fumigated Wood Box
• Specification：CE. ISO. SGS
• Trademark：JP
• Origin：China
• HS Code：90311000
• Production Capacity：500sets,Month

Basic Info.

Model NO. PHLD-5 Maxcapacity <1000KN Accuracy Grade 0.5 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Length 1100mm Width 650mm Height 1350mm Gross Weight 180kg Usage Balancing Machine Number of Package 1PCS Item Air Conditioning Fan Balancing Machines Transport Package Packed in Fumigated Wood Box Specification CE. ISO. SGS Trademark JP Origin China HS Code 90311000 Production Capacity 500sets/Month

Product Description

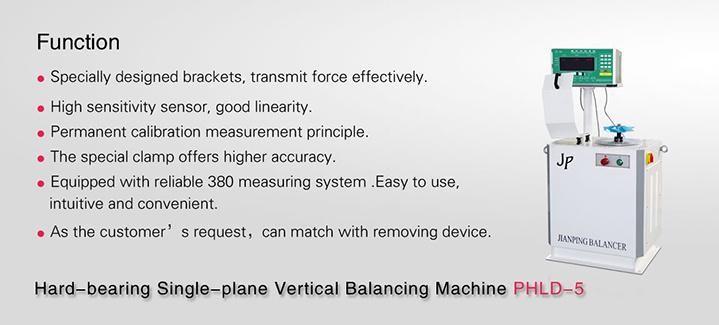

Production Description

Specially designed, solid brackets can effectively transmit mechanical force
Durable and reliable sensor possesses high sensitivity and good linearity
Permanent calibration brings high accuracy
Special clamp offers higher accuracy and easier operation
Advanced electrical measuring system and friendly man-machine interface
As the customer's request, the de-weighting system can be equiped

Delivery inspection

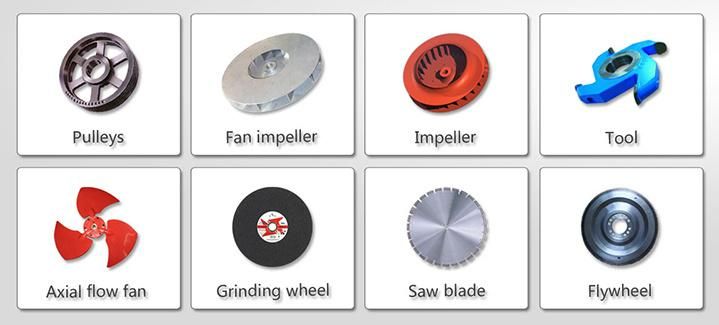

Range of Application

Mainly used in balancing fan impeller, pump impeller, range hood fan, flywheel, grinding wheel, chuck, clutch, brake disc, saw blade, brake, tool, torque converter, belt pulley etc.
It can be equipped weight-removing equipment for customer if demanded.

Factory Outlook



Special Features

JP-380 Micro-computer Electric Measuring Instrumentation newly developed by ourselves with piezoelectric transducer as electromechanical sensor, The measuring unit can show rotating speed, measured value, and phase position intuitively with options of six support models available while the piezoelectrical sensor possesses a large capacity of output, small volume and high stability Several different electric testing systems(JP-580B, JP-580) are available.

Certificates



Production Parameters


Technical data at a glance	PHLD-5
Weight of Workpiece (kg)	5
Max. Outer Diameter of Workpiece (mm)	350
Height of Workpiece (mm)	120
Rotating Speed of Main Shaft (r/min )	900
Motor Power (KW)	0.18
Min Achievable Residual Unbalance Amount. (e mar )	2g. mm/kg
