• Model NO.：CXYAW-3000E
• Control：Computer Control
• Weight：1200kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Transport Package：Plywooden Case
• Trademark：Chenxin
• Origin：China
• HS Code：9024800000
• Production Capacity：60sets,Month

Basic Info.

Model NO. CXYAW-3000E Control Computer Control Weight 1200kg Power Source AC380V Oil Cylinder Position Under Transport Package Plywooden Case Trademark Chenxin Origin China HS Code 9024800000 Production Capacity 60sets/Month

Product Description

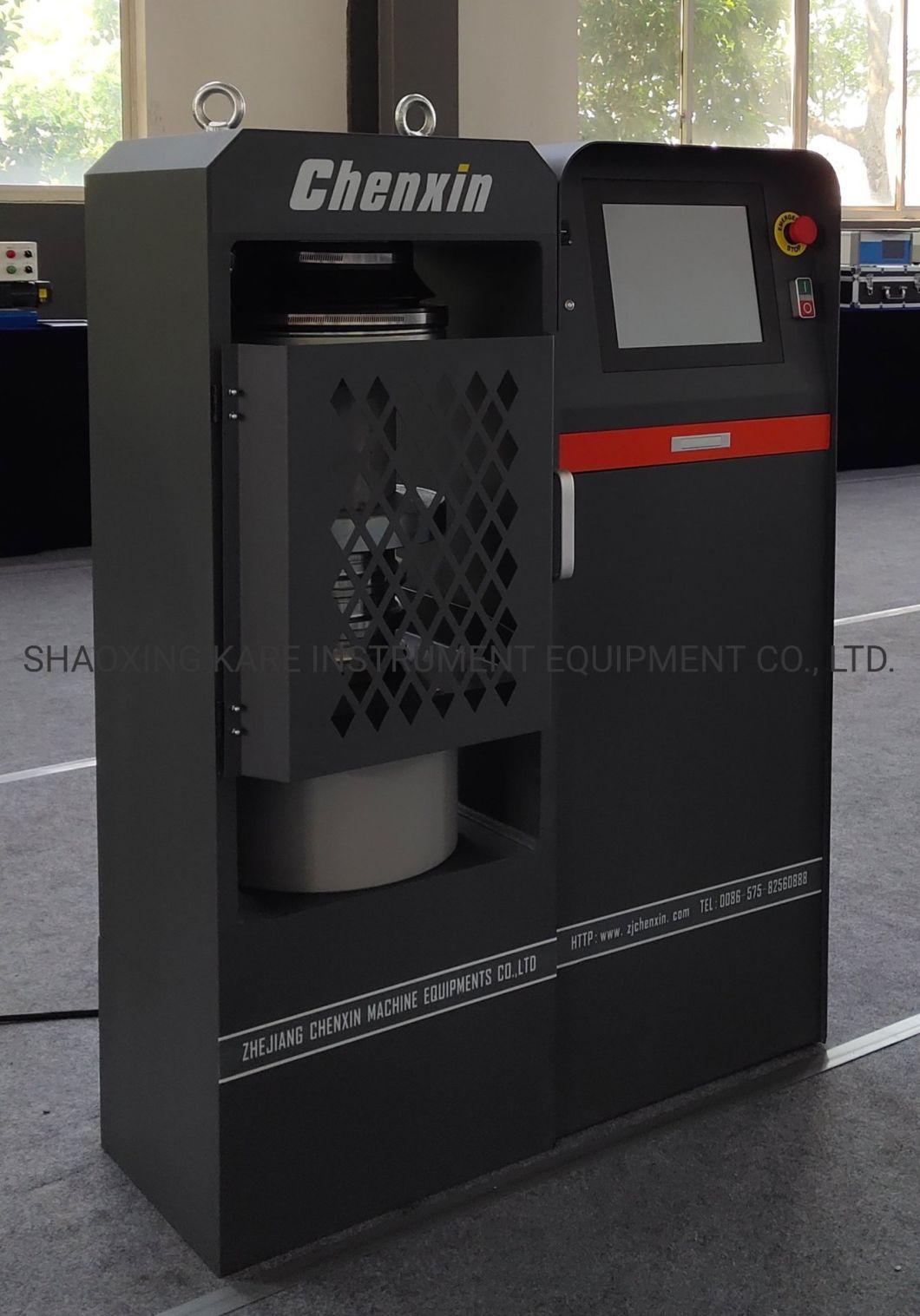

CXYAW-3000E Computerized Electro-Hydraulic Servo Lab Equipment


Usage
Mainly used for testing the compressive strength of concrete and the compressive strength of refractory bricks and other materials.


Characteristics1. Frame structure has good toughness and rigidity.2. The use of bolt-free connections increases the stability of the machine3. Adopt no base design, no need to connect tubing, more convenient operation.4. The design of touch screen and keyboard is used to meet the preferences of different technicians.5. According to the principle of ergonomics, the test process is easy to operate.6. The test space is adjusted by the pad and the width of the space is increased, so the elastic modulus of concrete can be operated. When reading the percentile meter, there is no visual occlusion, which is more convenient and faster.

Main technical parameters

Model	CXYAW-3000E
Max. force	3000KN
Measuring range	1%-100%FS
Range	Gearless, equivalent four gears
Force indicating relative error	≤±1%
Force resolution	1/300000FS
Force control range with constant speed	0.1%-4%FS/s
Speed control accuracy error	≤±2% set value
Distance between two walls	340mm
Max. distance between platens	320mm
Platens size	φ295mm
Test space	430*435*110-310mm
Piston movement	Single way
Piston rising max. speed	40mm/min
Piston max. stroke	80mm
System work pressure	40mpa
Indicating value accuracy	≤±0.5%,≤±1%
Motor power	2.2kw
Dimension	1010*590*1330mm
Weight	1200kg
