• Model NO.：GD-8017A
• Loading Method：Dynamic Load
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Reference Standard：ASTM D323
• Test Method：Reid Method
• Testee：Gasoline, Volatile Crude Oil
• Automation：Automatic Type
• Test Bomb.：Can Do 3 Bomb Tests at a Time
• Water Bath Temperature：37.8c
• Temperature Control Accuracy：+,-0.1c
• Pressure Range：(0 ~ 200)Kpa or (0 ~ 29)Psi
• ASTM D323：Automatic Reid Vapor Pressure Apparatus
• Transport Package：Wooden Case
• Specification：as per ASTM D323
• Trademark：GOLD
• Origin：Made in China
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-8017A Loading Method Dynamic Load Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Reference Standard ASTM D323 Test Method Reid Method Testee Gasoline, Volatile Crude Oil Automation Automatic Type Test Bomb. Can Do 3 Bomb Tests at a Time Water Bath Temperature 37.8c Temperature Control Accuracy +/-0.1c Pressure Range (0 ~ 200)Kpa or (0 ~ 29)Psi ASTM D323 Automatic Reid Vapor Pressure Apparatus Transport Package Wooden Case Specification as per ASTM D323 Trademark GOLD Origin Made in China HS Code 9031809090 Production Capacity 100sets/Month

Product Description

GD-8017A Automatic Reid Vapor Pressure Testing Equipment for Reid Vapor Pressure of Gasoline



Introduction:

Reid Vapor Pressure ASTM D323 measures the vapor pressure of crude oil and petroleum refined products, and the vapor pressure of volatile petroleum liquids.
The Automatic Reid Vapor Pressure Testing Equipment is made and designed as per national standard of People's Republic of China GB/T 8017 Petroleum Products- Determination of vapor pressure- Reid method. It can also be used to do determination according to ASTM D323 Standard Test Method for Vapor Pressure of Petroleum Products (Reid Method). It is used to make determination for vapor pressure of gasoline, volatile crude oil and other volatile petroleum products.
The Automatic Reid Vapor Pressure Testing Equipment cannot be used to determine the vapor pressure of LGP. It is fully-automatic vapor pressure tester by PC control and operation.


Key Features:

This Automatic Reid Vapor Pressure Testing Equipment consists of two parts: "built-in industrial computer and color touch screen" and "instrument host". The desktop structure and the integrated machine form have reasonable design, compact structure, low failure rate and stable and reliable operation. The instrument can automatically complete the sample pressure and temperature detection during the test; automatic management and control of the test process; automatic sampling, analysis and calculation of test data; real-time display of test curve of test process; automatic display of test results, etc.

The Automatic Reid Vapor Pressure Testing Equipment has high degree of automation, accurate test results, good repeatability and convenient operation.

It adopts advanced heating technology, while fundamentally achieving water and electricity separated, the separator used to cover the heating tube in the water bath is removed, so that the total height of the water bath is reduced, there is no dead angle in the bath, and the bottom is clearly seen. Water saving, it is also convenient for users to regularly clean the water bath.

The movement mode of the test bomb is changed from the traditional horizontal axial 350 degree rotation to the "saw plate" type movement, so that the sample is more fully stirred in the test bomb, more in line with the requirements of the standard, and the test results of saturated vapor pressure are more accurate.

Built-in heating protection function, when there is no water in the water bath or too little water, the system will automatically cut off the heater and stop the pump, which can avoid damage to the heater and pump.


Parameters:


1	Power supply	AC(220±10%)V, 50Hz
2	Maximum power consumption	1700W
3	Test bomb.	Can do 3 bomb tests at a time
4	Water bath temperature	37.8ºC
5	Temperature control accuracy	±0.1ºC
6	Heating power	1600W
7	Movement of bomb	Seesaw type
8	Pressure range	(0~200) kPa or (0~29) psi
9	Ambient temp.	(5~35)ºC
10	Relative humidity	≤85%
11	Dimension	600mm*500mm*512mm

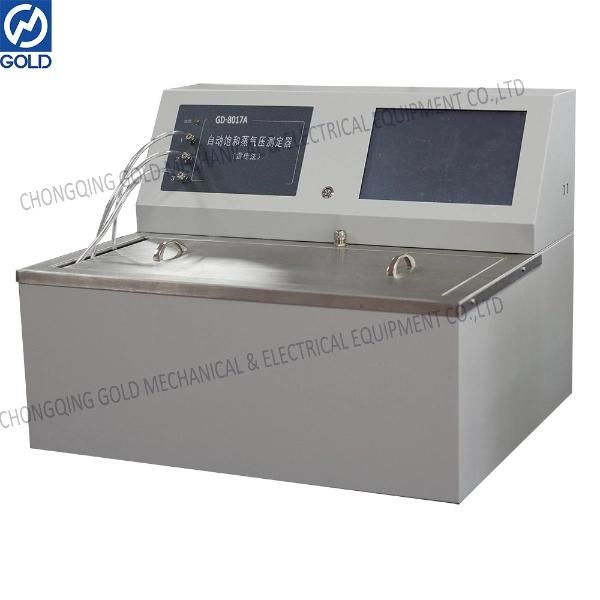

Automatic Reid Vapor Pressure Testing Equipment for Reid Vapor Pressure of Gasoline:
