• Model NO.：FX-TA-15
• Transport Package：Carton Case
• Specification：FX-TA-15
• Trademark：SEREV REAL
• Origin：China
• HS Code：9031809090
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. FX-TA-15 Transport Package Carton Case Specification FX-TA-15 Trademark SEREV REAL Origin China HS Code 9031809090 Production Capacity 200 Sets/Year

Product Description

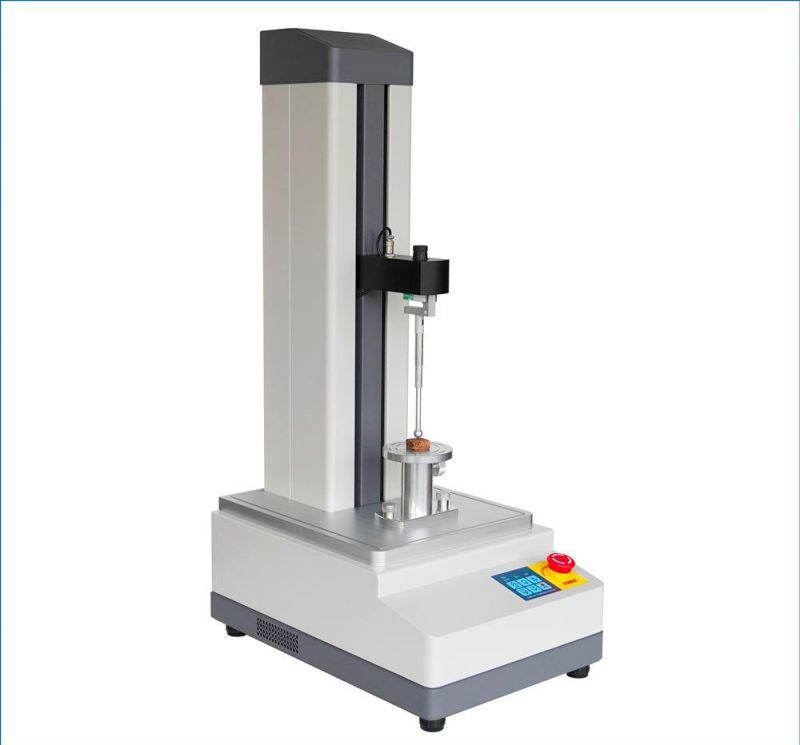

 The TA-15 texture analyzer can be used for physical property analysis of various foods, medicine, cosmetics and other samples, and can quantify the hardness, brittleness, tenderness, viscosity, elasticity, toughness, cohesion, chewiness, freezing strength, tensile strength, rupture strength, shear strength, compressive strength, penetration strength, creep properties, relaxation properties and many other physical indicators of samples.

Features
Equipped with 8-inch high-definition touch screen, can be operated independently from the computer. With functions of experimental method edit, test result store, and print the test certificate. It's suitable for use in laboratory, production, teaching and other application scenarios.
The TA-15 texture analyzer can communicate with computer, professional software provides rich parameter settings, implements more precise measurement control, more accurate high-speed data acquisition, and achieves professional-level data analysis.
All measurement processes and results can be traced.
Multi-level authority management: three levels, multiple users, ordinary users can add unlimited times.

Specifications

Load range	0~20 kg (0~200 Newton)
Force sensor can be equipped	1, 2, 5, 10, 15, 20 kg, others optional
Load force detection accuracy	Better than 0.01%
Load force resolution	0.001g
Deformation displacement range	0~310mm
Displacement resolution	0.0001mm
Detection speed	0.01mm/s~40mm/s, ≤±0.1%
Data collection rate	200, 500, 1000, 2000 groups, per second can be selected after optimal filtering
Instrument protection function	emergency braking, upper and lower limit control, power sensor unit overload protection, detection data encryption
Dimensions	L560 × W330 × H 800 mm
Weight	25Kg

Advanced model Texture analyzer FX-TA-25H PRO
