• Model NO.：STMH-3
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：No
• Display：Digital
• Control：No
• Weight：358kg
• Power Source：AC380V
• Oil Cylinder Position：No
• Product Name：Los Angeles Splitter Abrasion Testing Machine
• Standard：ASTM C131, En1097-2, Aashto T-96
• Diameter X Length：711 X 508 mm+,-5mm
• Drum Rotation Speed：30-33 Rpm
• Working Voltage：AC380V or AC220V
• Counter：5 Digits, Adjustable, Automatic Shut-off; Push-But
• Set of 12 Steel Balls：46.8mm, 390-445g
• Transport Package：Wooden Case
• Specification：1.88 CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STMH-3 Accuracy Grade 1 Load Way Electronic Load Loading Method No Display Digital Control No Weight 358kg Power Source AC380V Oil Cylinder Position No Product Name Los Angeles Splitter Abrasion Testing Machine Standard ASTM C131, En1097-2, Aashto T-96 Diameter X Length 711 X 508 mm+/-5mm Drum Rotation Speed 30-33 Rpm Working Voltage AC380V or AC220V Counter 5 Digits, Adjustable, Automatic Shut-off; Push-But Set of 12 Steel Balls 46.8mm, 390-445g Transport Package Wooden Case Specification 1.88 CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

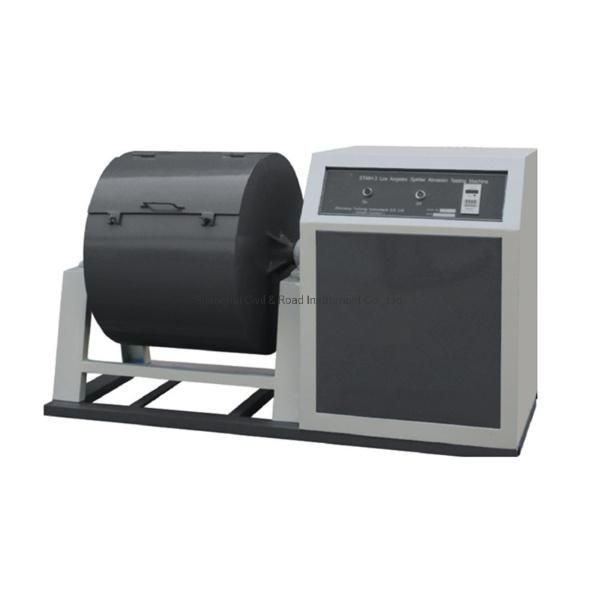

STMH-3 Los Angeles Splitter Abrasion Testing Machine
Lab Aggregate Los Angeles Splitter Abrasion Testing Machine

Standards:
ASTM C131, EN1097-2, AASHTO T-96    NF P18-573

Application: The Los Angeles Abrasion Machine is used as a quality control tool for aggregates, including crushed rock, gravel and slag. The testing method determines the degradation when subjected to abrasion, attrition, impact and grinding.

The machine consists of a rolled steel drum having an inside diameter of 711 mm and internal length 508 mm. The drum is rotated by a speed reducer driven by an electric motor at a speed of between 31 and 33 r.p.m. The machine is equipped with an automatic counter, which can be preset to the required number of revolutions of the drum. The unit is supplied without the abrasive charge, which has to be ordered separately depending on the standard in use.

Technical parameters:


Diameter x length	711 x 508 mm+/-5mm
Drum rotation speed	30-33 rpm
Working voltage	AC380V or AC220V
Counter	5 digits, adjustable, automatic shut-off; push-button reset and adjustment
Set of 12 abrasive charges steel balls	46.8mm, 390-445g
Steel tray	for specimen unloading
Outside dimension	1100x780x1000mm
