• Model NO.：STRS-6
• Accuracy Grade：1
• Load Way：No
• Loading Method：No
• Display：Digital
• Control：Digital Display
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Strs-6 Bitumen Content Furnace by Ignition Method
• Complies to：Aashto T 308-99 and ASTM D6307-98
• Max.Weight of Specimen：4500g
• Commendatory Weight of Specimen Measurin：1000-1500g
• Precision of Balance：0.1g, Capacity of Balance:8kg
• Firebox Size：350mmx440mmx330mm
• Max.Working Temperature of Firebox：800c
• Standard Working Temperature：538c with Temperature Compensation
• Testing Time：20-30 Min
• Features：Test Parameters Set by Touching Keyboard on Front
• Transport Package：Wooden Case
• Specification：1.43 CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STRS-6 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control Digital Display Weight 100-500Kg Power Source AC220V Oil Cylinder Position No Product Name Strs-6 Bitumen Content Furnace by Ignition Method Complies to Aashto T 308-99 and ASTM D6307-98 Max.Weight of Specimen 4500g Commendatory Weight of Specimen Measurin 1000-1500g Precision of Balance 0.1g, Capacity of Balance:8kg Firebox Size 350mmx440mmx330mm Max.Working Temperature of Firebox 800c Standard Working Temperature 538c with Temperature Compensation Testing Time 20-30 Min Features Test Parameters Set by Touching Keyboard on Front Transport Package Wooden Case Specification 1.43 CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

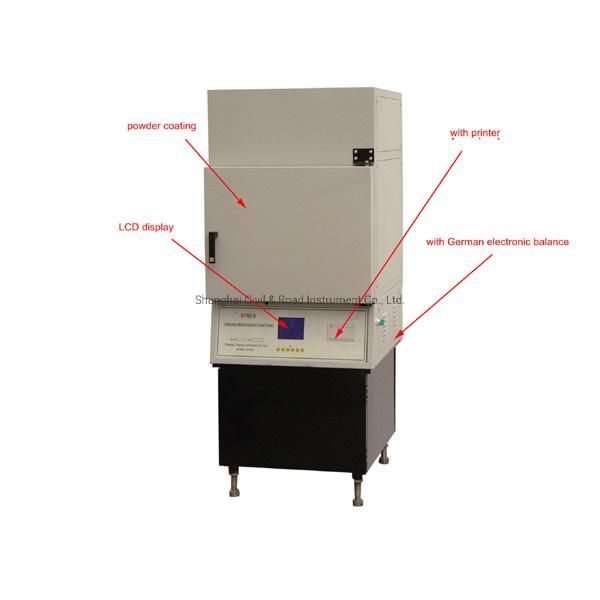

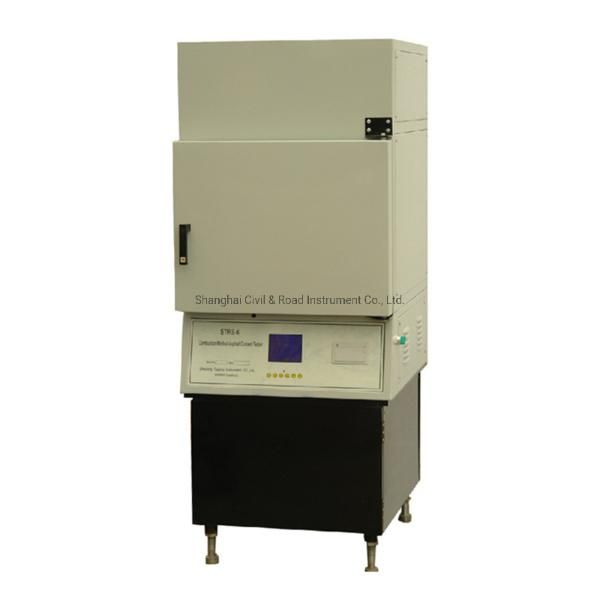

STRS-6 Bitumen content furnace by ignition method

Complies to standard: AASHTO T 308-99 and ASTM D6307-98 ASTMD630,AASHTO TP53-95,BSDD250 Test quickly

Application: The Asphalt Content Furnace with internal automatic balance is an environmentally friendly and cost-effective method for the accurate determination of asphalt content. Ignition method reduces testing time compared to solvent testing methods and automatic operation frees technicians for other tasks.

Max.weight of specimen	4500g
Commendatory weight of specimen Measuring	1000-1500g
Precision of Balance	0.1g, capacity of Balance:8kg;
Firebox size	350mmX440mmX330mm;
Max.working Temperature of firebox	800ºC
Standard working Temperature	538ºC with temperature compensation;
Testing time	20-30 min;
Electric current	≤20A;

Introduction:
Asphalt Content Binder Analyser Oven can be fast, accurate, safe and reliable determination of asphalt content, it can be applied to determine asphalt content in asphalt mixture, and it also can be used in the analysis of asphalt mixture after burning, is all asphalt mixture production, research use other units to detect the ideal instrument asphalt content.
Asphalt Content Binder Analyser Oven is also in line with ASTM D 6307-98 standard, AASHTO T308-99 standard technical requirements.

ASTM D6307 NCAT Asphalt Content Furnace is designed and made as per T0735-2011 "Asphalt Content Test in Asphalt Mixtures ( Combustion Furnace Method )" and JT/T 671-2006"Combustion Method for Asphalt Content Tester " in the Industry Standard of People's Republic of China JTG E20-2011 "Highway Engineering Bitumen and Bituminous Mixtures Test Code" .
ASTM D6307 NCAT Asphalt Content Furnace can determine asphalt content rapidly ,correctly ,safely and reliably .And it is suitable to determine the asphalt content of the asphalt mixtures .
ASTM D6307 NCAT Asphalt Content Furnace is also used to analysis the asphalt mixtures after the combustion .
ASTM D6307 NCAT Asphalt Content Furnace is the ideal instrument to determine the asphalt content for manufacturing , researching ,using ,act of the institutes .
ASTM D6307 NCAT Asphalt Content Furnace is also suitable to meet the requirement of ASTM D6307-98, AASHTO T308-99 standard
.
Features: Test parameters set by touching keyboard on front controller; inbuilt printer; data storage facility, LCD display; automatic end point detection;
