• Model NO.：hz1200
• Weight：0-100Kg
• Power Source：AC220V
• Usage：Auto Testing Machine
• Power Supply：AC100V~240V , 50Hz
• Size：340*295*155 mm
• Measuring Range：3ug-100mg
• Resolution：0.1ug
• Largest Electrolytic Speed：40 Ug,S
• Largest Power：<40
• Humdity：≤85%
• Net Weight：5.5kg
• Electrolysis of Water：10ug~1000ug
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9027809900
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. hz1200 Weight 0-100Kg Power Source AC220V Usage Auto Testing Machine Power Supply AC100V~240V / 50Hz Size 340*295*155 mm Measuring Range 3ug-100mg Resolution 0.1ug Largest Electrolytic Speed 40 Ug/S Largest Power <40 Humdity ≤85% Net Weight 5.5kg Electrolysis of Water 10ug~1000ug Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9027809900 Production Capacity 100 PCS/Month

Product Description

karl fischer volumetric titrator portable moisture in oil test set

1. INSTRUMENT PREPARATION

In the packing box, users can find below parts:

1. HZ1200  Volumetric Karl Fischer Titrator 1 Set

2. External device 1 Set

3. Accessories 1 Set



The instrument is composed of three parts: main unit, titration cup and feeding & drainage device. The Main unit is responsible for handling main functions, such as the exchange display of user interface, data measuring, titrate mode selection, parameter setup, titration control, communication and printing, etc.

The titration cup is the where actually measures water samples, including sampling port, capillary input, electrode interface, inlet of KF reagent A liquid , dryer interface, waste water liquid outlet, etc., adopts full sealed structure.

The Feeding & drainage Device's main function is to prevent users from direct contact with KF reagent, as an auxiliary device designed to simplify user operation, including drainage and feeding function of KF reagents. For example, the initial operation before measurement analysis: Suck out the solution in KF reagent A liquid bottle (solvent), through sealing pipe suck the solution into titration cup, and then start measurement analysis after the sample injection; After sample analysis many times, when the solution in titration cup accumulates to certain degree (or the titration cup solution alarm prompts), users need to operate the instrument to drain the solution inside the titration cup.



2. Instrument Operation

2.1 Introduction

HZ1200 Volumetric Karl Fischer Titrator (hereinafter referred to as the instrument) is a highly precise laboratory analyzer, which is mainly used in chemical analysis of college, scientific research institute, petrochemical industry, pharmacy, drug test and metallurgy.



2.1.1 Features of HZ1200

l With new microprocessor technology, the meter can show relevant measuring methods and measuring results. It has friendly operating interface for convenience.

l The meter has several titrate modes including Pre-titrate, Auto titrate, Manual titrate, Constant titrate and KF titer measurement, etc. The instrument has filling and cleaning function.

l For KF reagent, the instrument has feeding, drainage, KF reagent mixing function, prevent users from direct contact with KF reagent, simplify the user operation.

l The instrument supports automatic anti-overflow protection function for solution in titration cup.

l The instrument supports failure detection and prompt functions for KF reagent .

l The transmission system has been improved to reduce the size and noise of the meter during operation. The stirring system adopts PWM technology to adjust the speed of stirring system.

l The meter has USB interface which can be connected to the computer. It is controlled by the professional software.

l It supports GLP norm and can save 200 sets of titration data. Users can view and printout.

l It supports firmware upgrade, allows function extension.



2.1.2 Main Specifications and Performance

1. Measuring range: 0.1mg~250 mg;

2. Resolution: 0.1mg;

3. Accuracy of polarization current: 1µA ±0.2µA; 50µA ±10µA;

4. Repeatability of titration analysis: 0.5%;

5. Normal working conditions:

Environments temperature:(5.0~35.0)ºC; Relative humidity: ≤80%;

Power supply: (220±22)V,Frequency(50±1)Hz;

There should be no disturbance of electromagnetic field.

6. Dimension(mm):340×400×400 (length×width×height).

7. Weight(kg):about 10.

Company Information

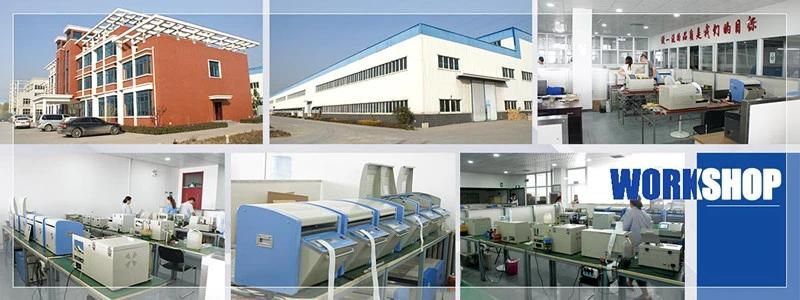

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

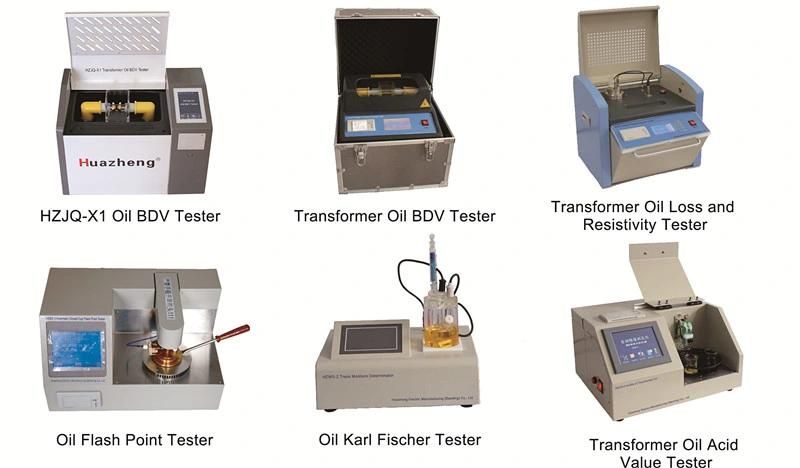

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
