• Model NO.：HZ-109S
• Weight：0-100Kg
• Power Source：AC220V
• Power Supply：AC: 220V± 10%· 25A, 50Hz,60Hz
• Current Output：AC: 1000A· 5V or 500A· 10V
• Primary Current Range：0~1100A
• Resolution：0.1A;
• Working Environment：Temperature -10~40
• Accuracy：± 0.5%
• Name：Primary Current Injection Test Equipment

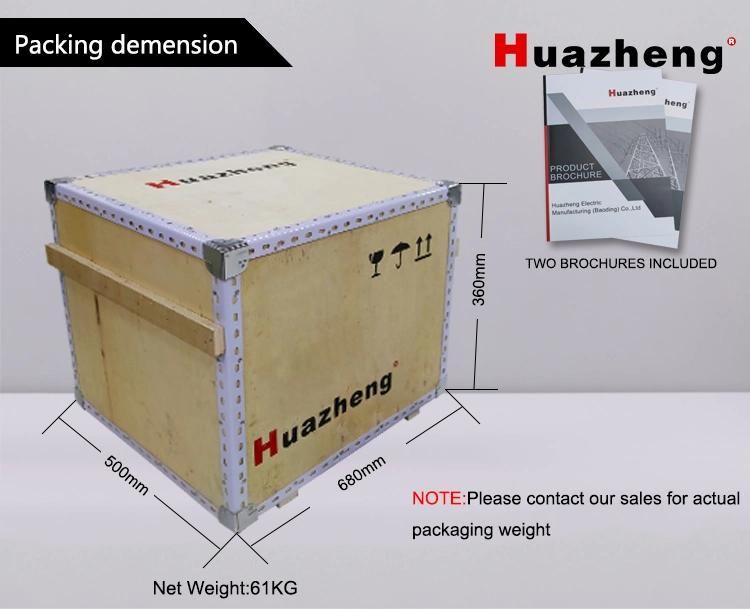

• Transport Package：Wooden Box with Foam Inside;
• Specification：CE,ISO,IEC
• Trademark：Huazheng
• Origin：Hebei, China
• HS Code：9030339000
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. HZ-109S Weight 0-100Kg Power Source AC220V Power Supply AC: 220V± 10%· 25A, 50Hz/60Hz Current Output AC: 1000A· 5V or 500A· 10V Primary Current Range 0~1100A Resolution 0.1A; Working Environment Temperature -10~40 Accuracy ± 0.5% Name Primary Current Injection Test Equipment Transport Package Wooden Box with Foam Inside; Specification CE/ISO/IEC Trademark Huazheng Origin Hebei, China HS Code 9030339000 Production Capacity 100 PCS/Month

Product Description

1000a digital primary injection test kit of current transformer ct

I.Introduction

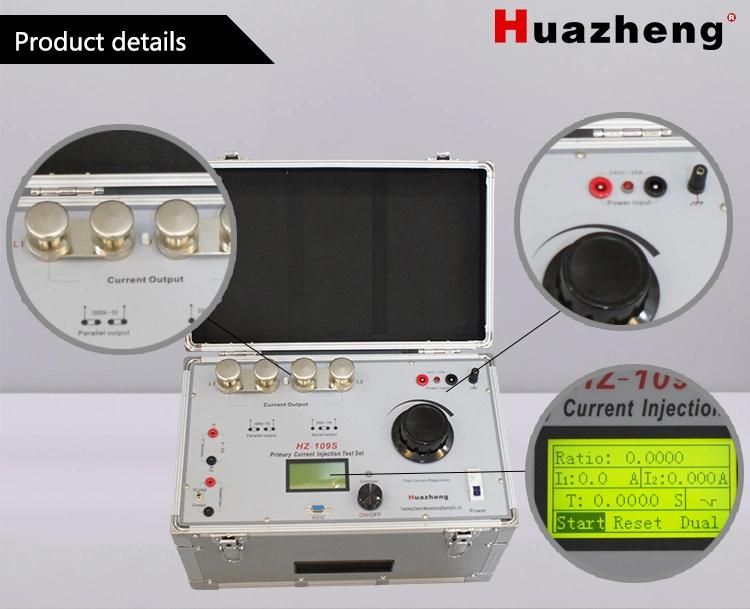

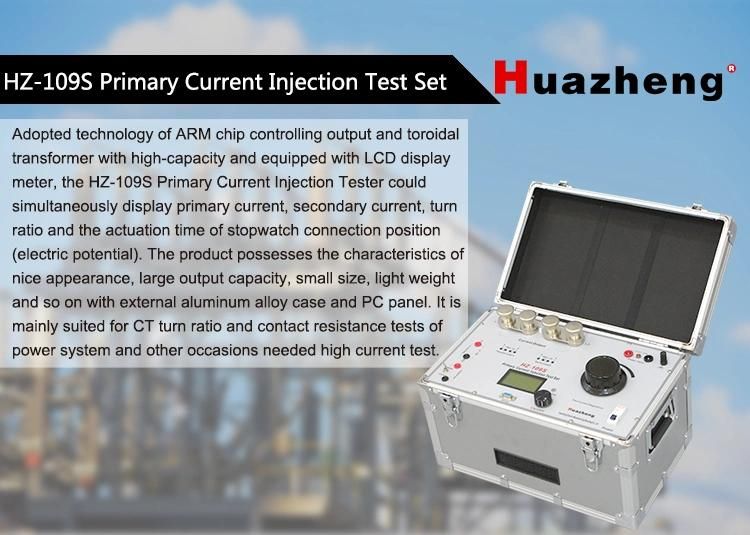

primary current injection test set adopts ARM Chip to control its output process and large capacity of toroidal transformers. It is equipped with LCD display and current meter; it can show primary current value, second current value, turn ratio and the action time. Packing is used as aluminum alloy body with PC panel. TEST-901 is mainly applied to CT turn ratio testing in the power system and contact resistance test which need large current.

II.Parameters
1. Power Supply: AC: 220V± 10%· 25A, 50Hz/60Hz
2. Current Output: AC: 1000A· 5V or 500A· 10V, Capacity: 5KVA
3. The current output waveform distortion: ≤ 5%
4. Display, primary current, second current and turn ratio,
Accuracy: ± 0.5%,
Primary current range: 0~1100A, Resolution: 0.1A;
Measurement second current range: 0~6A, Resolution: 0.001A
Current Duration:
1000A range: 1000A 2~3minutes,
500A 3~6minutes
500A range: 500A 2~3minutes,
5. Dual protection (overload electronic protection and software protection)
6. Working environment: Temperature -10~40, relative humidity≤ 80%

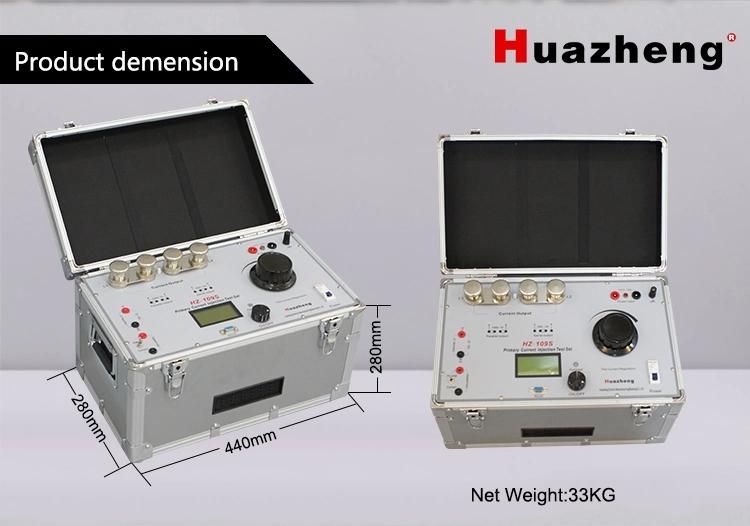

7. Volume: 430mm× 260mm× 260mm
8. Weight: 29Kg

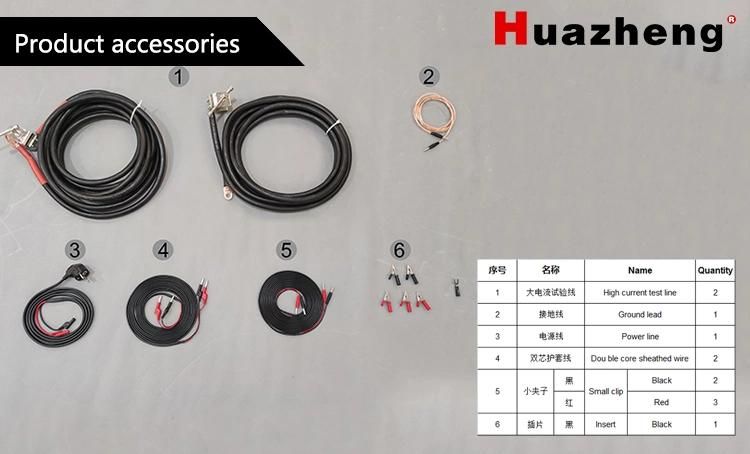

Packing List

No.	Item	Qty
1	Main engine	1
2	Test line	2
3	Power line	1
4	Double core sheathed wire	2
5	Ground lead	1
6	Small clip	5
7	Insert	1

III.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

Our main products are Safety Products, Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.

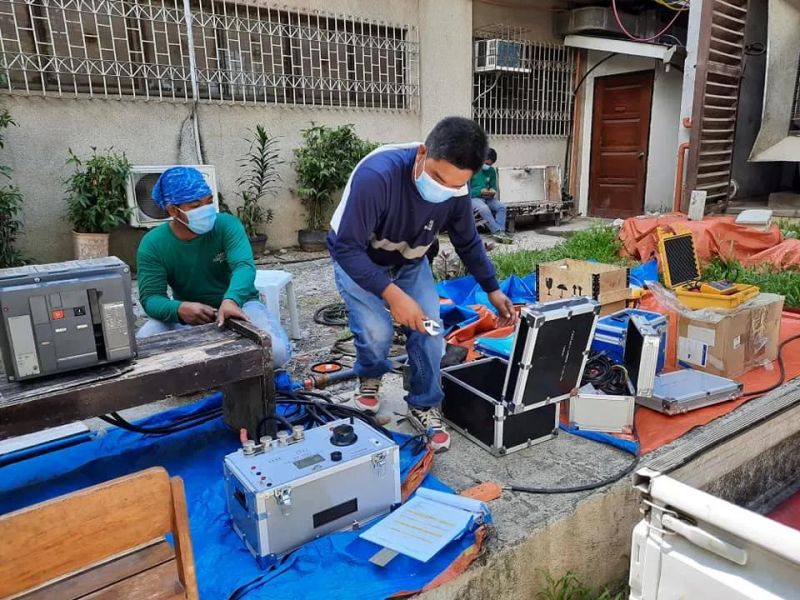

IV.Customer Visit



V.Exhibition

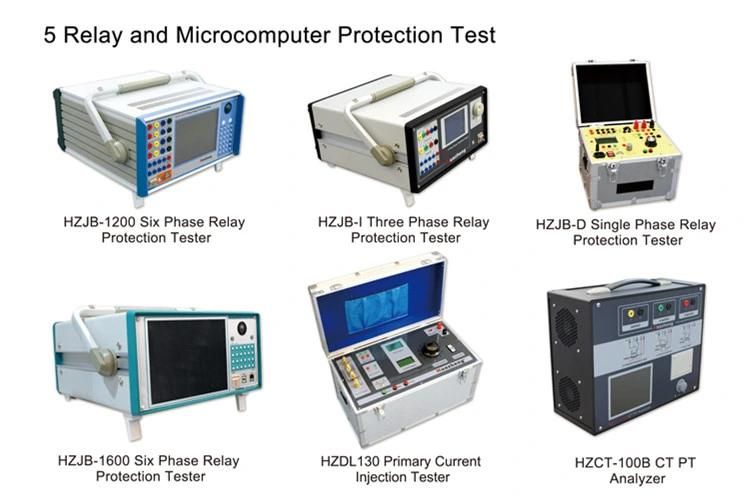

VI.Similar Recommendation
