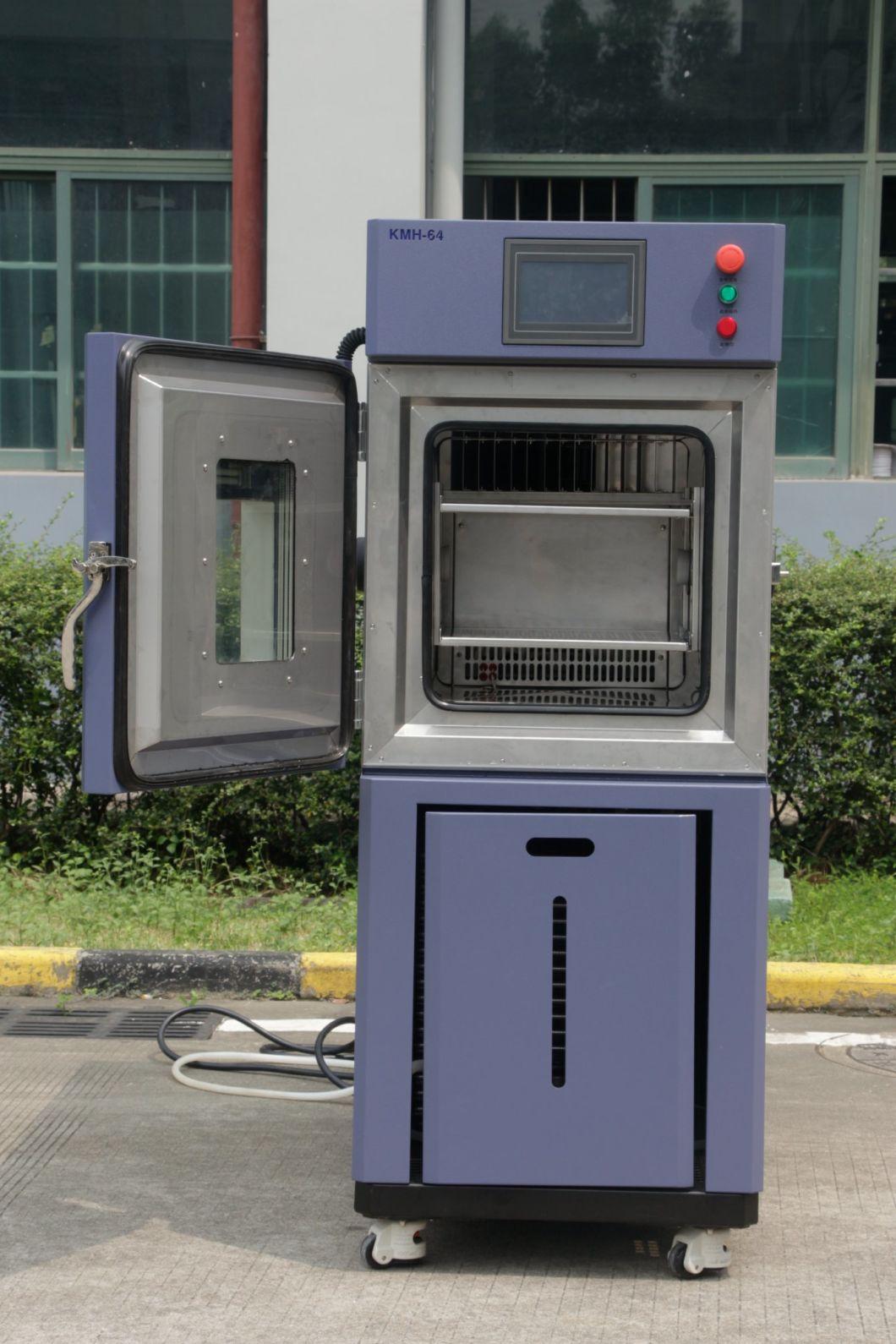

• Model NO.：KMT-64L
• Temp. Constancy：+,-0.5 Oc,Min
• Heater：Iron-Chrome Wire Heater
• Blower：Centerifugal Blower
• Observation Window：Glass Incorporating Heat Generator
• Controller：Touch Screen Programmable Controller
• Compressor：Semi-Hermetic Compressor(France Imported Tecumseh)
• Cooling Mode：Air,Water Cooled
• Working Chamber Volume：225L
• Transport Package：Strong Plywood Case, Meet International Standards
• Specification：Standard and customized, ISO9001, SGS, CE, TUV, UL
• Trademark：KOMEG
• Origin：Dongguan, China
• HS Code：90321000
• Production Capacity：1000 Sets,Year

ModelKMH-64S64L chamber volumeTemp. range -70°C ~150°C Display resolution0.1°CTemperature stabilityHigh±0.5°C ,low ±1.0°CTemperature uniformity ±2.0°CHeat up time -70°C ~+100°C,within 60 minPull down time +20°C ~-70°C,within 80 minHumidity range20~98%R.H,(standard),   '10~98%R.H,(with humidifier)Humidity constancy±2.5%R.HHumidity uniformity±3.0%R.HInterior Dimension(mm)400W*400H*400D Exterior Dimension(mm)600W*1526H*1200DInterior materialStainless Steel Plate(SUS 304)Exterior materialBaked Painting Steel Or Stainless steel(SUS304)Insulation materialRigid polyurethane Foam and Glass Fiber WoolTotal power  5.2KW(heater 2KW included)Max current12.5AWater Consumption0.35L/hrAmbient Temp.+5°C ~+35°C Power Supply AC 380V±10%50Hz ,3 phase 4 wires +Ground WiresWeight 200KGSight window size215*230mmSample holder 2 pcsFittingscable port(portΦ50mm)*1, chamber lamp*1, power cable *2mSafety device  (standard)No fuse breaker,over pressure,over heat&over current protect,over temp. protect, over load protect for blower, dry heat protect Control SystemBalanced Temperature & Humidity Control (BTHC)SystemRefrigeration systemAir Cooled (Water Cooled is option)Hermetic compressor  Hermetic compressor                                                                                                Single stage refrigeration system,                                                                            CFC-Free refrigerant(HFC-507/HFC-23)CFC-Free refrigerant(HFC-507/HFC-23)Controller7-inch LCD Touch Screen panel                                                                        Operation model :Program or fix point runningMemory capacity :120programs,1200steps,All repeat 999 cycles, part repeat 99 cyclesNote:
1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available
