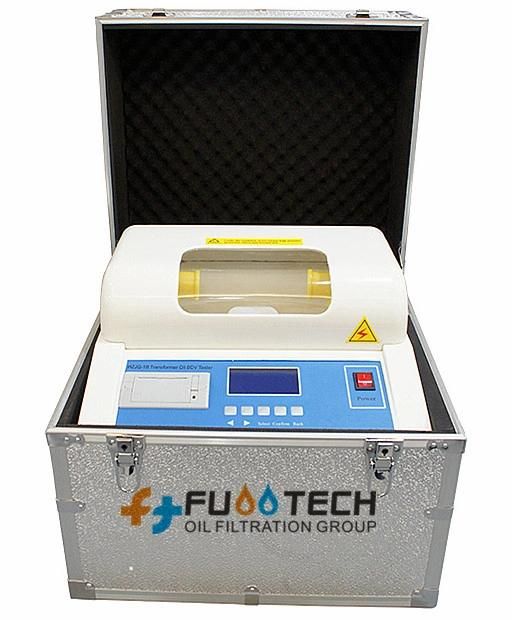

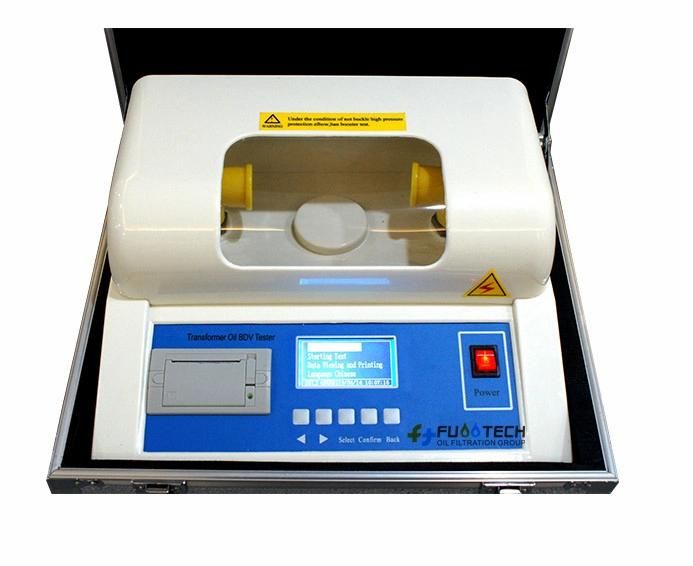

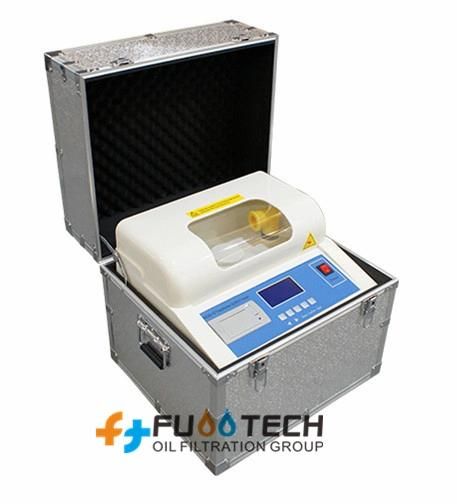

Insulating Oil Measuring Tool Dielectric Strength Analyzer Transformer Oil Bdv Tester 80 Kv
Chongqing Fuootech Oil Purifier Technologies Co., Ltd.- Max Diameter of Workpiece：500mm
- Mass Scope of Workpiece：<900kg
- Type：Oil Dielectric Strength Tester
- Maxcapacity：80kv
- Accuracy Grade：1
- Load Way：Electronic Load
Base Info
- Model NO.：FOT-80KV Oil BDV Tester
- Loading Method：Dynamic Load
- Display：Digital
- Control：Manual Control
- Weight：37 Kgs Only
- Power Source：220VAC, 50Hz
- Oil Cylinder Position：Under
- Waveform Distortion：<3 %
- Measurement Accuracy：3 %
- Booster Capacity：1.5 kVA
- Output Voltage：80kv
- Boosting Speed：2.0 ~ 3.5 Kv,S (Adjustable)
- Breakdown Sensitivity：< 0.1 Kv
- Certificate：ISO, CE, IEC156, SGS
- Delivery Time：7 Days
- Net Weight：37 Kgs
- Transportation：by Sea, Air, Courier, etc.
- Static Set Time：15 Minutes (Adjustable)
- Booster Interval：5 Minutes (Adjustable)
- Booster：1 ~ 6 Times (Optional)
- Power：220W
- Product Type：Oil Test Set Insulating Oil Breakdown Voltage Dete
- Transport Package：in Standard Exportation Plywood Case
- Specification：420mm*400mm*380mm
- Trademark：FUOOTECH
- Origin：Chongqing, China
- HS Code：9030899090
- Production Capacity：1000 Units Per Month
Description
Functions:
- microprocessor,1 cup,portable,automatic booster,
- maintain, stirring, static discharge, calculating, printing and so on, can do oil cycle
- voltage test range 0 ~ 100KV.

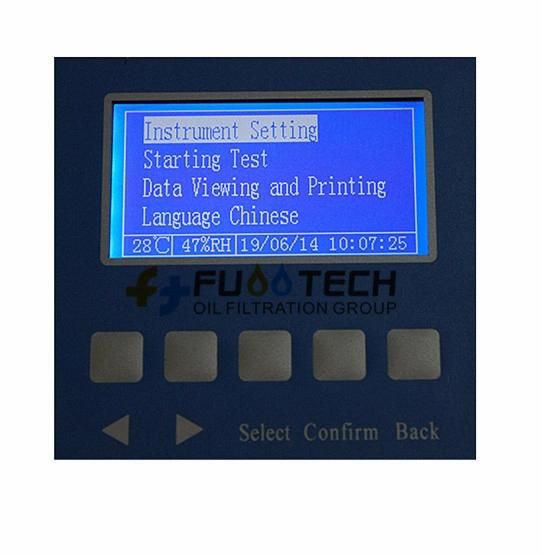

- large-screen LCD.
- simple operation
- testing results are automatically stored, can print
- can store 100 experimental results, and can display the currentenvironment temperature and humidity.
- Using single chip microcomputer control constant speed boost,easy to control.
- With overvoltage, overcurrent, limiting protection, safe.
- temperature measurement display function and system clock display.
- Standard RS232 interface, can communication with computer.
Insulation Transformer Oil Dielectric Strength Tester Parameter:
Output Voltage | 0~80KV (100KV need special design) |
Voltage Distortion Rate | <3% |
Voltage Raising Speed | 0.5~5 KV/S (adjustable) |
Standing Time | 15min(adjustable) |
Boosting Interval | 5 min(adjustable) |
Boosting Frequency | 1~6 time(s) |
Booster Capacity | 1.5KVA |
Measuring Accuracy | ±3% |
Supply Voltage | AC100V~220V 50Hz±1 Hz |
Power | 200W |
Applicable Temperature | -0ºC~45ºC |
Applicable Humidity | ≤75%RH |
Overall Dimension | 465 mm *385 mm *425mm |
