• Model NO.：GW-001B
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-001b
• Flexing U Angle：40+,-1 Deg
• Fixture：12 Sets
• Specimen：75*45 mm
• Counter：LCD,0-999999
• Dimension：55*36*37 Cm
• Trademark：Great Win
• Origin：China
• Production Capacity：500 Pieces,Year

Basic Info.

Model NO. GW-001B Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-001b Flexing U Angle 40+/-1 Deg Fixture 12 Sets Specimen 75*45 mm Counter LCD,0-999999 Dimension 55*36*37 Cm Trademark Great Win Origin China Production Capacity 500 Pieces/Year

Product Description

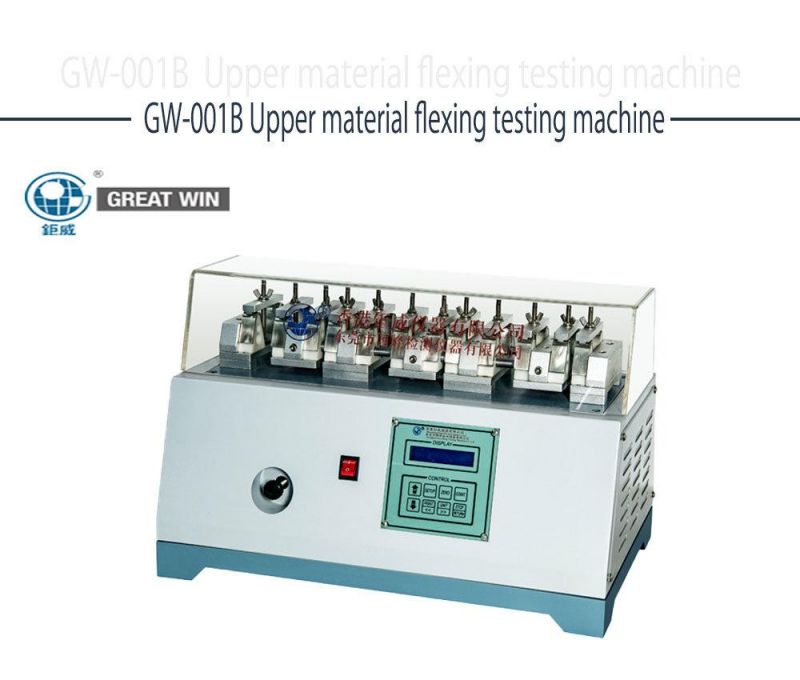

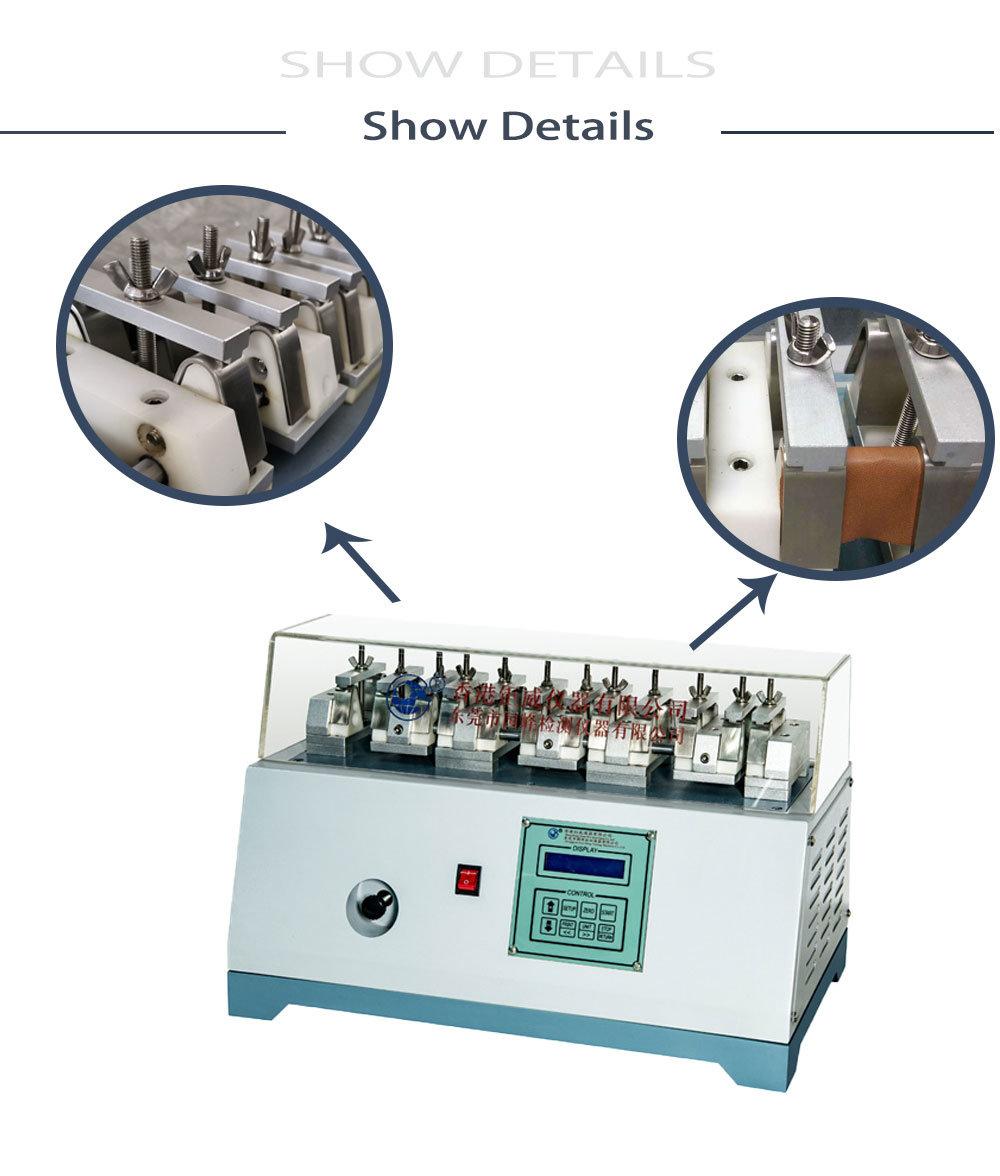

Shoes Face Material Flexing Testing Machine (GW-001B)

•Brief introduction:
It is used to assess the tendency of all type of shoe upper materials such as leather, fabrics, plastic-coated fabrics and upholstery coverings to crack or break as a result of flexing in wear. It allows 4 samples to be tested simultaneously.

•Technical Specifications:

Model	GW-001B Upper material flexing testing machine
Flexing  U angle:	40±1°
Fixture:	12 sets
Specimen:	75*45mm
Counter:	LCD(0~99999999)
Dimension:	55*36*37cm
Weight:	60kg



•Standard for:
ISO-4643, SATRA TM25


•Attached accessories:
Standard mold 1 PCS.






What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
