• Model NO.：GD-261D
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Temperature Range：Ambient to 135.0ºC
• Temperature Control Accuracy：±0.1ºC
• Bath Capacity：About 23 L
• Sample Quantity：You Can Make Determination Using
• Transport Package：Wooden Case
• Specification：1200mm*700mm*2000mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

1. Power supply:AC(220±10%)V,50Hz2. Flash point determination:Range: Ambient to 300ºC

   Repeatability: ≤3ºC

   Reproducibility:≤6ºC

   Accuracy:0.1ºC

3. Heating rate:Procedure A:

(5~6)ºC/min, Procedure B: (1~1.6)ºC/min

Automatic control and manually adjustable.

4. Stirring rate:Procedure A:

 (90~120)RPM, Procedure B: (250±10)RPM

              Automatic control and manually adjustable.

5. Igniting mode:Electric ignition. Gas flame diameter:3.2mm~4.8mm

6. Working condition:

Ambient temperature:(10~40)ºC

                   Relative humidity:≤80%

7. Maximum power consumption:500W8. Dimension:520mm×360mm×310mm

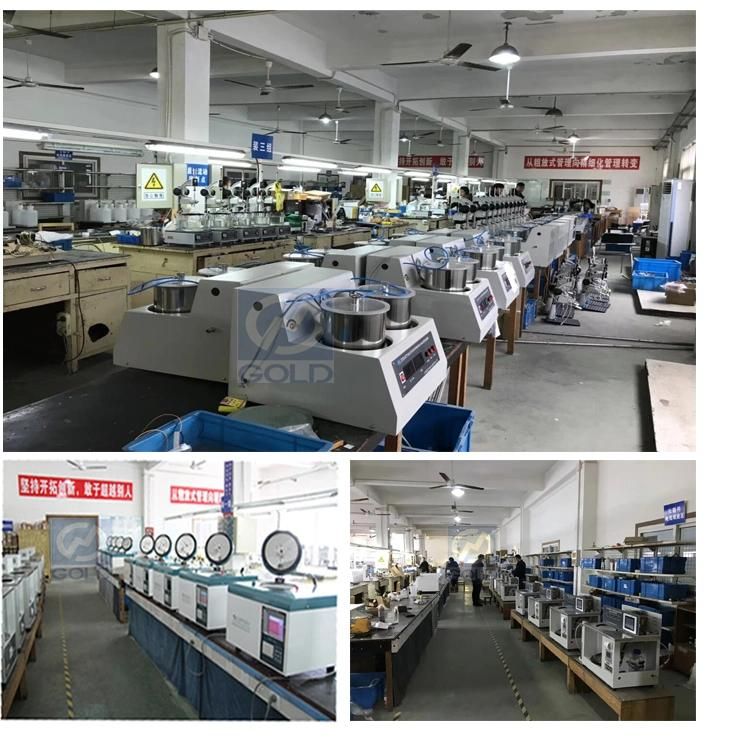

Workshop

At present, there are more than 150 employees, of whom more than 70% are technical personnel with college degree or above.

With strong technical force and strong development, new products have been launched continuously.

Gold Equipment Service:



If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.

We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service:

1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment

Free technical training for visiting factories

24-hour Online contact

Free software upgrades

Free information:steel tensile test

1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)

Device Problem Handling:

1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service




Exhibition


We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya,

Nigeria, South Africa and other countries worldwide. And we have gained strong advantage and high reputation in international market.

After several years' development, our products have become high intelligent and wide coverage.
And our company has become one of the leadingmanufacturer of petroleum testing instrument and electrical testing instrument.


Packing
