• Model NO.：HJ-8
• Radiation Intensity：1.2W,M2,340nm
• Temperature Resolution：0.1ºC
• Temperature Control Method：Pid Self-Tuning Temperature Control Method
• Standard Specimen Size：1000X400mm
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-8 Radiation Intensity 1.2W/M2/340nm Temperature Resolution 0.1ºC Temperature Control Method Pid Self-Tuning Temperature Control Method Standard Specimen Size 1000X400mm Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Product Description
Simulate natural UV radiation and condensation to perform accelerated weathering tests on materials to obtain results on material weatherability

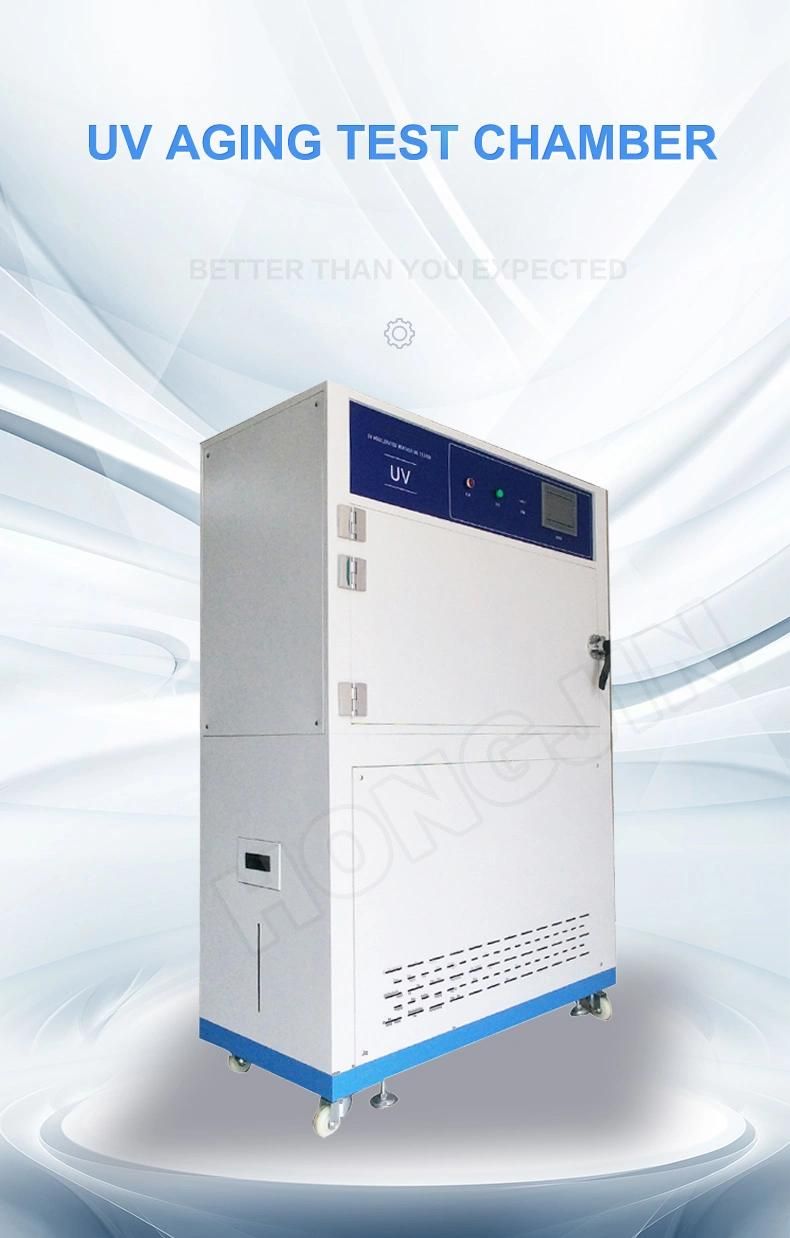

UVA Aging Test UVB Aging Test UV Weather Resistance Climatic Test Chamber QUV Tester  is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.

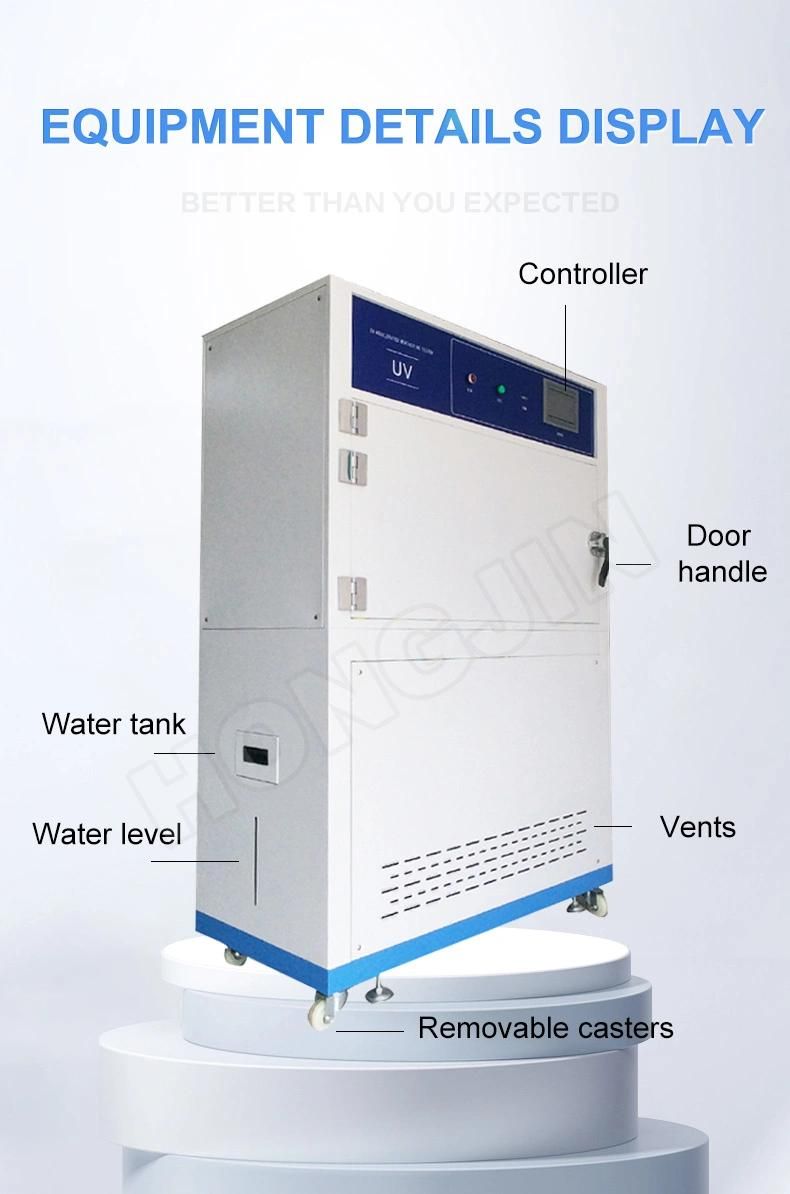

UV accelerated aging test machine features
This product uses a fluorescent ultraviolet lamp that can best simulate the UV spectrum of the sun, and combines temperature control, humidity supply and other devices to simulate the sun that causes discoloration, brightness, and intensity reduction; cracking, peeling, chalking, oxidation, etc. (UV section) Factors such as high temperature, high humidity, condensation, dark period, etc. At the same time, the single light resistance or single moisture resistance of the material is weakened or invalid through the synergy between ultraviolet light and moisture, which is widely used for weather resistance of the material For performance evaluation, the equipment has the characteristics of providing excellent sunlight UV simulation, low maintenance cost, easy to use, automatic operation cycle of the lighting controller of the equipment, high degree of automation, good lighting stability, and high reproducibility of test results.

Standard of UV test machine
ASTM G 153, ASTM G 154, ASTM D 4329, ASTM D 4799, ASTM D 4587, SAE, J2020, ISO 4892 All current UV aging test standards

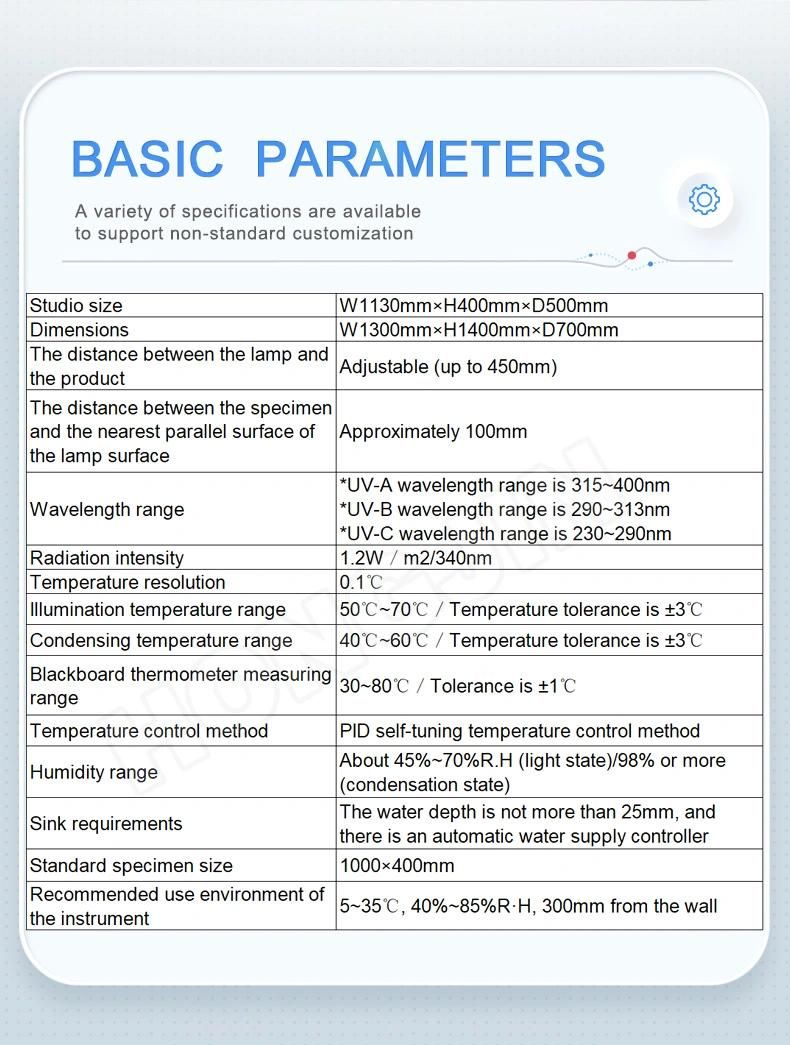

Studio size	W1130mm×H400mm×D500mm
Dimensions	W1300mm×H1400mm×D700mm
The distance between the lamp and the product	Adjustable (up to 450mm)
The distance between the specimen and the nearest  parallel surface of the lamp surface	Approximately 100mm
Wavelength range	*UV-A wavelength range is 315~400nm                                                        *UV-B wavelength range is 290~313nm                                                        *UV-C wavelength range is 230~290nm
Radiation intensity	1.2W/m2/340nm
Temperature resolution	0.1ºC
Illumination temperature range	50ºC~70ºC/Temperature tolerance is ±3ºC
Condensing temperature range	40ºC~60ºC/Temperature tolerance is ±3ºC
Blackboard thermometer measuring range	30~80ºC/Tolerance is ±1ºC
Temperature control method	PID self-tuning temperature control method
Humidity range	About 45%~70%R.H (light state)/98% or more (condensation state)
Sink requirements	The water depth is not more than 25mm,  and there is an automatic water supply controller
Standard specimen size	1000×400mm
Recommended use environment of the instrument	5~35ºC, 40%~85%R·H, 300mm from the wall
