• Model NO.：BST-01

Basic Info.

Model NO. BST-01

Product Description

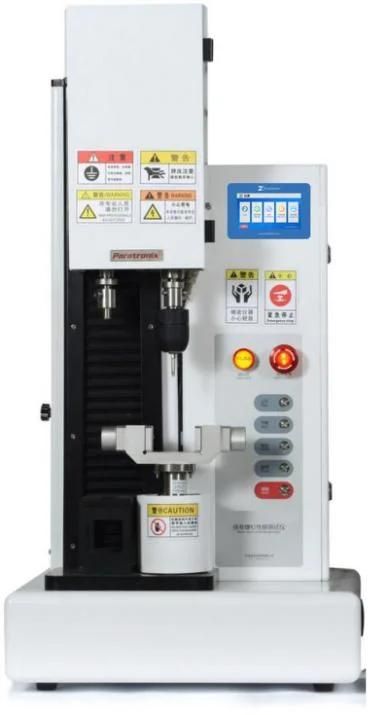

BST-01 Bone Screw Performance Tester

BST-01 Bone Screw Performance Tester, a multi-functional integrated instrument, is used to test the bone screw driving torque and self-tapping performance. It can be widely used in medical device testing institutions, medical device manufacturers and other units.



Technical Features

• Open structure, friendly man-machine interface operation, curve drawing, clearer test process
• Adopt precision differential motor drive, smoother transmission, lower noise, more accurate positioning and better repeatability of test results
• Imported custom high-sensitivity load element, TBI screw to ensure accurate displacement
• Professional high-performance imported control system to control the coordinated action of dual servo motors
• Fully automated measurement
• Easy to use, highly simplified control system puts everything set up in the background for one-touch start-up
• Professional fixture for different testing modes
• Built-in special calibration program, easy to calibrate
• 7-inch color touch screen with intelligent data processing functions, providing users with a comfortable and smooth operating experience

• Multifunction: pull-out strength, self-tapping performance, torsional strength, insertion and removal behavior
• With data automatic storage, power-off automatic memory function
• With powerful data storage function, which can store more than 6000 test records
• The computer software fully complies with the requirements of GMP "Computerized System", with functions such as user management, authority management, and data audit trail.

Technical Specifications

Specifications	BST-01
Load Cell Capacity	5kg
Pull-out Strength Range	≤200kg
Torque Range	0-10Nm
Testing Accuracy	0.5% FS
Stroke	≤300mm
Resolution	0.01
Test Mode	Driving torque, self-tapping performance
Test Speed	1-300mm/min (stepless speed)
Instrument Dimension	470(L)x 440(B)x 1000(H)mm
Power Supply	AC220V±22V,50Hz
Net Weight	60kg

Standards
ASTM F543, ISO 6475, YY 0018-2016, YY/T 1504, YY/T 1505, YY/T 1506

Configuration
Standard configuration: Instrument, Test fixture
