• Model NO.：DH-YA
• OEM Service：Yes
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, China
• HS Code：9027809900
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. DH-YA OEM Service Yes Transport Package Standard Exporting Wooden Package Trademark DahoMeter Origin Dongguan, China HS Code 9027809900 Production Capacity 300 Sets/Month

Product Description

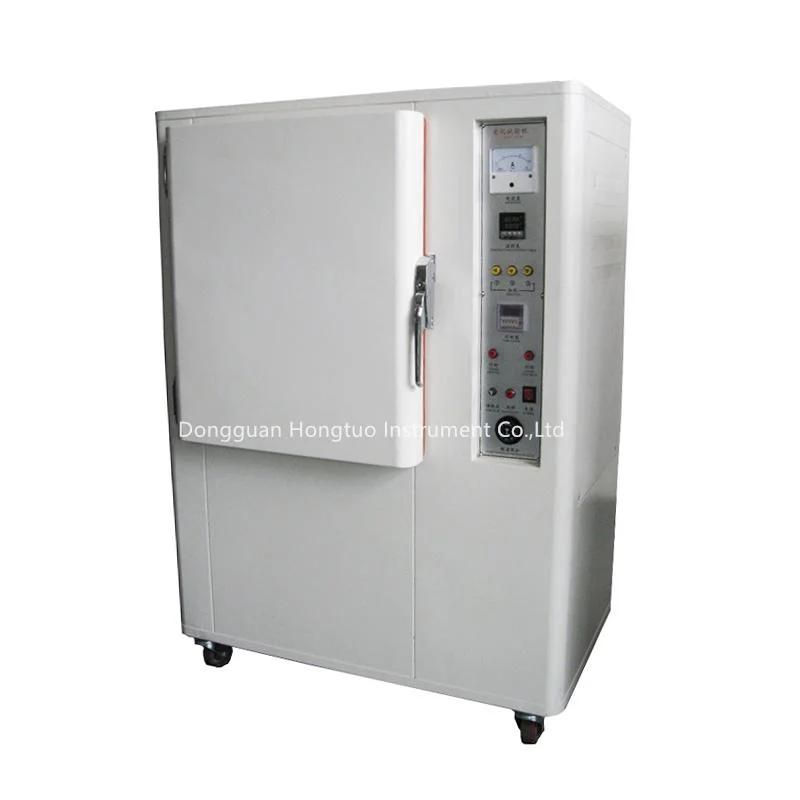

DH-YA Yellow Aging Resistance Test Chamber, Anti Yellowing Aging Testing Machine

Application

Yellowing resistance aging test chamber can provide the simulative heat of the sun and ultraviolet radiation environment of space. It is used for observing the anti-yellowing degree of the sample after a period of time effected by the ultraviolet ray and the temperature. Grey stain can be used for reference standard, to judge it's yellowing degree. Products will change their color when radiated by the sun or influenced by the environment of the container. Use the UV lamp 300W, so that the experiment can be finished in a short time. The machine can also be used as an aging tester or an oven, presenting a multi-function machine.


Features

can do two kinds of testing: aging and anti-yellowing

Aging: the machine can promote the increase of sulfur rubber deterioration, to calculate the change rate of tensile and elongation before and after heat. It's generally thought that test for one day at 70°C, in theory as exposed to the atmosphere for 6 months.

Anti-yellowing: the machine stimulate the atmosphere environment, driven by the sun ultraviolet radiation. It's generally thought that the appearance change at 50°C for 9 hours, in theory as exposed to atmosphere for 6 months.


Specification

Inner Box Size:	40×40×50cm
Temperature Range:	Normal Temperature~200°C
Control Mode:	Automatic Calculation Controller
Temperature Display:	0.1°C
Control Accuracy:	± 3°C
Distribution Accuracy:	± 1°C(at-100°C)
Time Memory:	0-999 hours, Power Failure Memory Type, with Buzzer
Wheel Speed:	45cm,10±2 round/ min
UV Light Source:	UV300W Bulb
Standard Accessories:	Shelf Board 2 pieces
Heating Method:	Hot Air Circulation
Security Devices:	Over-temperature power-off indicator light; Safety overload switch ammeter
Manufacturing Material:	Internal Stainless Steel SUS304; External Advanced Baking Varnish
Outside Dimension (L×W×H):	91×55×100 cm
Weight:	approx. 87 kg
Power:	1#, AC220V, 15A
Standard:	JIS-P8127; ASTM D1148

Packaging & Shipping

Company Information

We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.




Certification
