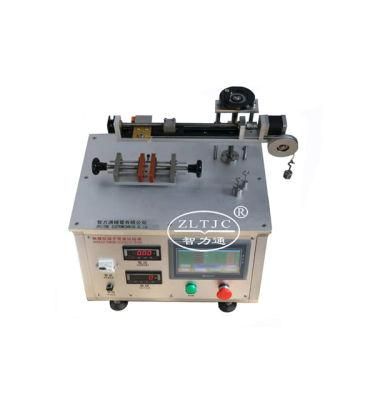

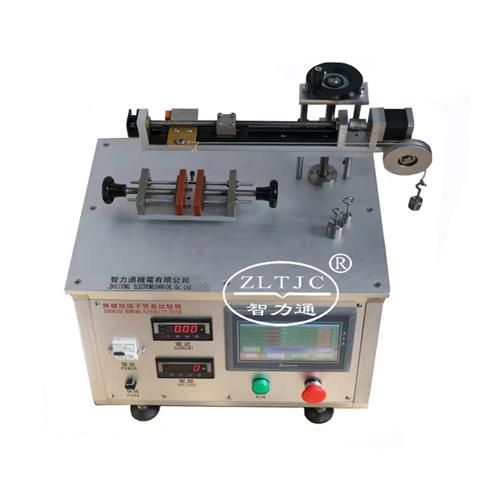

Screwless Terminal Deflection Test Apparatus


Product details:Model ZLT-DW1P

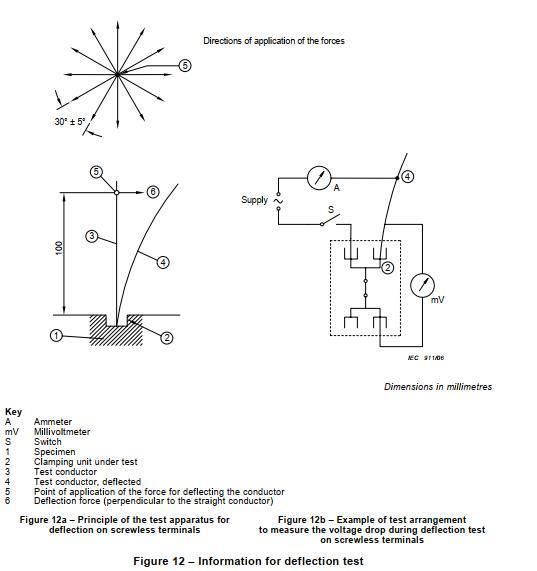

 To determine the deflection test for screwless terminal and voltage drop across clamping unit under test, in accordance with IEC60884-1 Figure 12,IEC 60669-1 Figure 10.

The apparatus consists of  on/off current, current value and voltage drop value measuring for deflection terminal in 12 positions automatically, also determine whether it is qualified or not.

Standard Outfit:

With marked angle of 12 direction on the platform, in the direction of each rotation angle : 30±2 degree deflection, rotation angle :0-360 customizable to any angle,

1 electric driver to make starting point of specimen varied by 10 and 20 degree from original point.

Mass:  0.2 N, 0.5N & 1N

PLC controller: Preset test time, varied degree, voltage drop time.

1 control circuit for power supply with continuous current, AC 0-25 adjustable,
output  voltage:≤12V

Current display: range AC 0~30 A,  automatically cut off output and alarm if more than 30A .

Voltage drop display: range AC 0~200 mV,  automatically cut off output and alarm if more than 200mV,  voltage drop test range :1~1000 mV; accuracy :1%
Voltage regulator: 500VA

Power Supply : Single phase, 220V, 50 Hz
