• Model NO.：WDW
• Accuracy Grade：1
• Load Way：Mechanical Load
• Loading Method：Dynamic Load
• Display：Computer
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Trademark：CHENGYU
• Origin：China
• HS Code：9024101000
• Production Capacity：5000

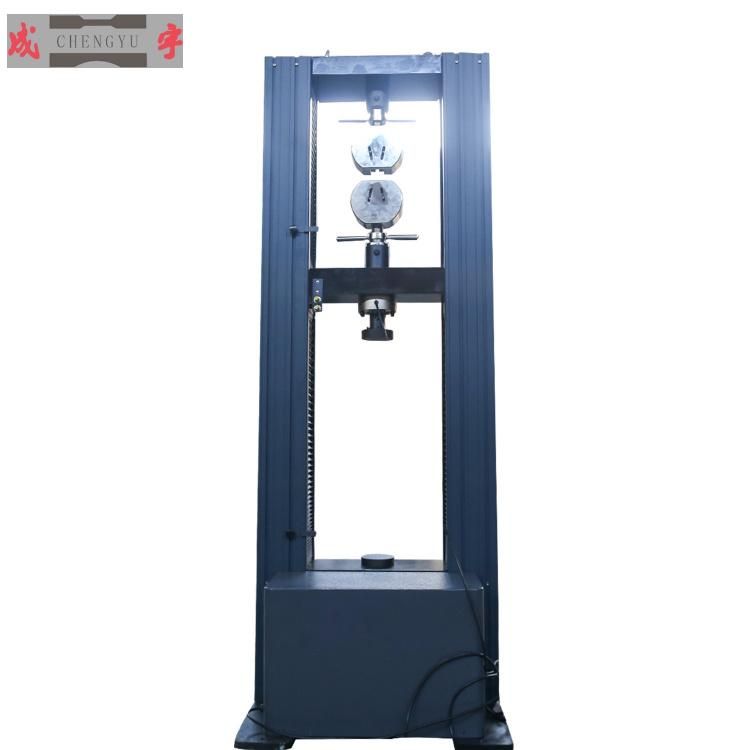

Model

WDW-100M

Max. Testing Force

100kN

Character

Adopting TECO servo systems and servo motor, with full-digital Measure control system

Machine Stiffness(kN/mm)

300

Measure Range of Testing Force

2%-100% of the Max. testing force

Accuracy of Testing Machine

Over ±1% than the value display

Accuracy of Deformation Measure

±1%

Measure of Cross-beam Displacement(mm)

Discrimination 0.001

Accuracy of Testing Force Value Display

Over ±1% than the value display

Measure Range of Deformation

2-100%

Measure Range of Large Deformation

10~800(optional)

Accuracy of Large Deformation

With in ±1% of the value display

Discrimination of Displacement(mm)

0.001

Adjustment Range of Force Control Speed

0.001~10%

Accuracy of Force Control Speed

≤±1%

Adjustment Range of Deformation Speed

0.00025 /S~0.0025 /S

Control Accuracy of Deformation Rate

≤±1%

Adjustment Range of Displacement Rate

0.01mm/min~500mm/min;(random setting)

Accuracy of Displacement Rate and Space

≤±1%

Tensile Volume(mm)

600

Width of the Testing Space(mm)

470

Overall Dimension (mm)

845 ×654×2176

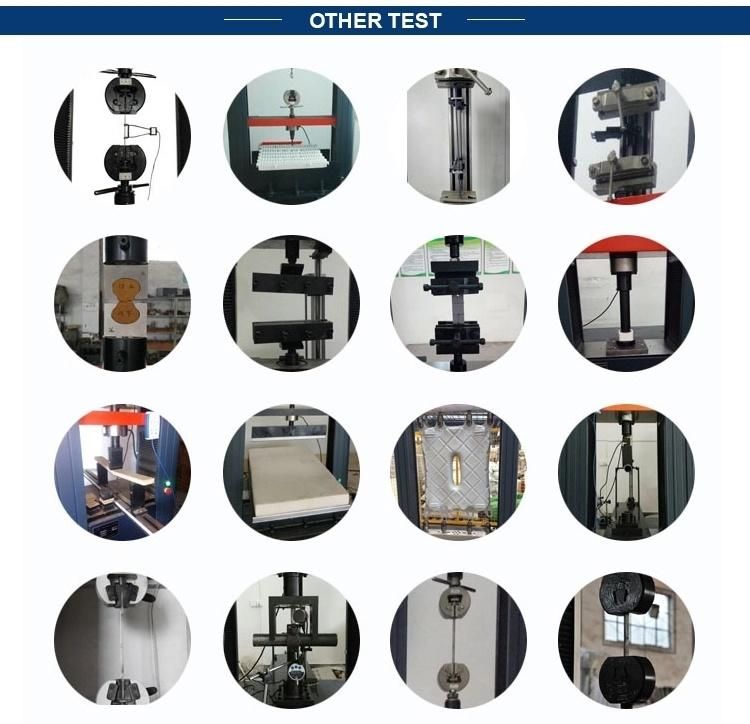

Clamping Type

Standard Refiguration: wedge tensile,compression, bending optional implement,wedge, plate and any other jaw optional implement

Weight(kg)

700

Motor Power(kW)

1.5

Type of Machine

Floor type

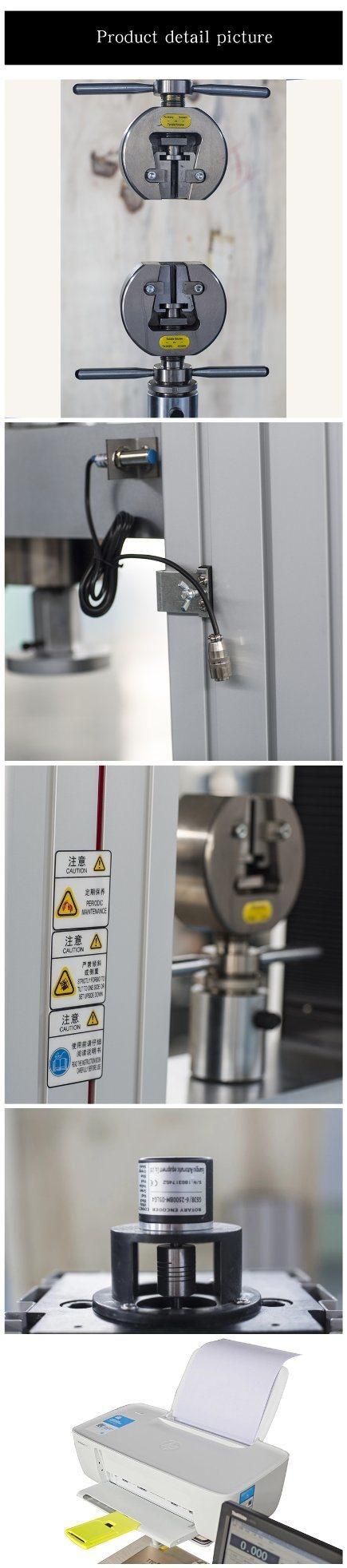

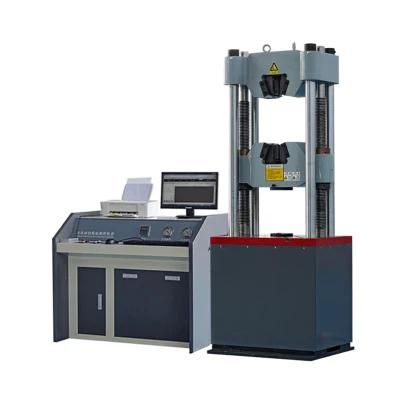

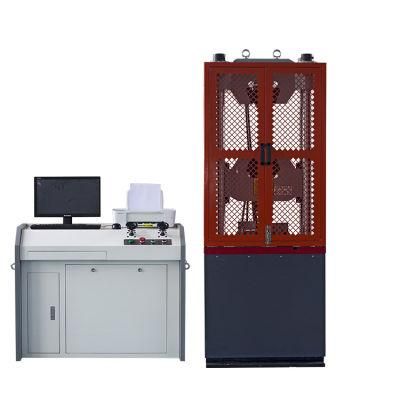

5. Pictures
























FAQ

1. Are you a manufacturer?
Yes, we are one of the largest manufacturer of every kinds of testing machines in China. In general, every machine shipped from our factory provides 12 months of free maintenance, taking into account shipping reasons. We can extend the maintenance period for our customers for 2 months.
2. Do you have after-sales service? How can I ask? What about warranty?
Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
The service does not include mechanical failure due to the following reasons:
(1) Wrong operation;
(2) Privately modified;
(3) Failure caused by non-equipment itself
(4) Use environment that is not suitable for equipment operation. Such as high temperature, humidity, corrosive gas or vibration.
(5) Problems caused by movement or transportation.
(6) Consumable components.
(7) Natural disasters
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized? Can I customize my own design on the device?
We can not only provide standard machines, but we can also provide customized machines according to your needs.
At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union,L/C
