Auto Parts Testing Chamber Combined Vibration Temperature Humidity Test Chamber

Guangdong Komeg Industrial Co., Ltd.
  • Power Supply：380V 50Hz
  • Certification：CE, ISO
  • Warranty：1 Year
  • Internal Dimension：W1100 mm*H1000 mm*D1000 mm
  • External Dimension：W1200 mm*H2000 mm*D2450 mm(Chamber)
  • Temperature Range：-70~180degree

Base Info

  • Model NO.：KMVH-1000S
  • Humidity Range：20%~98% R.H.
  • Heating and Cooling Rate：Average 15degree,Min
  • Vertical Expansion Countertop：1000mm*1000mm
  • Horizontal Film Slide：1000mm*1000mm
  • Frequency Range：2~3000 Hz
  • Max Displacement：76 mm P-P
  • Max Sin and Random Excitation Force：2200kg.F Peak
  • Transport Package：Standard Wood Case
  • Specification：Customized
  • Trademark：KOMEG
  • Origin：Mainland China
  • HS Code：90321000
  • Production Capacity：1000sets,Year

Description

Vibration tester parametersMax sinusoidal excitation force2200Kg.f peakMax random excitation force2200Kg.f r.msMax shock excitation force4400Kg.f peakFrequency Range2~3000 HzMax displacement76 mm p-pMax speed2m/sMax acceleration100G(980 m/s2)One class resonant frequency3200 Hz±5%Payload400 kg
Auto Parts Testing Chamber Combined Vibration Temperature Humidity Test ChamberAuto Parts Testing Chamber Combined Vibration Temperature Humidity Test Chamber

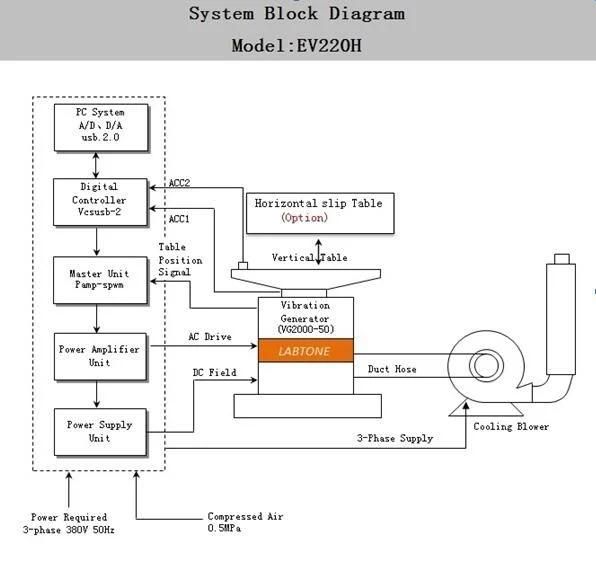

Vibration System working principle
Auto Parts Testing Chamber Combined Vibration Temperature Humidity Test ChamberAuto Parts Testing Chamber Combined Vibration Temperature Humidity Test ChamberAuto Parts Testing Chamber Combined Vibration Temperature Humidity Test Chamber
FAQ

Q1. What are your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Q2. What are your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?
A: EXW, FOB, CIF.

Q4. How about your delivery time?
A: Generally, it will take 40 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the fixtures.

Q6: What about the product' services and quality?
A: Each instrument must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provides video training to show you how to install & operate.
We can arrange engineer to train the operation of equipment to customer's company when you need.

Q7: How to choose the most suitable products?
A: Our professional team will give you the best suggestion, when you need some products to make the test, just be patient to tell us the information about your test sample, the parameters you're required. Our team may help you to find the best one.

Auto Parts Testing Chamber Combined Vibration Temperature Humidity Test Chamber
If you need more information about Auto Parts Testing Chamber Temperature Humidity Vibration Combined Laboratory Combined Test Equipment, please don't hesitate to contact us.
