CE Certification Vertical Vibration Test Machine Meet ISO 13355, Ista 3A and Ista 6- Amazon
Ai Si Li (China) Test Equipment Co., Limited- Type：Vibration Testing Machine
- Maxcapacity：<1000KN
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
Base Info
- Model NO.：ES-6
- Weight：500-1000Kg
- Power Source：AC380V
- Force：6000n
- Vibration Table：W300*D300mm
- Frequency：5~2000Hz
- Vibration Direction：Vertical Vibration
- Moving Coil Weight：6.5 Kg
- Max. Acceleration：100g
- Displacement (P-P)：25mm
- Application：Plastic
- Transport Package：Wooden Case
- Specification：ES Series
- Trademark：ASLi
- Origin：Guangdong, China
- HS Code：85141090
- Production Capacity：30 Sets,Month
Description
SPECIFICATIONS FOR High Frequency Electrodynamic Vibration ShakerModel Rated Sine
Force (N) Rated Random Force (N) Frequency
Range (Hz) Rated Acceleration (m/s2) Rated Speed (m/s) Rated displacement
(p-p) mm Max. Loading (Kg) moving coil (Kg) Dimension of Moving coil (mm) ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150 ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230 ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230 ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230 ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240 ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320 ES-30 30000 30000 3-2800 1000 1.8 5l 450 40 Φ450 ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450 ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450
2) Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3) Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4) Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
6) New duct design and enhance the cooling effect.

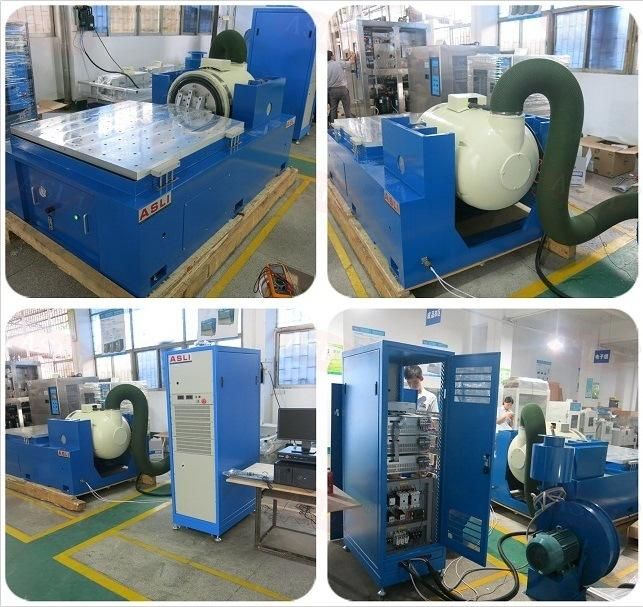

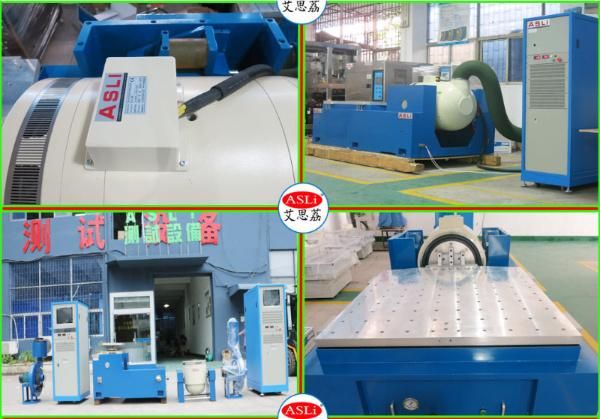

Detailed Images
Force (N)
Range (Hz)
(p-p) mm
Main Features
1) Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.2) Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3) Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4) Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
6) New duct design and enhance the cooling effect.
