Stzst-8 New Standard Cement Jolting Table
Shanghai Civil & Road Instrument Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：58kgs
- Type：Cement Mortar Mixer
- Maxcapacity：No
- Accuracy Grade：1
- Load Way：No
Base Info
- Model NO.：STZST-8
- Loading Method：No
- Display：Digital
- Control：Digital Control
- Weight：58kgs
- Power Source：AC220V
- Oil Cylinder Position：No
- Product Name：Stzst-8 New Standard Cement Jolting Table
- Complies to：ISO679: 1989
- Jolting Weight：20kg
- Drop：15mm
- Jolting：60 Revolutions Per Minute
- Table Tray Weight(Include Link Lever)：13.75kg;
- Voltage：AC220V
- Features：Closed Type Jolting Table ,Clean Operation
- Transport Package：Wooden Case
- Specification：0.31CBM
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. STZST-8 Loading Method No Display Digital Control Digital Control Weight 58kgs Power Source AC220V Oil Cylinder Position No Product Name Stzst-8 New Standard Cement Jolting Table Complies to ISO679: 1989 Jolting Weight 20kg Drop 15mm Jolting 60 Revolutions Per Minute Table Tray Weight(Include Link Lever) 13.75kg; Voltage AC220V Features Closed Type Jolting Table ,Clean Operation Transport Package Wooden Case Specification 0.31CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description

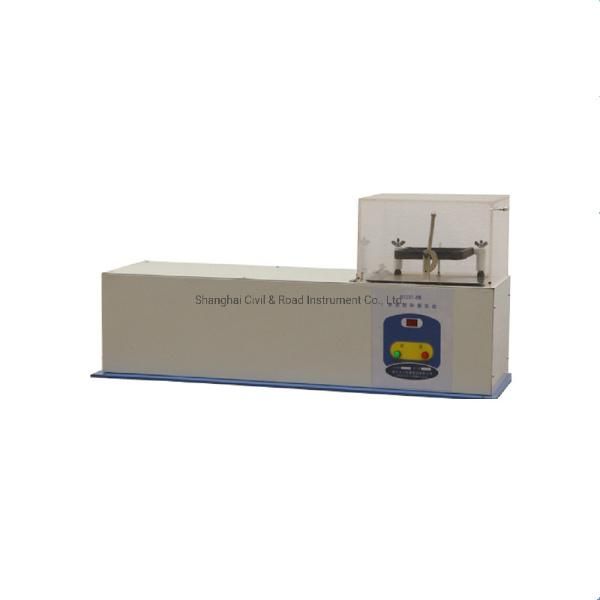

STZST-8 New Standard Cement Jolting Table
Description: This machine consists of a mould table seated on a rotating cam driven at 60 revolutions per minute. The apparatus is supplied with a switch box, incorporating a push button start/stop control, and automatic stop control at end of test.
Parameters:
| Complies to | ISO679: 1989 |
| Jolting weight | 20kg |
| Drop | 15mm±3mm |
| Jolting | 60 revolutions per minute |
| Work cycle | 60/min |
| Table tray weight(Include link lever) | 13.75kg |
| Voltage | AC220V |
| Motor power | 110W |

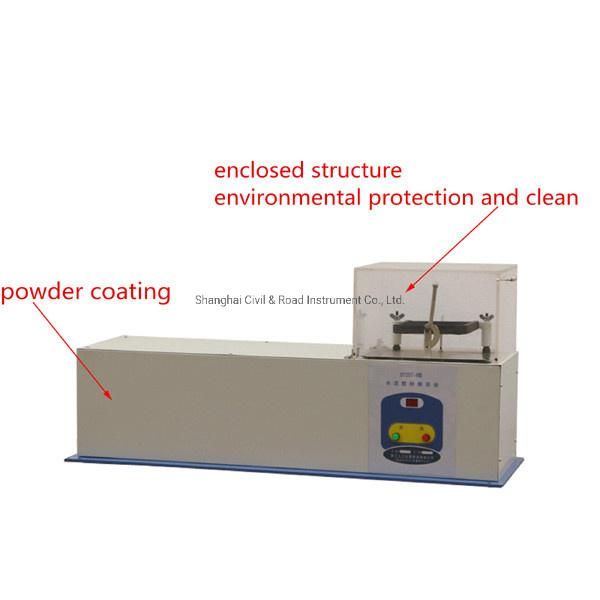

Features:Closed type jolting table ,clean operation and environment protection
