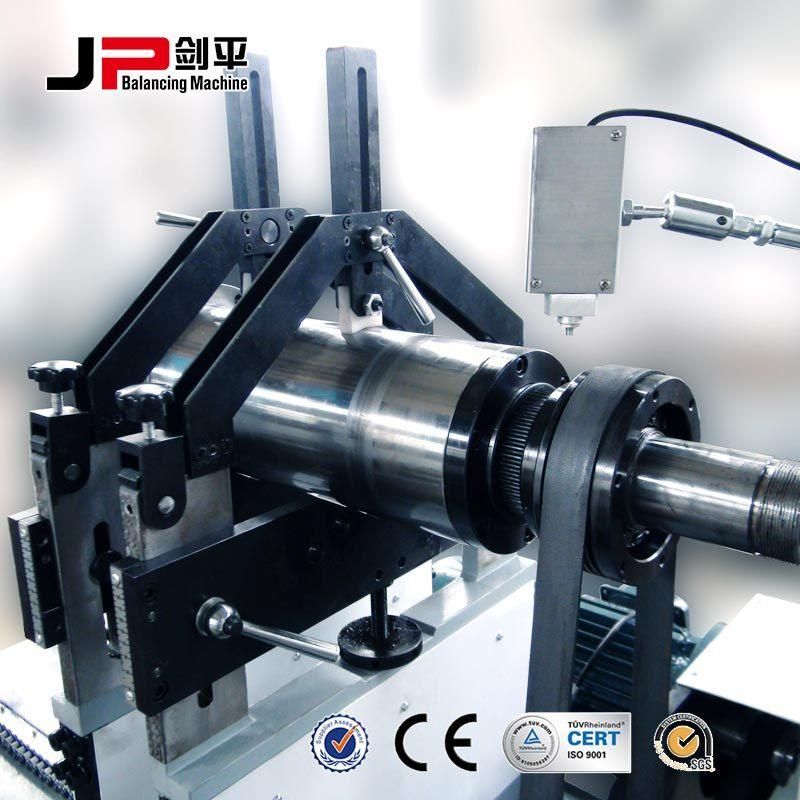

Horizonbal Dynamic Balancing Machine for Motor or Generator Rotor
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd.- Max Diameter of Workpiece：1000mm
- Mass Scope of Workpiece：160 Kg
- Type：Balancing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：PHQ-160H
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Weight：500-1000Kg
- Power Source：AC380V
- Oil Cylinder Position：Under
- Product Name：Belt Drive Dynamic Balancing Machine
- Application：160 Kg Motor Rotor
- Gross Weight：500 Kg
- Drive Power：1.5 Kw
- Power Supply：380V, 50 Hz
- Certificate：Ce,ISO,SGS,BV.
- Warranty：12 Months
- Balancing Speed：1050 R,Min
- Achievable Residual Unbalance：0.5 G.mm,Kg
- Unbalance Reduction Ratio：90%
- Transport Package：Fumigated Wood Box
- Specification：1700*750*1100mm
- Trademark：JP Balancing machine
- Origin：Shanghai
- HS Code：90311000
- Production Capacity：100 Sets, Month
Description
Production Description
• Specially designed brackets transmit mechanical force with low vibration damping and high rigidity
• Durable and reliable sensor possesses good linearity
• Permanent calibration brings high accuracy with a permission of large initial unbalance amount
• Belt-driving offers higher precision and easier operation
• Advanced electrical measuring system and friendly man-machine interface
• Modular design offers a wide range of application
Range of Application
This balancing machine is widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency
Packaging
Certificates
