• Model NO.：GD-3536D
• Dimension：520*380*310mm
• Reference Standard：ISO 2592, ASTM D92
• Other Function：Automatic, with RS232 Communication Port
• Transport Package：Wooden Case for Gd-3536D
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：100 Sets, Month

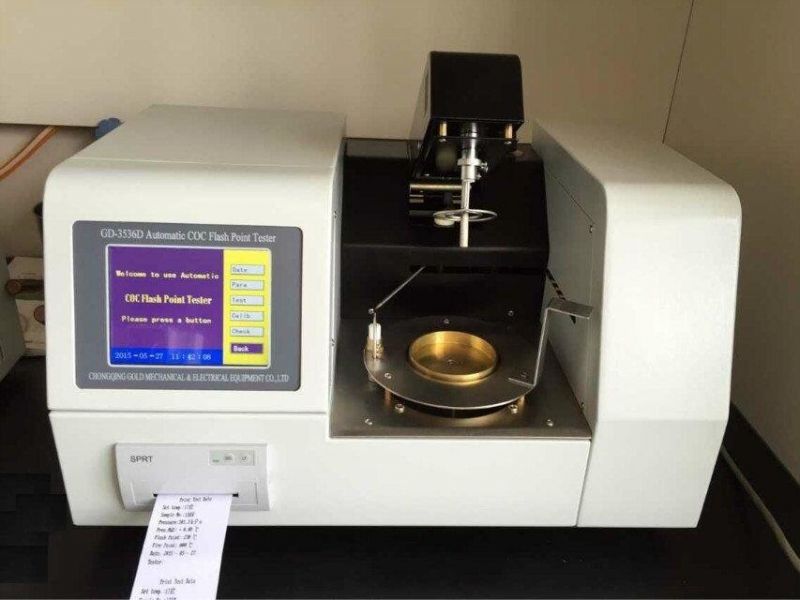

Product nameGD 3536D Fully-Automatic Cleveland Open Cup COC Flash Point Tester Power supplyAC(220±10%)V, 50HzFlash point determinationRange:Ambient to 400ºC
Repeatability:  ≤8ºC
Reproducibility: ≤17ºC
Accuracy: 0.1ºCHeating rateCorrespond with GB/T3536 and ASTM D92Igniting modeElectric ignition,
Gas flame diameter: 3.2mm~4.8mmAmbient temperature(10 ~ 40)ºCRelative humidity≤80%Maximum power consumption500WDimension520*380*310mm



GD-3536 Series ASTM D92 CLEVELAND OPEN CUP FLASH POINT TESTER:

Parameter

GD-3536

GD-3536-1

GD-3536A

GD-3536D

Temperature range

Ambient temperature~400ºC

Ambient temperature~400ºC

Ambient temperature~400ºC

Ambient temperature~400ºC

Ignition mode

Ignite once manually

Ignite once manually

Ignite once manually

Automatic

Temperature display

Thermometer

LCD

Color LCD

Color LCD

Printing

No

No

Yes

Yes

Communication port

No

No

No

Yes

Other function

Manually adjust heating rate

Automatically control temperature and display by LCD

Automatic

Automatic, with RS232 communication port

Dimension

350*290*350mm

340*320*450mm

410*360*420mm

520*380*310mm

Detail Information:
