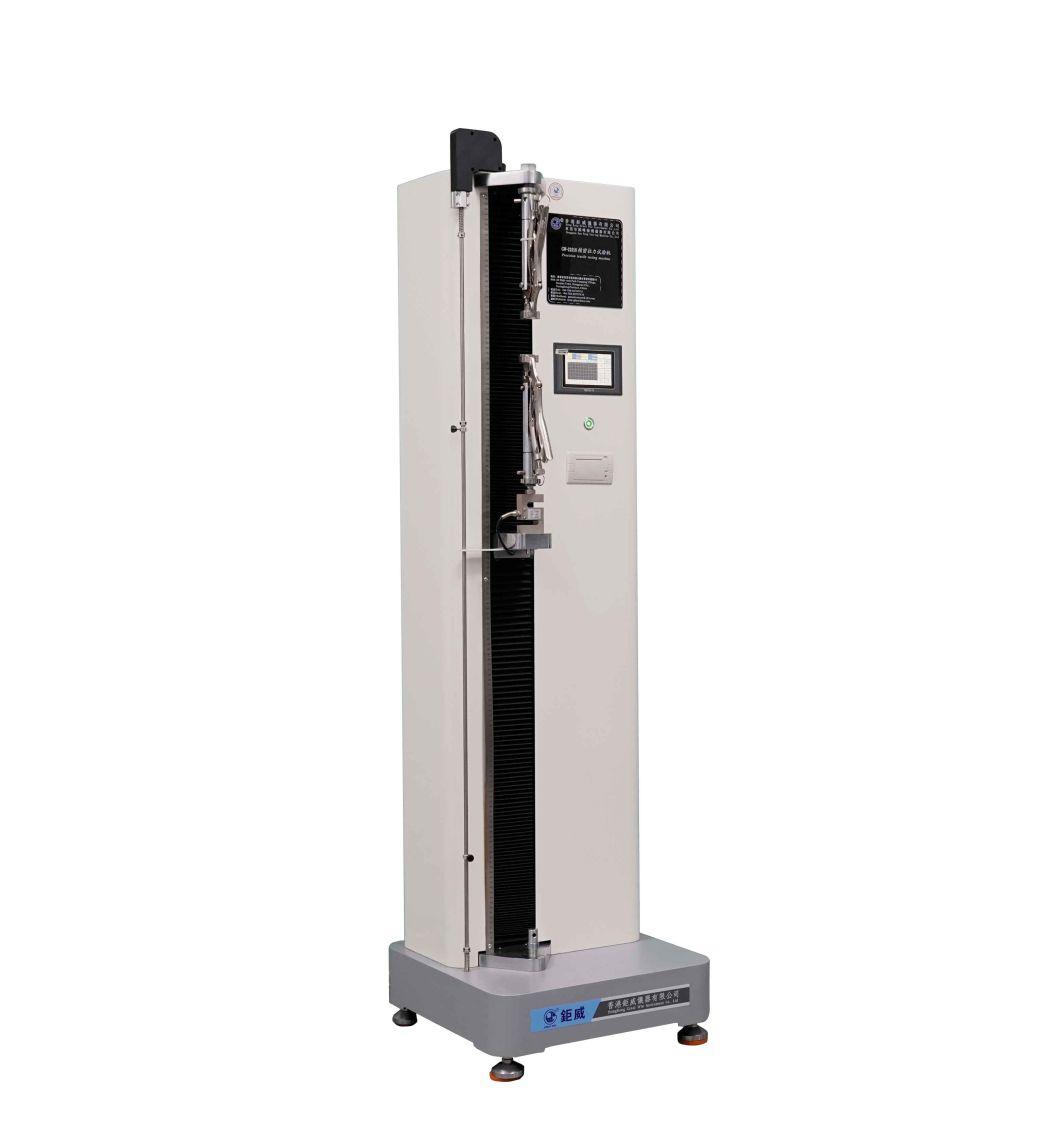

Microcomputer Touch Screen Tensile Test Testing Machine (GW-21010)

GREAT WIN INSTRUMENT CO., LTD.
  • Warranty：1 Year
  • Max Diameter of Workpiece：700mm
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Maxcapacity：>1000KN
  • Accuracy Grade：0.5

Base Info

  • Model NO.：GW-21010
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Electric Control
  • Capacity (Optional)：500kg
  • Unit (Switchable)：Kgf, Lbf, N, Kn
  • Accuracy：±1%
  • Stroke (Exclude The Grips)：0-800mm
  • Speed：0-500mm,Min Adjustable
  • Motor：AC Motor with Variable Freq. Drive
  • Power：220V,15A
  • Transport Package：Standard Export Safety Packing
  • Specification：120KG
  • Trademark：Great Win
  • Origin：China
  • HS Code：9024800000
  • Production Capacity：500 Pieces,Year

Description

Capacity (optional)
 500kgUnit (switchable)kgf, lbf, N, Kn
 Accuracy
0±1%Stroke (exclude the grips)0-800mm
 Speed0-500mm/min adjustable
 MotorAC motor with variable freq. drive
 Power220V,15A



•Standard for:
ISO7500/1,JJG475-88,ASTME4,DIN5122,
JISB7721/B7733,EN1002-2,BS1610,CNS9471/9470
Microcomputer Touch Screen Tensile Test Testing Machine (GW-21010)Microcomputer Touch Screen Tensile Test Testing Machine (GW-21010)Microcomputer Touch Screen Tensile Test Testing Machine (GW-21010)Microcomputer Touch Screen Tensile Test Testing Machine (GW-21010)Microcomputer Touch Screen Tensile Test Testing Machine (GW-21010)




Microcomputer Touch Screen Tensile Test Testing Machine (GW-21010)
What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
