• Model NO.：STXD-2
• Accuracy Grade：1
• Load Way：No
• Loading Method：No
• Display：Manual
• Control：No
• Weight：60kg
• Power Source：No
• Oil Cylinder Position：No
• Product Name：Electric Relative Density Apparatus
• Determine Soil Max. Density and Min. Voi：Dia 5X12.7cm
• Weight of The Hammer：1.25kg 32times,Min
• Working Voltage：AC220V
• Dimension：400X570X990mm
• Package Weight：90kg
• Transport Package：Wooden Case
• Specification：0.25CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STXD-2 Accuracy Grade 1 Load Way No Loading Method No Display Manual Control No Weight 60kg Power Source No Oil Cylinder Position No Product Name Electric Relative Density Apparatus Determine Soil Max. Density and Min. Voi Dia 5X12.7cm Weight of The Hammer 1.25kg 32times/Min Working Voltage AC220V Dimension 400X570X990mm Package Weight 90kg Transport Package Wooden Case Specification 0.25CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

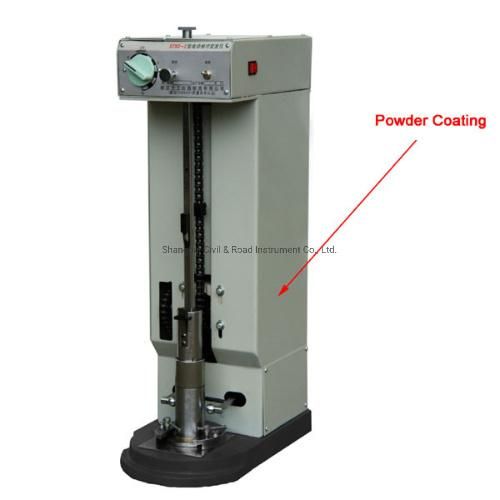

STXD-2 Electric Relative Density Apparatus

Description:The apparatus is used to determine liquid and plasticlimits of soil, thus to provide reliable data to classify soil types, calculate natural consistency and plasticity index.Digital display technology is adopted for this machine and automatical measurement can be performed.
Specifiction:

Instrument uses:The instrument is in accordance with  the "regulations of soil test" SL237-1999, "regulations of the road test" JTJ051-93 standard. The instrument is suitable for non-aggregated soil with particle diameter less than 5 mm, and the sample with particle size of 2-5 mm has a mass less than 15% of the total mass of the sample. The maximum density and minimum void ratio of soils are measured to calculate their relative density.

The main structure of the instrument:The instrument mainly consists of fuselage, control panel, transmission mechanism, measuring barrel, vibration bell and other parts.

Specification:


Usage	Determine soil Max. density and Min. void ratio
Vessel size	Φ5×12.7cm
Weight of the hammer	1.25Kg 32times/min
Diameter of rammer	50
Compaction Frequency	32 times/min
Working voltage	AC220V
Dimension	400×570×990mm
Package weight	90kg
