• Model NO.：KTS-D Series
• Temperature Fluctuation：≤1ºC
• Air Door Conversion Time：Within 5 Sec
• Impact Transition Time：Within 5 Min
• Structural Features：Overall Chamber Structure
• Cooling Method：Water-Cooled Condenser
• Compressor：German Bitzer or Copeland Compressor
• Test：Thermal Stress Testing
• Cable Holes：Diameter of 50mm, 100mm, 150mm
• Transport Package：Standard Exported Fumigation Wooden Case
• Specification：Standard and Customized
• Trademark：KOMEG
• Origin：Dongguan China
• HS Code：90321000
• Production Capacity：1000PCS,a Year

      SpecificationsNote:1. We reserve the right to change specifications without prior notice  2. Customized sizes and configurations available           ModelKTS-D Series72D100D150D200D252D300DInterior sizeW(mm)450500600670700800H(mm)400450500600600600D(mm)400450500500600650Exterior sizeW(mm)149015401640172017501850H(mm)179018401890200020002000D(mm)160017001830185019301980Test weight ( KG )51012151820Low Temp. chamber -80 °C~ -10 °CPre-heat time +20 °C~ -80 °C  ,Within 60 mins Test. chamber -65 °C~ +150 °CHigh Temp. chamber +60 °C~ +200 °CPre-heat time +60 °C~ +200 °C  ,Within 20 minRecovery timeHigh-Temp Exposure 30 minLow-Temp Exposure 30 minRecovery time within 5 minSafety deviceNo fuse breaker, overpressure overheat and over current protection for compressor,over-temperature protection,
overload protection for the blower, dry heat protectionStandard accessoryCable port(portΦ50mm)*1,   shelves*2Interior materialStainless steel plate ( SUS 304 )Exterior materialBaked painting steel or stainless steel(SUS304)Insulation materialRigid polyurethane Foam+glass fiber woolRefrigeration systemWater CooledSemi-hermetic compressor, cascade  refrigeration system, CFC free refrigerant ( HFC-507 and HFC-23 )ControllerPanel:7-inch LCD Touch Screen panel, Chinese or English display selectableOperation model: Program or fixpoint runningMemory capacity:120programs,1200steps , all repeat 999cycles , part repeat 99 cycles.Accuracy:Temp.:0.1% of F.S±1 digit     Humidity:0.1% of F.S±1 digitInput:Temp.:pt-100                Humidity:pt-100 or  ~ 5V DCVAmbient Temp.+5 °C~ +35 °C (41 ~ 95 ° F)PowerAC 380±10 %  50Hz,3 phase 4 wires +Ground Wires

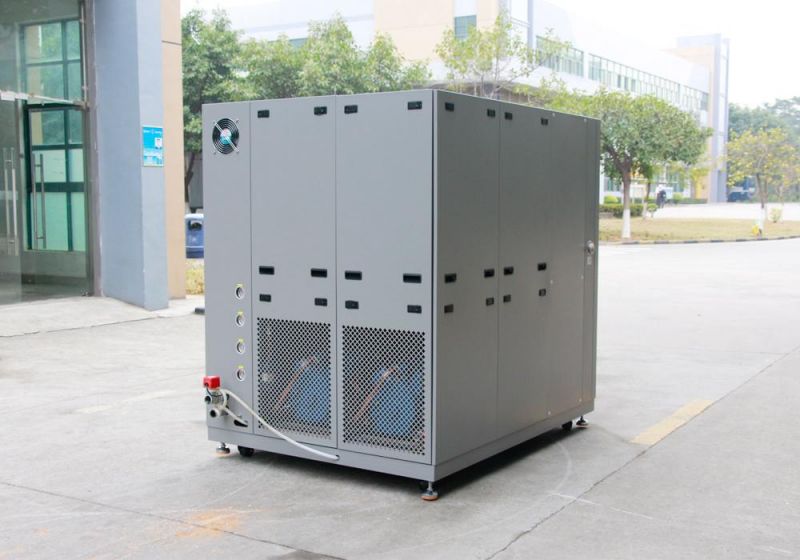

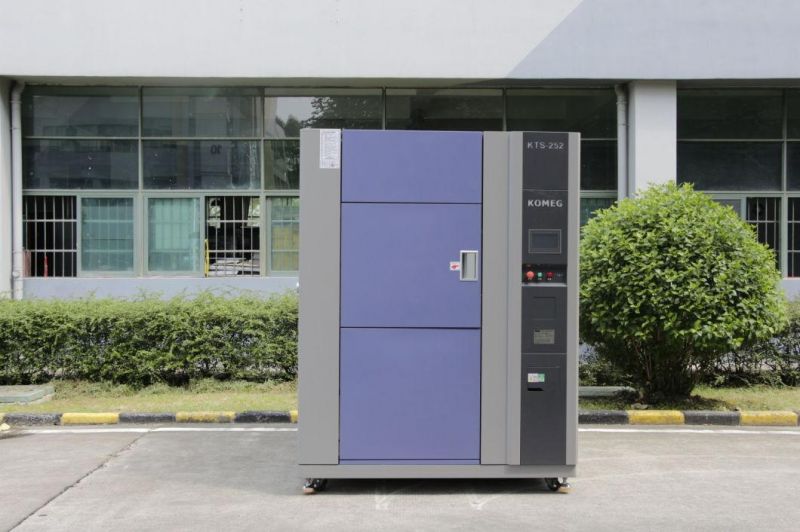

IV.More Details of Thermal Shock Test Chambers



V. Our Company


VI.FAQ

Q1. Quality Control System?
A: KOMEG Technology Ind Co., Ltd strictly perform 6S rule, and apply the ISO9000 and ISO14001 Quality control system and strictly carry out in every production stage: from the materials and spare parts suppliers selecting, checking before stocking, to test chambers commissioning, packing, delivery.

Q2. Trade term supported?
A: KOMEG support EXW, FOB, CNF, DAP, DDU, DDP, etc.

Q3. Payment Supported?
A: KOMEG support T/T, L/C AT SIGHT, etc.

Q4. Main Markets:
A: English and Russian markets like Asia, Europe, Oceania, America;
Mainly customers are from industries of electronics, materials testing labs, battery, automotive, LED, Solar panels, etc.
