• Model NO.：HTJY-80S
• Stirring Time：0~99 Seconds
• Standing Time：0-9 Minutes 59 Seconds
• Storage Capacity：50 Groups Data
• Voltage Limit Setting：20kv~70kv
• Voltage Withstand Time：0~10 Minutes
• Temperature：5~40ºC
• Humidity：≤80%Rh
• Dimension：420×380×410mm
• Weight：28kg
• Transport Package：Wooden Case or Carton
• Specification：see details
• Trademark：HV TEST
• Origin：China
• HS Code：9030849000
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. HTJY-80S Stirring Time 0~99 Seconds Standing Time 0-9 Minutes 59 Seconds Storage Capacity 50 Groups Data Voltage Limit Setting 20kv~70kv Voltage Withstand Time 0~10 Minutes Temperature 5~40ºC Humidity ≤80%Rh Dimension 420×380×410mm Weight 28kg Transport Package Wooden Case or Carton Specification see details Trademark HV TEST Origin China HS Code 9030849000 Production Capacity 200 Sets Per Month

Product Description

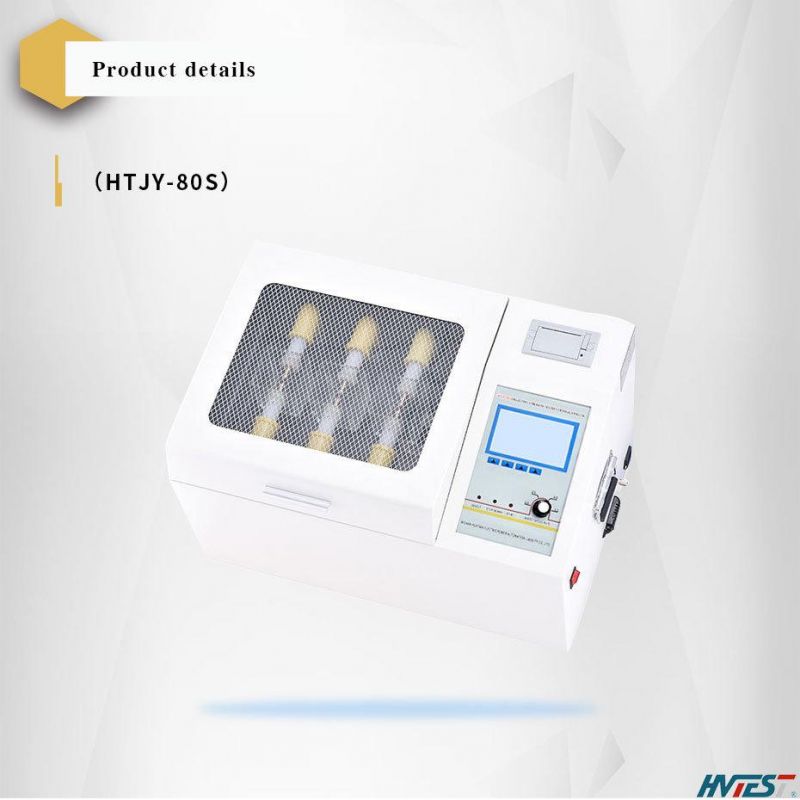

Product overview

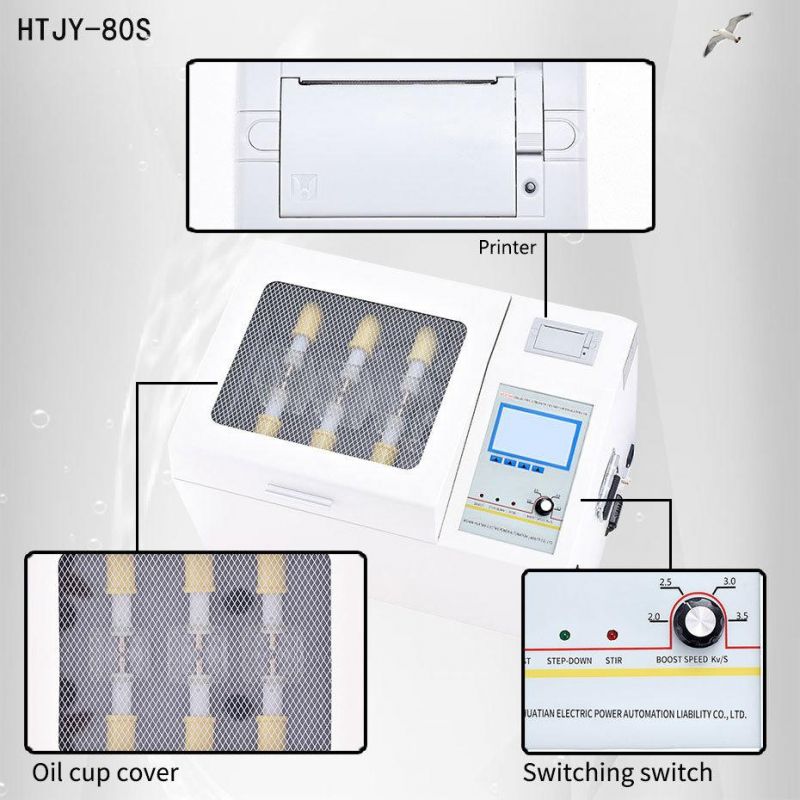

This equipment was designed on basis of GB-86Oil-insulating testing, the process and result displayed by LCD, built-in EEPROM , can save 50 groups test results, all work can finished by mouse, test results printed by micro printer. This equipment is easy to operate, with powerful functions, stable and reliable, with strong anti-jamming ability, without death halt during the test.

Products features
1. This process and test results are displayed by LCD.
2. Built-in EEPROM can store more than 50 groups test results.
3. All work can be finished by mouse, test results are printed by micro printer
4. This equipment is easy to operate, with powerful functions, stable and reliable, with strong anti-jamming ability, without death halt during the test.

Technique parameters

Input voltage	AC 220V±10%
Output voltage	AC 0~80KV
A cup, B cup, C cup	Can be arbitrarily chosen and combined
Voltage boosting speed	2KV/s±10%
Accuracy degree	3
Number of times of continuous test	1~6
Stirring time	0~99 seconds
Standing time	0-9 minutes 59 seconds
Storage capacity	50 groups data
Voltage limit setting	20KV~70KV
Voltage withstand time	0~10 minutes
Temperature	5~40ºC
Humidity	≤80%RH
Dimension	420×380×410mm
Weight	28kg

Common problem
1. Is your company a sales company or a manufacturer?

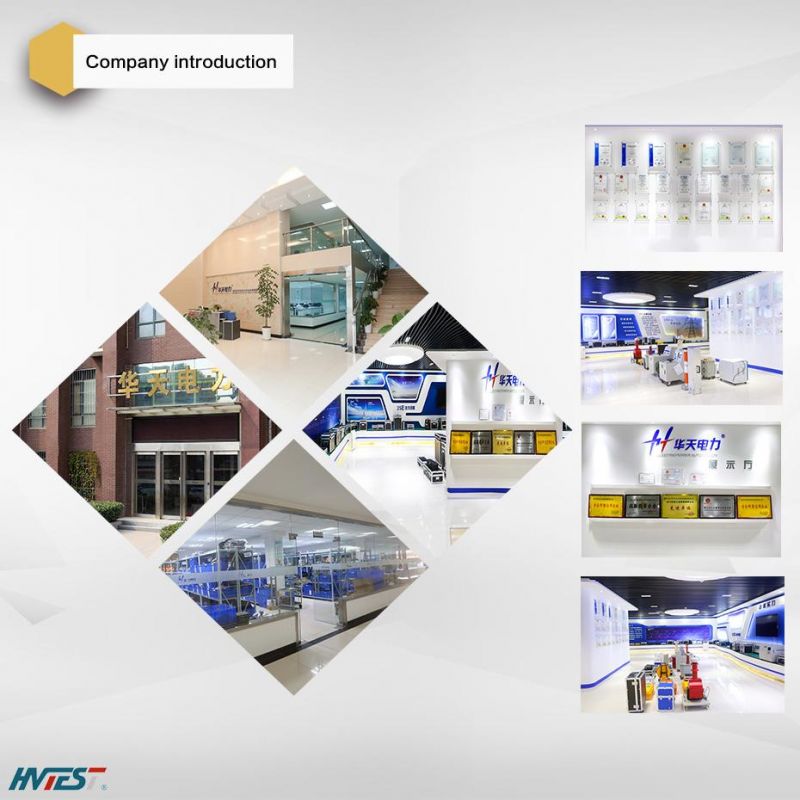

Wuhan Huatian Electric Power Automation CO., LTD.is an industrial and trade enterprise, with its own  factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.

2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is.
After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.

3. Is the quality guaranteed?
In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.

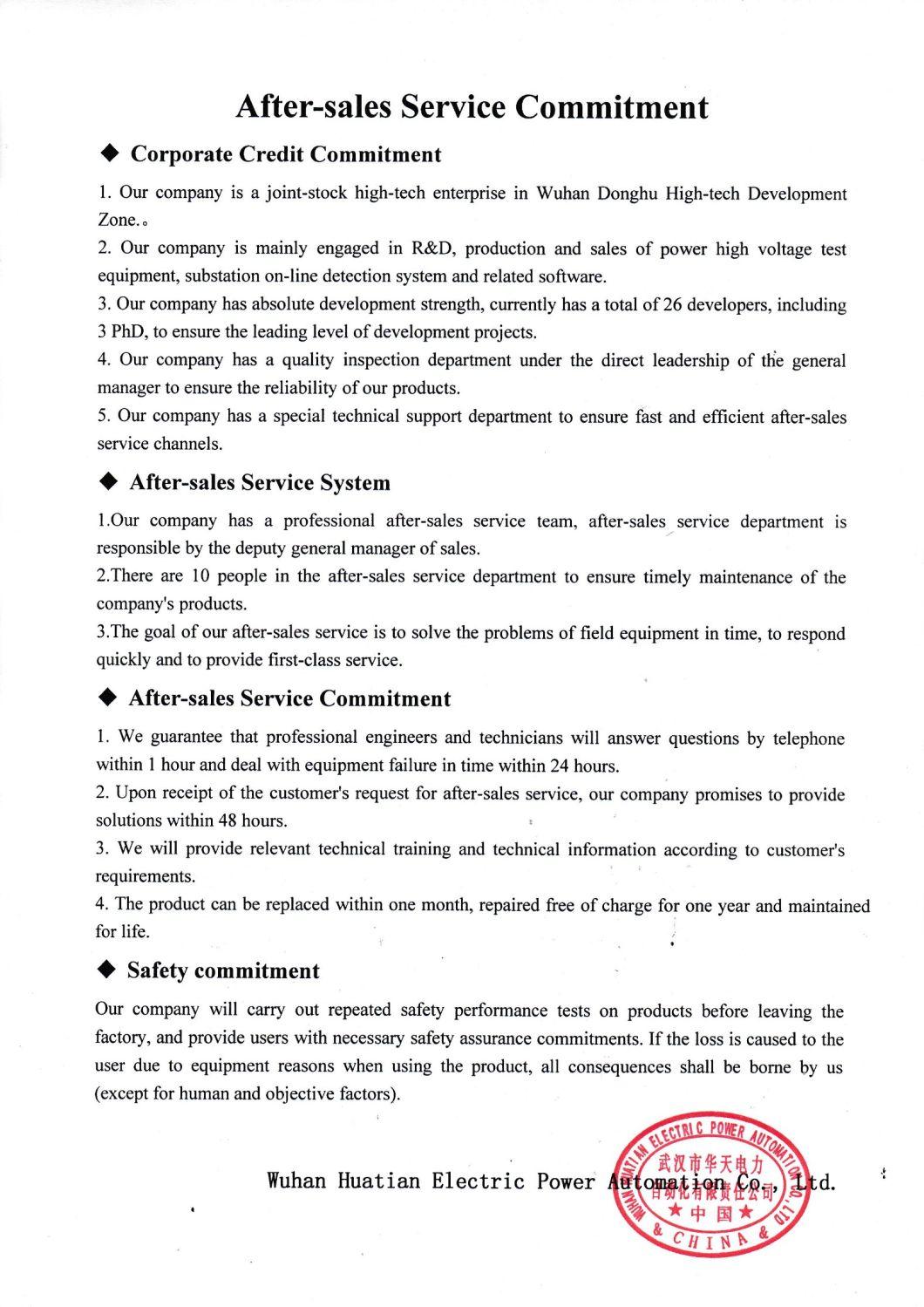

4. What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.

5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
