• Model NO.：GD-265H-1
• Barometric：96~103kpa
• Bath Layer：Double Layer
• Transport Package：Standard Wooden Case
• Specification：ISO
• Trademark：GOLD
• Origin：Chongqing
• HS Code：9031809090
• Production Capacity：20 Sets, Month

Basic Info.

Model NO. GD-265H-1 Barometric 96~103kpa Bath Layer Double Layer Transport Package Standard Wooden Case Specification ISO Trademark GOLD Origin Chongqing HS Code 9031809090 Production Capacity 20 Sets/ Month

Product Description

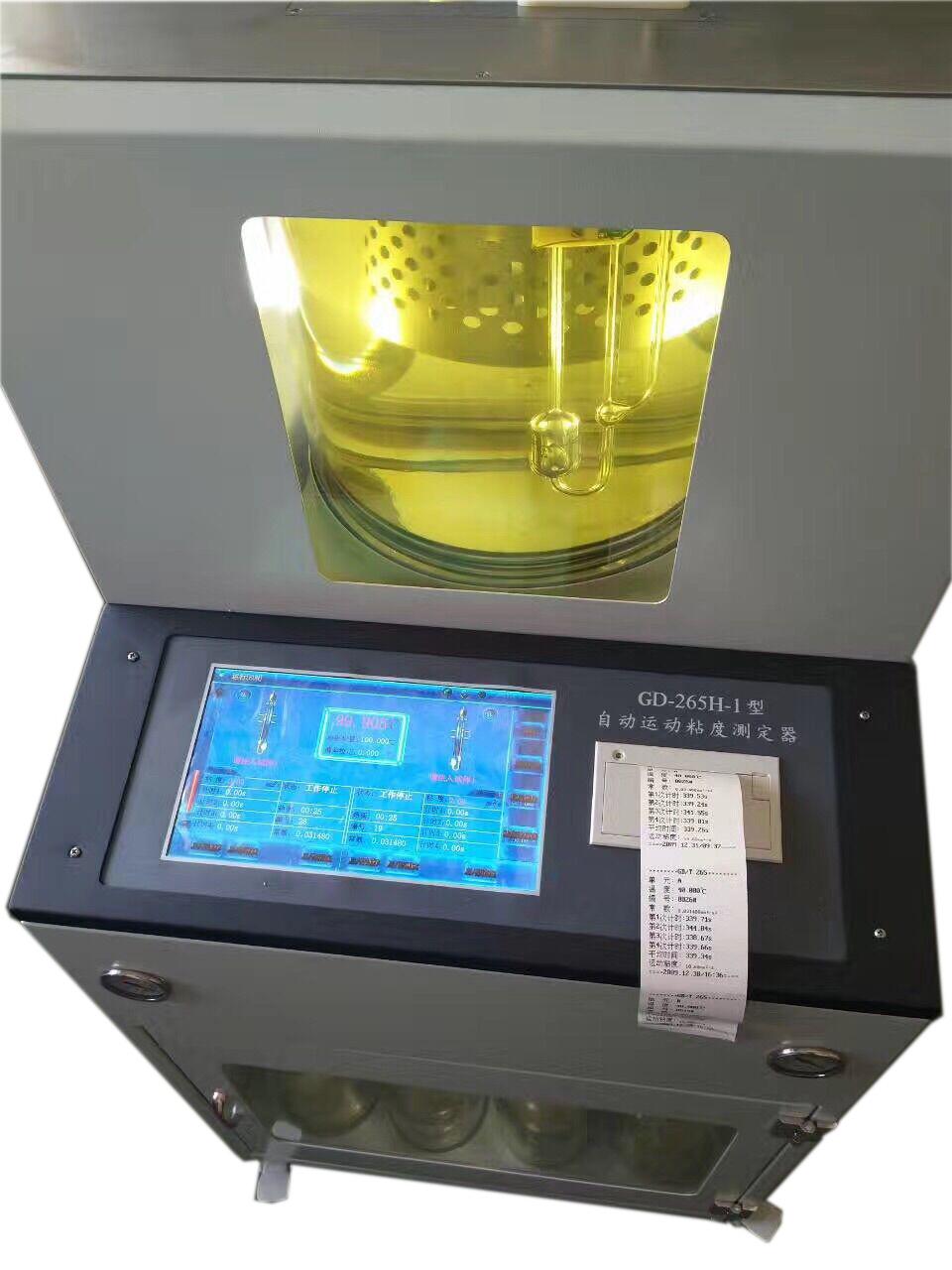

ASTM D445 Automatic Kinematic Viscosity Test Equipment


 Introduction:

The instrument is designed and made as per national standard of People's Republic of China GB/T 265 and

ASTM D445 Petroleum products-Determination of kinematic viscosity and calculation of dynamic viscosity and

GB/T1632-93 Test Methods for Viscosity Number and Limiting Viscosity Number of Polymers in Dilute Solution. It is

suitable to determine Kinematic viscosity, viscosity number, and limiting viscosity number of oils and polymer in

dilute solution. It has been widely used in the field of pharmaceutics, petroleum, chemistry, scientific research,

and metrology.



I. Main technical features:

1. This instrument adopts micro-computer as the central control component. It achieves prompt type operation.

2. This instrument can intelligently control the whole procedure of the test. It achieves the full automation of

keeping temperature constant, time detection, viscosity calculation, viscometer tube cleaning and drying, and

automatically print out test result.

3. This instrument has ability of fault identification and processing. It is convenient for user to analyze and judge

the condition of instrument.




II. Main technical specifications:

1. Viscometer tube: Ubbelohde viscometer (Dilution type); as per GB/T1632-93

2. Measurement precision: As per GB/T265, GB/T1632-93

3. Temperature range: Ambient to 100.0ºC

4. Temperature control accuracy: ±0.1ºC

5. Timing accuracy: ±0.1 s

6. Timing range:0.0s~ 999.9 s

7. Power supply: AC 220V±10%, 50 Hz

8. Maximum power consumption: 2000 W

9. Ambient temperature: 0ºC~40ºC

10. Relative humidity: 20~90% at 40 ºC

11. Barometric pressure: 96 kPa~103 kPa

12. Dimension: 800mm*530mm*610mm(circulating bath and vacuum suction apparatus are not included )



Note:

The instrument is equipped with four sets of photoelectric Ubbelohde viscometer tube assemblies in standard

packing list. The inner diameters for each is 0.8mm,1.0mm,1.2mm and 1.5mm. If the user need other kinds of

viscometer,pls inform us for customizing.
