Loop Resistance Tester, Contact Resistance Tester for High Voltage Circuit Breaker

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • After-sales Service：Life Time Support
  • Warranty：1 Year
  • Type：Contact Resistance Tester
  • Application：Measure Contact Resistance of Circuit Breaker
  • Test Standard：IEC62271
  • Measuring Range：0-1999.9 μΩ Resolution:0.1 μΩ

Base Info

  • Model NO.：GDHL
  • Measuring Current：DC 100A,200A for Different
  • Measuring Precision：0.5 %Rgd+0.05%Fs
  • Display Mode：LCD
  • Product Name：IEC Standard Automatic Circuit Breaker Contact Re
  • Transport Package：Wooden Case
  • Specification：44*34*45CM
  • Trademark：Gold
  • Origin：Chongqing
  • HS Code：9031809090
  • Production Capacity：200PCS,Month

Description

1Rapid test 2Result print 3Upload data to PC



Index

1Measuring range0-1999.9 μΩ Resolution:0.1 μΩ 2Measuring currentDC 100A/200A for different selection 3Measuring precision0.5 %RGD+0.05%FS 4Display modeLCD 5Data storageSave no more than 100 groups of data 6Data connectionRS232 computer interface 7Rated power supplyAC220V 8Size340mm× 280mm × 210mm 9Environment temperature-10 ºC~+40 ºC 10Relative humidity<80%

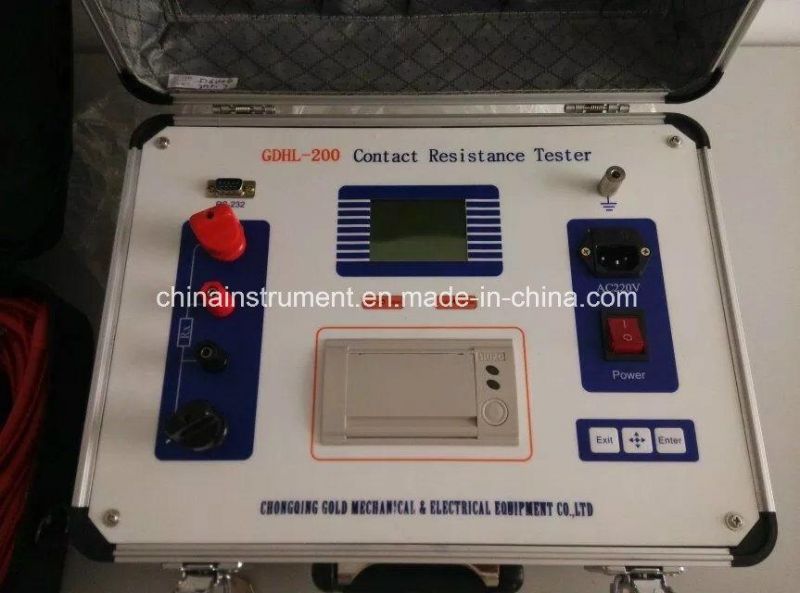

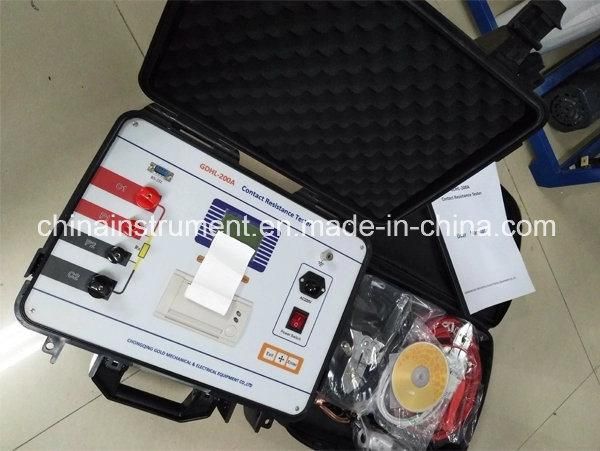

GDHL-200A High voltage circuit breaker loop resistance tester,contact resistance tester more details:
Loop Resistance Tester, Contact Resistance Tester for High Voltage Circuit Breaker
Loop Resistance Tester, Contact Resistance Tester for High Voltage Circuit Breaker
