• Model NO.：XT-50
• Accuracy Grade：1
• Load Way：Mechanical Load
• Loading Method：Static Load
• Display：Shadow
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Without It
• Projection Screen Diameter：180mm
• Workplate Size：110*125mm
• N.W：18kgs
• Table Travel：Longitudinal:10 mm, Lateral: 10 mm
• Name 1：Xt-50 Impact Specimen Notch Projector
• Transport Package：Standard Plywood Case
• Specification：515*224*603mm
• Trademark：CHENJI or OEM
• Origin：China Jinan or Others

Basic Info.

Model NO. XT-50 Accuracy Grade 1 Load Way Mechanical Load Loading Method Static Load Display Shadow Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Without It Projection Screen Diameter 180mm Workplate Size 110*125mm N.W 18kgs Table Travel Longitudinal:10 mm/ Lateral: 10 mm Name 1 Xt-50 Impact Specimen Notch Projector Transport Package Standard Plywood Case Specification 515*224*603mm Trademark CHENJI or OEM Origin China Jinan or Others

Product Description

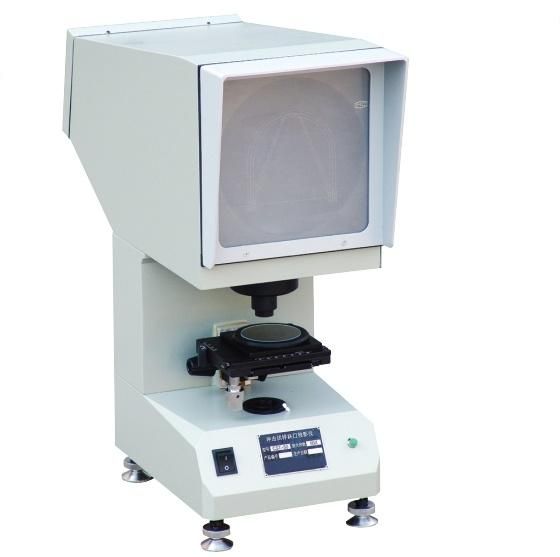

XT-50 Impact specimen notch projector
XT - 50 impact sample projector is my company according to the actual needs of the masses of users and GB/T299-2007 "metal charpy impact test method" to the requirement of impact specimen gap and the development of a dedicated to test the charpy V type and U type gap processing quality of optical instruments, its advantage is easy to operate, intuitive. This instrument is to use optical projection method will be the impact of the test sample V and U gap contour projection on the projection screen after magnified 50 times, and the impact of the projection screen sample V type and U type standard sample contrast figure, to determine whether the gap of the samples tested to be qualified.

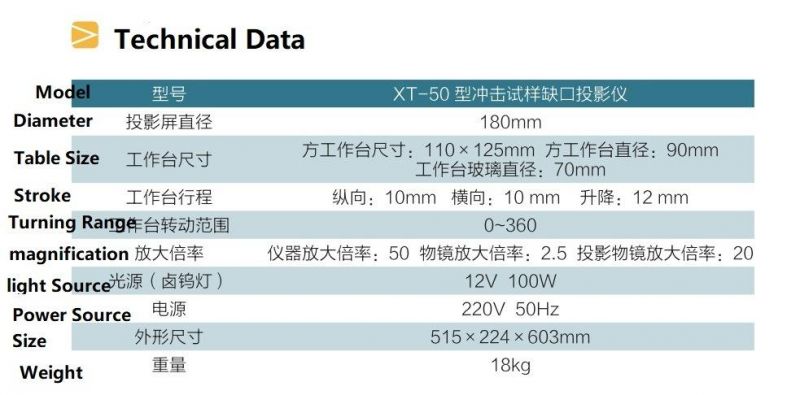

Specification:
