Marshall Testing Machine

Zhejiang Tugong Instrument Co., Ltd.
  • Type：Testing Machine
  • Display：Digital
  • Control：Manual Control
  • Power Source：AC220V
  • Capacity：0-50kn
  • Test Speed：50.8mm,Minute

Base Info

  • Model NO.：STM-1, STM-7, STM-8
  • Environment Temperature：-10ºC-40ºC
  • Transport Package：Standard Export Wooden Packing
  • Trademark：YF
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：5000set,Year

Description

1. Capacity: 0-50KN2. Resolution: 0.1KN3. Twin displacement structure, displacement gauge resolution: 0.01mm4. Environment temperature: -10ºC-40ºC5. Test speed 50.8mm/minute6. Supplied with one breaking head, diameter 101.6mm  or 152.4mmSTM-7 Digital Marshall Stability Tester (With Print)

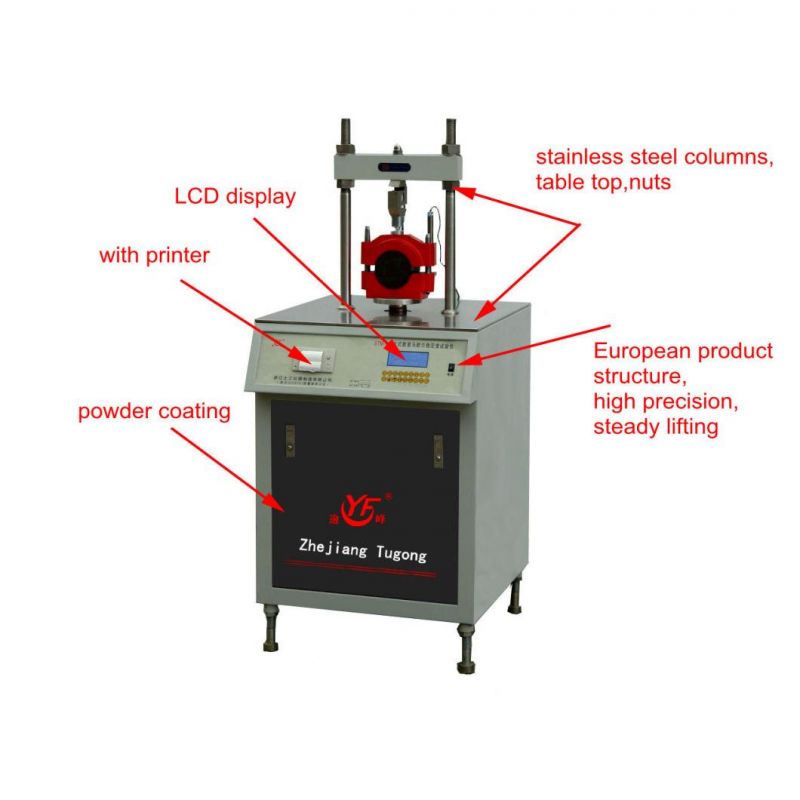

Marshall Testing Machine

Complies to ASTM D15591. Loading: 0-50kN; Loading error: ±0.05% (F.S)2. Displacement: 0-10mm; Displacement error:
± 0.05% (F.S)3. Loading speed: 50.8mm/min.4. Environment: Temperature: -10ºC-35ºC; Relative
Humidity: no higher than 85%5. Supplied with one breaking head, diameter
101.6mm or 152.4mm Features: Equipped with one S shape load cell
and  displacement sensors, peak value
 automatically preserved and printing, the prin
cipal axis automatically fall after printing1. Capacity:0-50kN precision:1%2. Resolution:0.1kN,0.01kN3. Twin displacement structure, displacement
resolution: 0.01mm4. Environment temperature: -10ºC-40ºC5. Test speed 50.8mm/minute6. Supplied with one breaking head, diameter 101.6mm
or 152.4mm Features: Adopt European design, equipped with one S
shape load cell and  displacement sensors, peak
value automatically preserved and printing, the principal
axis automatically fall after printing
Company Information

Zhejiang Tugong Instrument Co., Ltd. is professional manufacturer of computerized, digitized and intelligent testing equipments. Our company has great-leap-forward development in the past thirty years since established in 1981. Company cover an area of 26,680 square meters, have 14 modernized standard workshops, be equipped with complete vehicle, gear, milling, grinding, and boring machine, have high independent research and development ability.
 Why choose us:

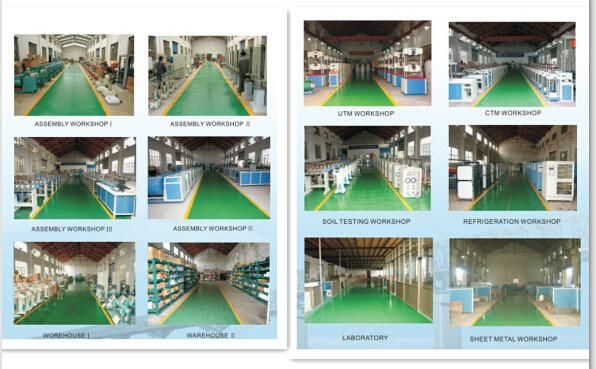

a.Neat and clean workshop
Marshall Testing Machine
b. Good quality control
Marshall Testing Machine
c.Competitive price, save your money.
d.Full range products, offer you one-stop purchase, save your time, save your delivery cost.
Marshall Testing Machine


FAQ

What's the  delivery time?

10-20 working days after receiving full payment.Large machine need 20working days,small machine need 5-10 working days.

What's your payment terms?

T/T in advance,L/C,Western Union.

What's your trade terms?

We accept FOB,CIF,EXW,CNF and LC ect.

What's your services(warranty)?

We will send the user manual together with products,and warranty is 12 months.
