• Model NO.：SF1000
• Charge Current：0-30A
• Max. Cycle Number：9999
• 2V-6V：Customization Is Availabe Upon The Request
• Transport Package：Seaworthy Packing
• Specification：Product size: 550*290*420 mm
• Trademark：DK
• Origin：China
• HS Code：9030849000
• Production Capacity：50000 Pieces,Year

Basic Info.

Model NO. SF1000 Charge Current 0-30A Max. Cycle Number 9999 2V-6V Customization Is Availabe Upon The Request Transport Package Seaworthy Packing Specification Product size: 550*290*420 mm Trademark DK Origin China HS Code 9030849000 Production Capacity 50000 Pieces/Year

Product Description

Description:
.SF1000 is the specialized instrument with the main function of detection, analysis, recording the charge and discharge parameters for various large capacity new energy batteries of 2V, 6V, 8V, 12V. Its automatic charge-discharge loop function can regenerate the early failure batteries. The device can set the different charge steps according to the specific charging curve. SF1000 is the professional detecting and maintenance equipment to keep the new energy battery operate reliably & safely and maximize the service life.

.Application:
It is widely used in detection, regular maintenance for large capacity new energy batteries applied in Electric Tricycles, Electric Vehicles, UPS power supply, Solar Energy Storage, Telecom Base Station, Ships, Electric forklifts, Scissors Aerial Work Platform and many other fields.

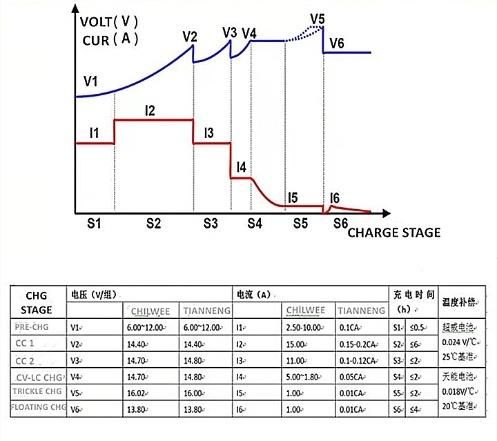

SF1000 can set the different charge steps according to the specific charging curve

(The 12V new energy battery charging curve of CHILWEE and TIANNENG)



.Communication among the host and auxiliary machines
The host machine is with a 7-inch touch screen, which can manage up to 1 host and 5 auxiliaries at the same time, the host and auxiliary machines adopt RF wireless communication, also can use 485 wire communication. The wireless communication keeps the communication distance 100M in the open space.

.9 Work Mode:
    1. Constant current charge
    2. Constant voltage charge
    3. Constant power discharge
    4. Constant resistance discharge
    5. Constant current & voltage charge
    6. Constant current discharge
    7. Auto-loop.
    8. Idle
    9. Stop.


.64 work steps
This instrument can set up to 64 work steps, and the number of cycles can set up to 9999 times at max, which can be used as the battery life tester. The users can set the different charging and discharging step test methods for different batteries.

.Remote operation
Installing the dedicated software of this device, which may remotely operate the devices through network: data setting, data collection, data checking and so on.

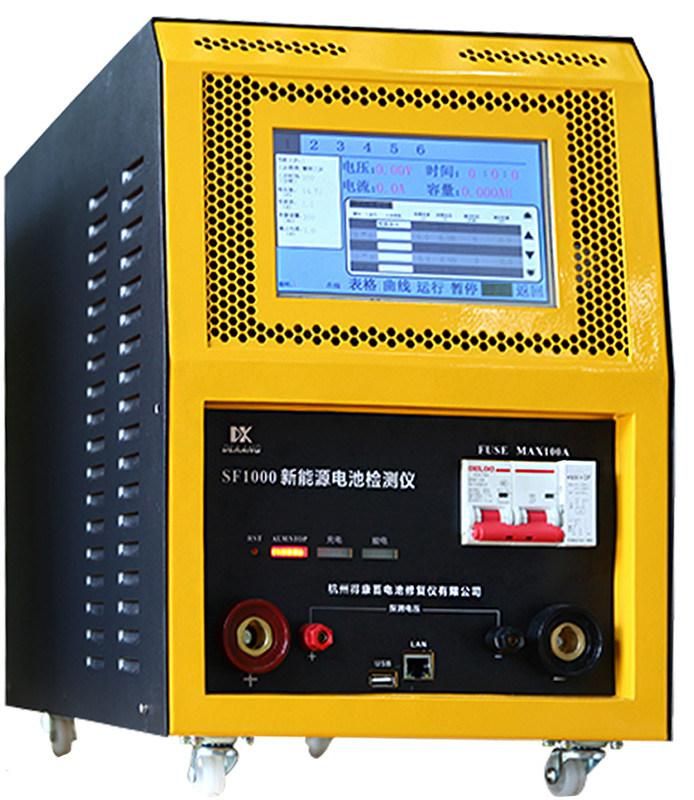

Photo of Host Machine

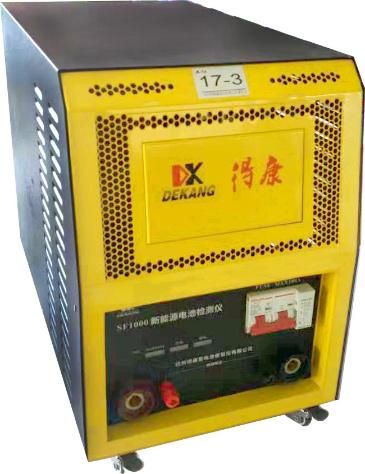

Photo of Auxiliary Machine






 Features:
 .1 set of SF1000 host machine can manage 5 set of auxiliary machines, the unit devices are managed by registration mechanism, and can be managed by the same motherboard with any combination of 1 to 6 devices
.Safety operation The battery access is connected with a double circuit breaker and equipped with a air switch. The battery can be completely disconnected in case of over current, short circuit, over temperature, etc.. RF wireless communication or 485 wire communication between the host and auxiliary machine.. Maximum 64 work steps can be set, the charging and discharging processes with 64 working steps or less can be flexibly set, and the working steps such as Idling, pause and cycle can be set to meet the needs of different working steps. Cycle number can be set to 9999 times at max.
. Remote operation by network, Installing the dedicated software of this device, which may remotely operate the devices through network: data setting, data collection, data checking and so on.. 7" color sensitive touch panel of the host machine, the date setting and operation can be processed via the touch panel.. All English menu operation, clear interface, the screen can display each step of the operation tips, convenient for users to use.. You can view all charging and discharging parameters on the screen in the process of charging and discharging , and it can display the curve of battery charging and discharging voltage in real time. Independent channel status indicator light, you can check the running state of the machine at any time
Technical Specification


Model No.:	SF1000
Supply voltage:	AC 220V±10%
Host availably increased capacity	5 sets of auxiliaries
Communication among the host and auxiliaries	RF wireless or 485 wire communication
Menu Language:	English
Operation Methods:	7" touch panel  and  Remote operation
Current Accuracy:	0.1A
Voltage Accuracy:	0.01V
Discharge Current	1-30A (2V) 1-100A (6V/8V/12V) Constant current adjustable
Charge and Discharge Voltage:	1.7V-2.4V(2V) 5.1V-15V(6V/8V/12V) Constant voltage adjustable
Charge Current	0-30A constant current adjustable
Cycle Number:	1-9999times
Comm. Port:	LAN
Detection Cables:	3 m, 35 mm2 copper cables

Packing Information

Model	Product Size	Package Size	G.W.

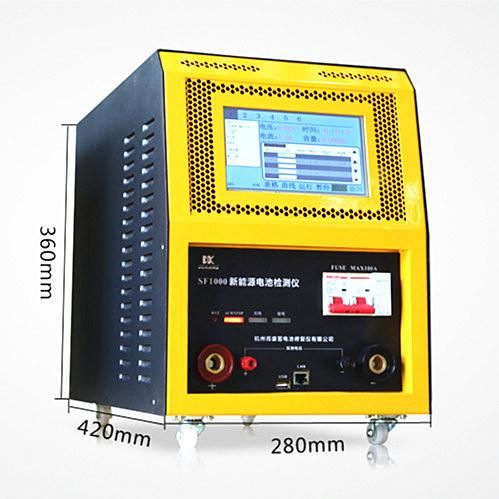

SF1000	420*280*360 mm	690*400*530 mm	21 KG

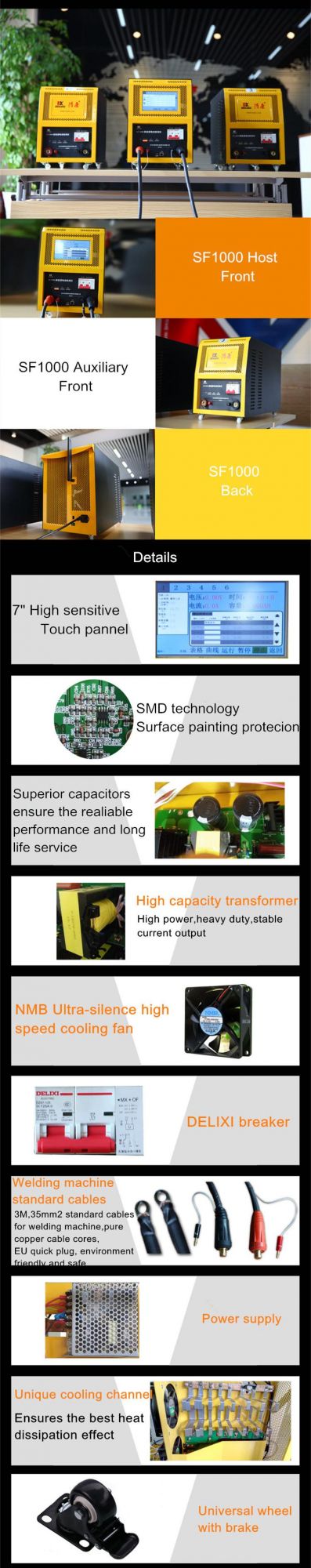

Product details

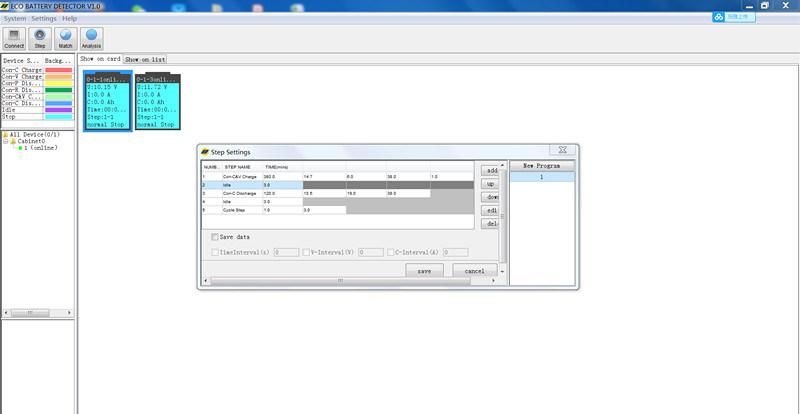

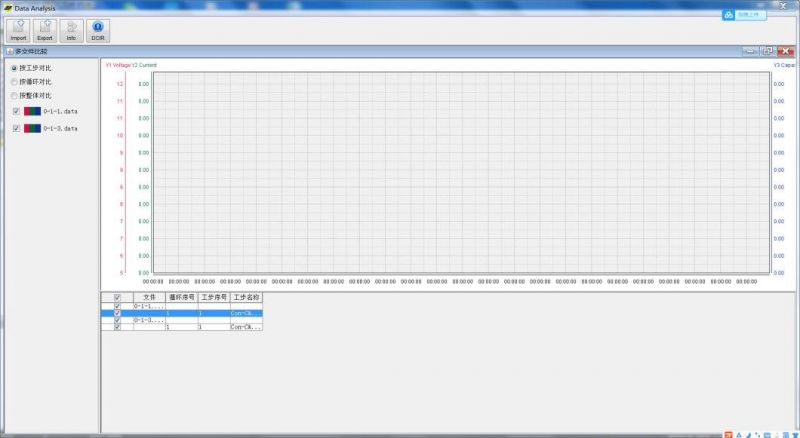

PC Software Interface:







About us:
Founded in 2005, DEKANG is a high-tech enterprise involved in researching & development, production and sales of Storage Battery Detection Equipment, Charging Station, Shared Mobility Solution. We provide the clients with the complete solution of storage batter service.

Products Category:
Battery Charging & Discharging Detector
Battery Detection and Recovery Equipment
E-Bike/E-scooter Charging Station
Shared Battery Charging & Swapping System
Intelligent Lithium Batteries
Battery-swapping E-bike/E-scooter and so on.

Why choice us?

1. Beginning from 2005, we have achieved the leadership of our industrial
2. Over 15 years of experiences
3. Powerful function and superior performance
4. Professional and strong R&D team.
5. Technical leadership and advantage
6. Advanced production technology and automatic assembly line
7. Market verification and specialized users approval from over 50 countries
8. Rich experience in market operation
9. Professional after-sale service, lifelong after-sale service provided

Delivery
Sample order dispatched by express via DHL, FEDEX,TNT,UPS or any other express services you prefer to, also we can coordinate to send it to other agreed address in China for loading with your convenience

Normal order delivered by sea or air as per your instructions.

Warranty:
12-month warranty, lifelong after-sale service and free technology service.
