• Model NO.：STZHS-5
• Loading Method：Electric
• Display：Digital
• Control：Dial Gauge
• Weight：220kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stzhs-5 Intelligent Concrete Impervious Apparatus
• Working Pressure：4MPa
• Specimens：6 Pieces Specimens Accepted for One Test
• Working Voltage：AC220V
• Features：Stainless Steel Table and Water Channel, with a Wa
• Transport Package：Wooden Case
• Specification：0.63CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STZHS-5 Loading Method Electric Display Digital Control Dial Gauge Weight 220kgs Power Source AC220V Oil Cylinder Position No Product Name Stzhs-5 Intelligent Concrete Impervious Apparatus Working Pressure 4MPa Specimens 6 Pieces Specimens Accepted for One Test Working Voltage AC220V Features Stainless Steel Table and Water Channel, with a Wa Transport Package Wooden Case Specification 0.63CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

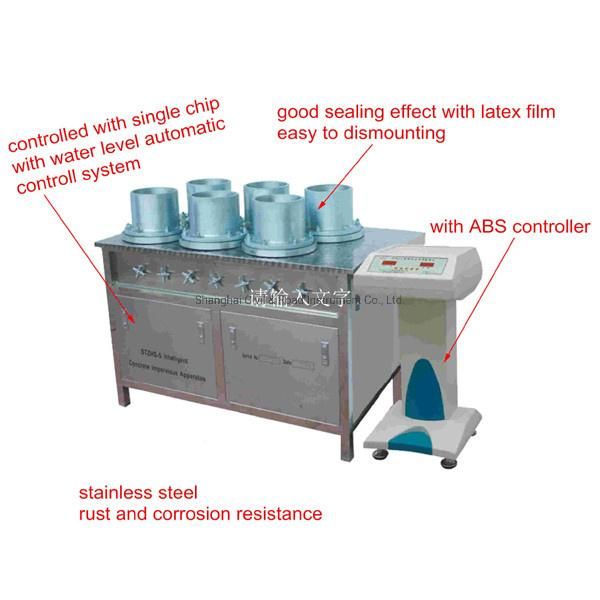

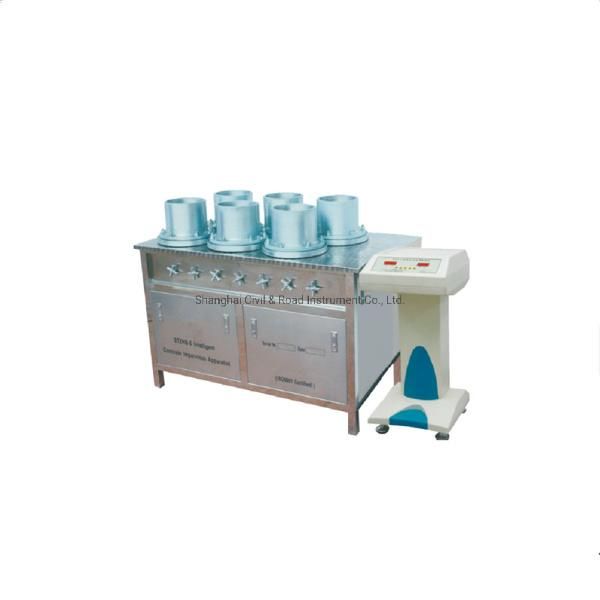

STZHS-5 Intelligent Concrete Impervious Apparatus(Whole crust stainless steel)



This apparatus is used to determine the depth of penetration of the water into the concrete (impermeability) under known time and pressure. the unit accepts concrete cubic, cylindrical or prismatic specimens having "max. dimensions" of 150x150x150 mm.

The specimen is put into the test chamber, clamped with suitable flanges and round gaskets. A known water pressure is applied on the specimen's surface for a known time. A manometer checks constantly the applied water pressure.
Technical Specifications:

Product Name	Intelligent Concrete Impervious Apparatus
Model	STZHS-4
Motor Power	90W 1390r / min
Power	380V-50HZ
Working pressure	4Mpa/cm2
Number of specimen	6pcs
Geometry of the molding	175x185x165mm
Working methods	automatic constant pressure (digital display: automatic constant pressure and automatic boost)
The test geometry (also known as the main mode)	Upper mouth diameter: 174 mm Lower mouth diameter: 185 mm Height: 165mm
Plunger pump parameters	Flow rate :0.11L / min  Pump plunger diameter: 12mm  Stroke :10mm Reciprocating frequency :154 times / min
Dimensions	960X650X1000mm
Weight	220Kg
