Test Instrument

ISO9626 Syringe Needle Test Medical Needle Toughness Tester for Laboratory Test

Pubtester Instruments Co., Ltd.
  • Accuracy Grade:0.5
  • Test Frequency:0.5Hz
  • Bending Angle:15 Degree;, 20 Degree;, 25 Degree;
  • No. of Test:Bi-Directional Force 20 Times
  • Nominal Specifications:0.2~3.4mm
  • Bending Distance:0.1mm

Base Info

  • Model NO.:MTT-01
  • Transport Package:Vneer Case
  • Trademark:Pubtester
  • Origin:Jinan, Shandong
  • Production Capacity:30 Sets,Quarter


Basic Info.

Model NO. MTT-01 Transport Package Vneer Case Trademark Pubtester Origin Jinan, Shandong Production Capacity 30 Sets/Quarter

Product Description

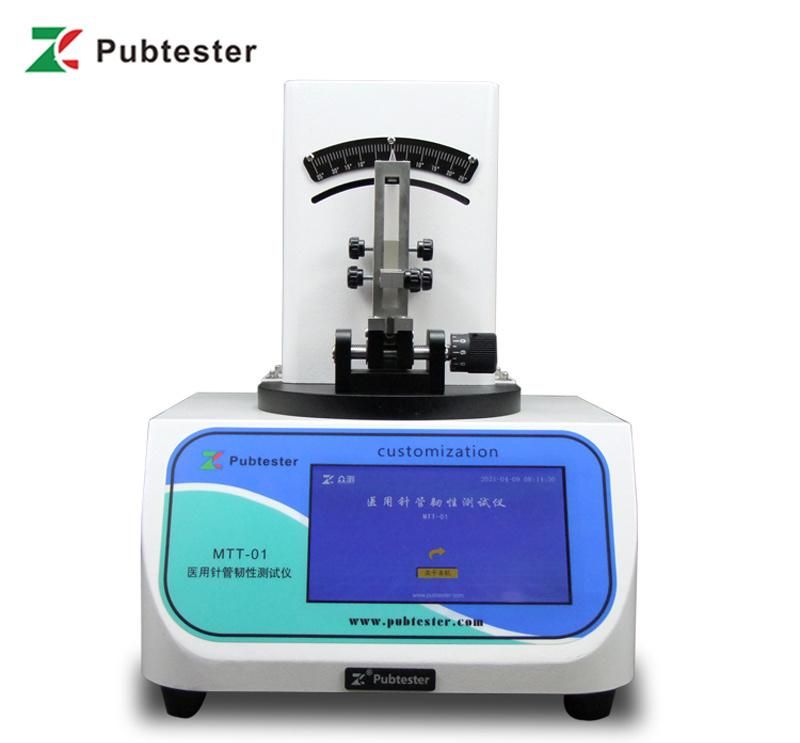

MTT-01 Syringe Needle Test Medical Needle Toughness Tester
MTT-01 Syringe Needle Test Medical Needle Toughness Tester is suitable for measuring the toughness of human intradermal, subcutaneous, muscle and intravenous injection needle tubes and other rigid stainless steel needle tubes for medical equipment.

ISO9626 Syringe Needle Test Medical Needle Toughness Tester for Laboratory Test

Technical Features
  • 7-inch color touch screen with intelligent data processing functions providing users with a comfortable and smooth operating experience
  • Concise and intuitive operation interface, convenient user-defined test functions, and complete data analysis and reporting functions
  • Automatic calibration, simple and convenient operation
  • Brand-new UI interface design, intuitive operation interface, greatly improving the operation experience
  • Support a variety of specifications sample test, normal wall, thin wall, ultra-thin wall can freely choose
  • With automatic data storage, power-off automatic memory function
  • Powerful data storage function, which can store more than 6000 data
  • The computer software fully complies with the requirements of GMP "Computerized System", with functions such as user management, authority management, and data audit trail.

Test Principle
Fix one end of the needle tube on the fixture, adjust the prescribed span and select bending angles as following, 25° for normal wall, 20° for thin wall, and 15° for ultra-thin wall.
Apply a sufficiently large force at the specified span position, exert force bi-directionally 20 times at a frequency of 0.5 Hz to observe the breakage of the needle tube.
Basic ApplicationsExtended Applications
Disposable sterile injection needleInfusion needle
Prefilled injection needleNeedle tube

Technical Specifications
Test Frequency0.5Hz ± 0.025Hz
Bending Angle15°, 20°, 25°
No. of TestBi-directional force 20 times
Needle Tube SpecificationNormal wall, thin wall, ultrathin wall optional
Nominal Specifications0.2~3.4mm
Bending DistanceAccuracy: ±0.1mm
Instrument Dimension340mm (L) x 230mm(W) x 320mm(H)
Net Weight12Kg
Power Supply220V 50Hz

ISO9626-1991, GB/T 18457-2015, GB/T 15811-2016

Standard configuration: Instrument, micro printer, touch screen, test fixture.

ISO9626 Syringe Needle Test Medical Needle Toughness Tester for Laboratory Test
ISO9626 Syringe Needle Test Medical Needle Toughness Tester for Laboratory Test


Are you a manufacturer or trading company?
We are the manufacturer and trading combo, which specialize in material testing instruments such as plastic package, medical device, facial mask, protective clothing and pharmaceutical package, etc. We located in Jinan, Shandong, China.

Do you have any certificate?
We have obtained CE certificate, passed ISO 9001, IPMS management system certificates, and have 18 utility model patents and 4 software copyright certificates.

How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.

Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.

How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.

How long does the delivery time?
For the regular machine, 3-5 working days. For the customized one, 30 days or so.
