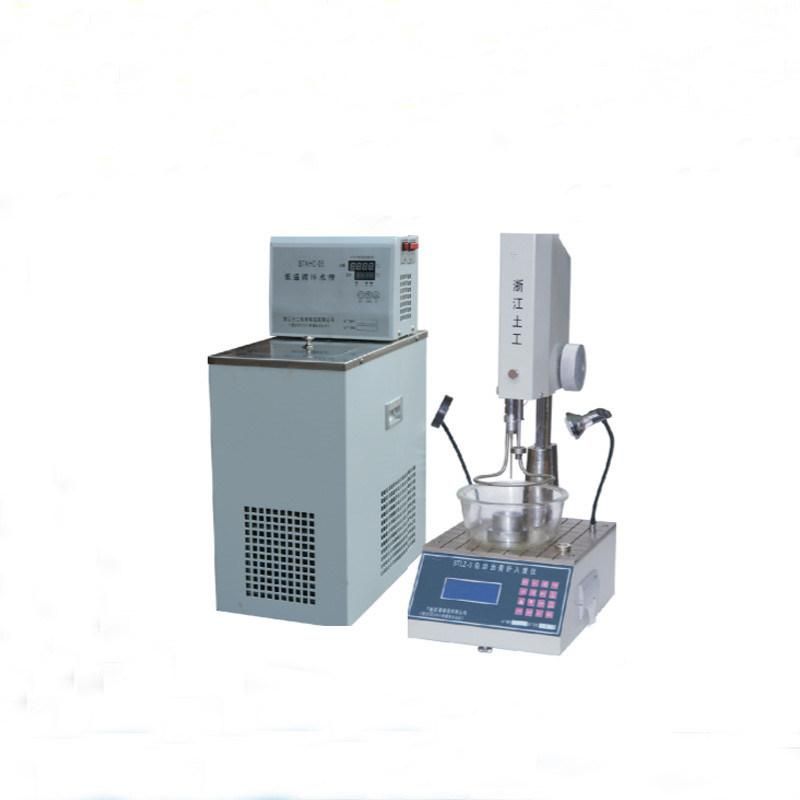

Stlz-5D Automatic Digital Penetrometer with Cooling System
Shanghai Civil & Road Instrument Co., Ltd.- After-sales Service：24 Hours Online Support
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Automatic Asphalt Penetrometer Pivot
- Maxcapacity：No
Base Info
- Accuracy Grade：1
- Load Way：Digital Display
- Loading Method：No
- Display：Digital
- Control：No
- Weight：49
- Power Source：AC220V
- Oil Cylinder Position：No
- Product Name：Stlz-5D Automatic Digital Penetrometer with Coolin
- Complies to：ASTM D5, Aashto T49
- Digital Display of：Penetration Depth and Time Set
- Penetration Needle：2.5g, Hardened Steel, with Shaft Suitable for The
- Plunger：97.5g
- Specimen Container：55(Dia)X35mm
- Penetration Measuring Resolution：0.01mm
- Max. Penetration Depth：50mm
- Water Bath Foundation：Is Electrically Elevated
- Needle Penetration：Default Time Is 5 Seconds, 1-99 Seconds Are Availa
- Temperature Control Accuracy：0.1c
- Working Temperature Is Between：5c-70c
- Transport Package：Wooden Case
- Specification：52X44X94cm
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Accuracy Grade 1 Load Way Digital Display Loading Method No Display Digital Control No Weight 49 Power Source AC220V Oil Cylinder Position No Product Name Stlz-5D Automatic Digital Penetrometer with Coolin Complies to ASTM D5, Aashto T49 Digital Display of Penetration Depth and Time Set Penetration Needle 2.5g, Hardened Steel, with Shaft Suitable for The Plunger 97.5g Specimen Container 55(Dia)X35mm Penetration Measuring Resolution 0.01mm Max. Penetration Depth 50mm Water Bath Foundation Is Electrically Elevated Needle Penetration Default Time Is 5 Seconds, 1-99 Seconds Are Availa Temperature Control Accuracy 0.1c Working Temperature Is Between 5c-70c Transport Package Wooden Case Specification 52X44X94cm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description
STLZ-5D Automatic digital Penetrometer with cooling system| Product name | STLZ-5D Automatic digital Penetrometer with cooling system |
| Complies to | ASTM D5, AASHTO T49 |
| Digital display of | penetration depth and time set; |
| Penetration Needle | 2.5g, hardened steel, with shaft suitable for the plunger; |
| Plunger | 97.5g |
| Specimen container | 55(dia)×35mm |
| Penetration measuring resolution | 0.01mm |
| Max. penetration depth | 50mm |
| Water bath foundation | is electrically elevated. |
| Needle penetration: default time is | 5 seconds, 1-99 seconds are available for special requirement; |
| Temperature control accuracy | 0.1ºC |
| Working temperature is between | 5ºC-70ºC |
