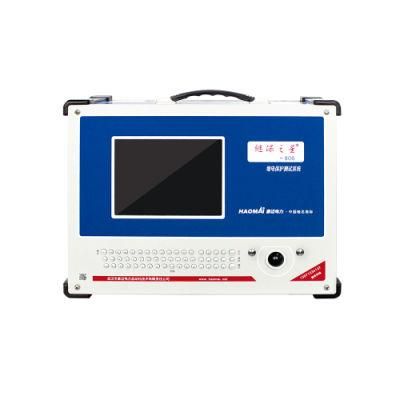

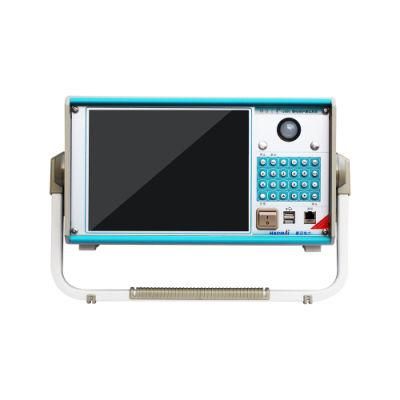

China Supplier Cheap Price Version Three Phase Relay Protection Test Set
Haomai Electric Power Automation Co., Ltd.- After-sales Service：on-Site Training
- Warranty：3 Years
- Current Output Range：0-40A
- AC Voltage Output Range：0-120V
- Output Precision：0.5 Degree
- 1 Phase Max Output：0-120A
Base Info
- Model NO.：HME-702
- Frequency Range：10-1000Hz
- Harmonic Time：2-20
- DC Current Output：-10A - +10A
- Phase Voltage Output：0-120V
- Max Voltage Output：240V
- DC Voltage Output：-160V - +160V
- Binary Input：10
- Binary Output：8
- Binary Input Isolation：0.1ms
- Transport Package：Standard Export Wooden Package
- Specification：400*300*180mm
- Trademark：HME-702
- Origin：Hubei China
- HS Code：9030390000
- Production Capacity：100px,Week
Description
Overview
Product Description
Setting Range
3-Phase AC(L-N)
3x0…40A
1-Phase AC(LL-LN)
1x0…120A
DC(L-N)
3x…±10A
3-Phase AC(L-N)
3x420VA At 40A
Power
1-Phase AC(LL-LN)
1x900VA At 120A
DC(L-N)
3x120VA At 10A
Accuracy
AC: ≤0.2%
DC: ≤0.5%
Company Profile
Certifications
Our Advantages
